BIFFI F02 - Drive and Control Unit

DRIVE AND CONTROL UNIT
33
© Copyright by BIFFI Italia. All rights reserved.
A !@#$ INTERNATIONAL LTD. COMPANY
F02 Quarter-turn Electric Actuators
instruction and operating manual

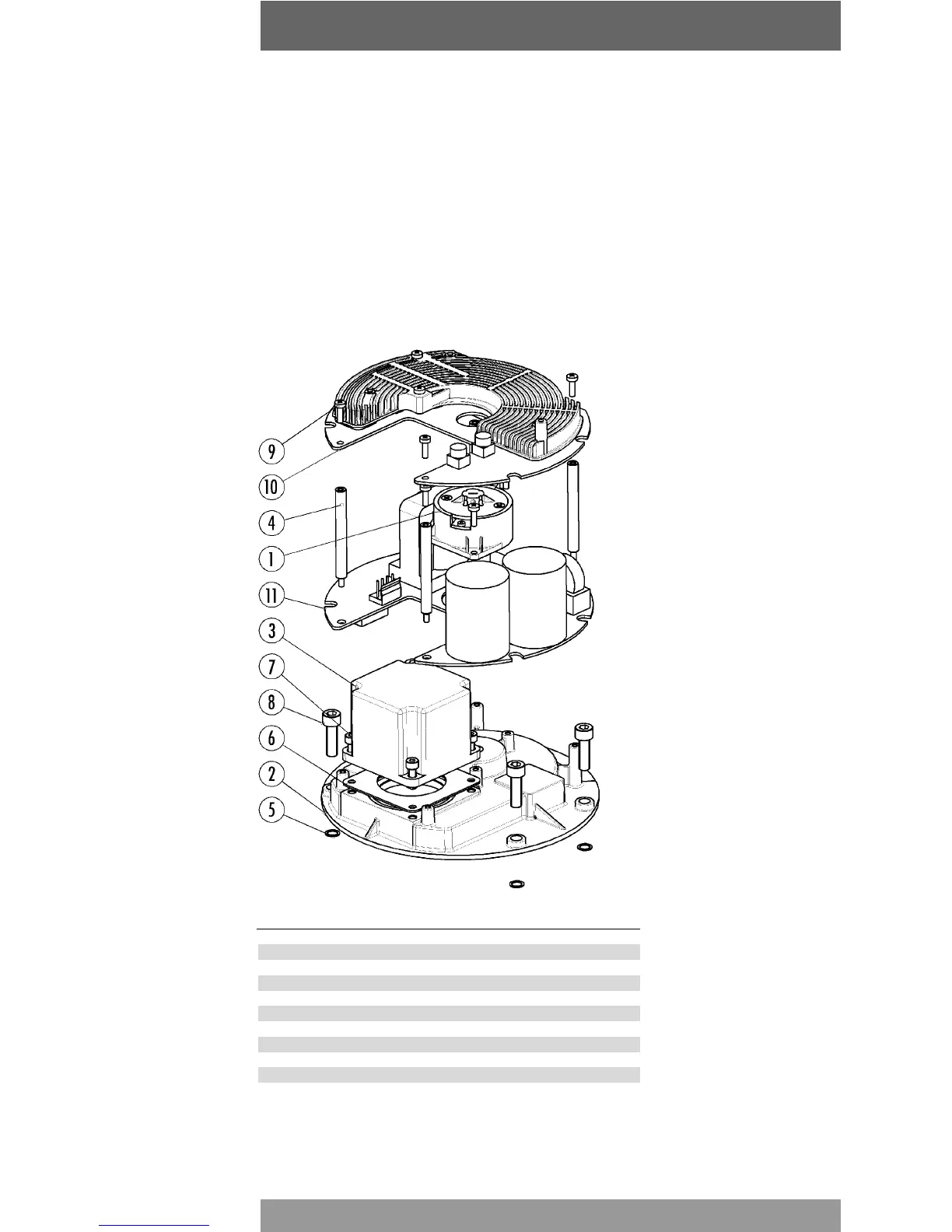

Pos. Description Q.ty
1 Sensor assembly 1
2 Motor support flange 1
3 Motor HS200-2221-0210-AG04 1
4 Spacer 4
5 Washer 4
6 Motor gasket 1
7 HSHC screw UNI5931- M4x10 4
8 HSHC screw UNI5931- M6x20 4
9 Screw pz type M3x10 UNI 7687 7
10 Control/drive card assembly 1
11 Power supply card 150W max 1
• Recommended
