34
© Copyright by BIFFI Italia. All rights reserved.
A !@#$ INTERNATIONAL LTD. COMPANY
F02 Quarter-turn Electric Actuators
instruction and operating manual
F02 MODEL 125

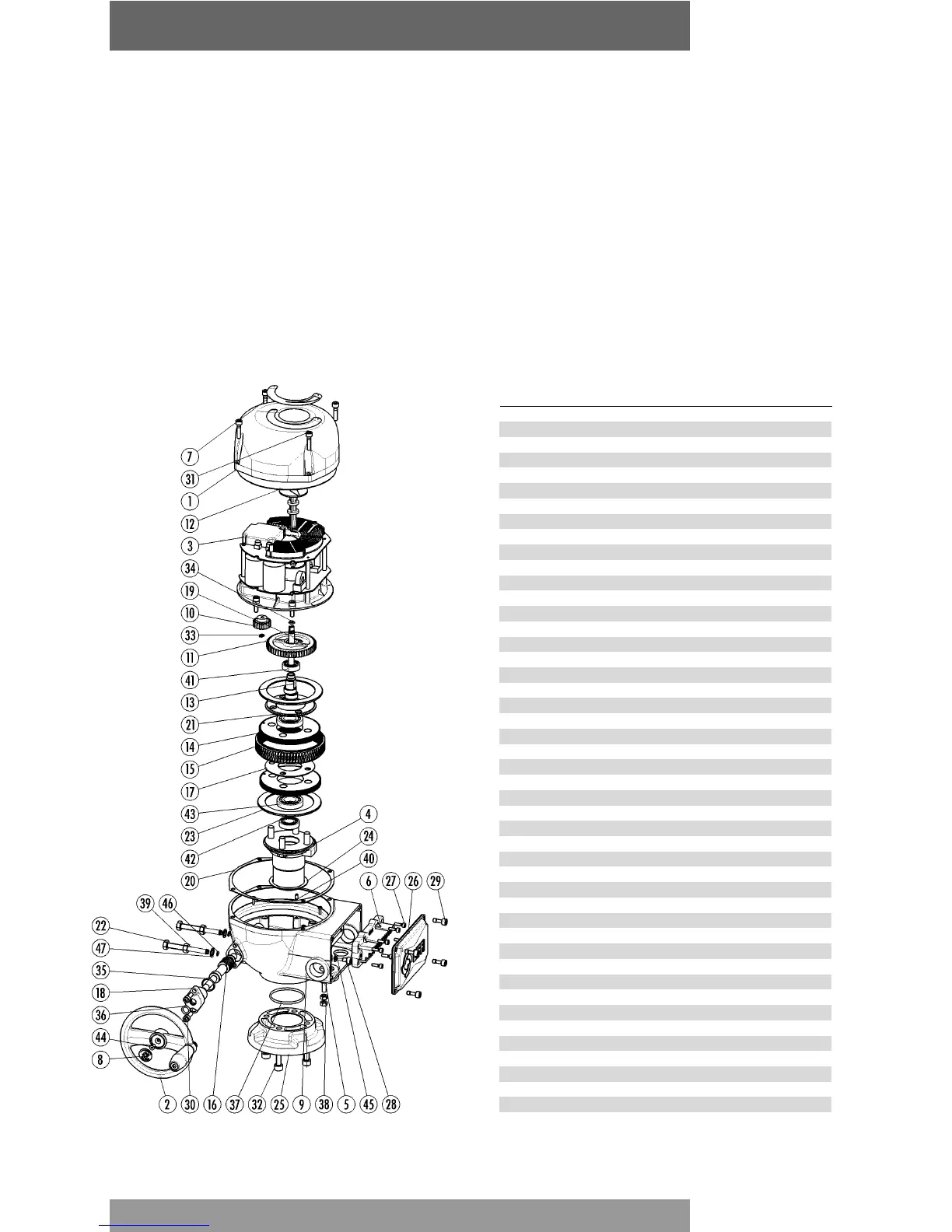

GENERAL ASSEMBLY
Pos. Description Q.ty
1 Cover assembly 1
2 Handwheel 1
3 Drive and control unit 1
4 Output drive assembly 1
5 Earth stud 1
6 Terminal block 1
7 Position label 1
8 Plug 1
9 Standard housing 1
10 Motor pinion 1
11 Wheel 1
12 Indicator 1
13 Eccentric 1
14 Planocentric gear 2
15 Fixed annulus 1
16 Manual worm shaft 1
17 Spacer 1
18 Worm shaft flange 1
19 Indicator shaft 1
20 Cover gasket 1 •
21 Ring for pins allignement 1
22 Stopper 2
23 Ring 2
24 Sliding ring 1
25 Base plate ISO 5211 /F07-F10 1
26 Terminal block cover 1
27 HSHC screw UNI5931- M4x14 7
28 ESH screw UNI5931 - M6x8 1
29 Anti loosening screw M6x16 4
30 HSHC screw uni5931- M6x18 2
31 HSHC screw uni5931- M6x25 4
32 HSHC screw uni5931- M8x20 4
33 Snap ring for shaft d.6 1
34 O-ring DI=6.07/W=1.78 1 •
35 O-ring DI=18.77/W=1.78 1 •
36 O-ring DI=9.19/W=2.62 1 •
37 O-ring DI=52.07/w=2.62 1 •
38 Nut UNI5588-M6 2
39 Nut UNI5588 M8 2
40 Dowel pin UNI-EN 22338 M4x8 type B 1
41 Ball bearng type 6001 1
42 Ball bearing type 16002 1
43 Ball bearing type 16004 2
44 HSSC screw UNI5933 M4x10 1
45 Anti-loosening washer UNI 8842-J6 2
46 Ring RW 7 UNI7433 2
47 Seal washer 8.3 2
• Recommended
