F02 Quarter-turn Electric Actuators
instruction and operating manual
Two studs, one internal and one external, are provided to meet all local electric and safety
regulations.
Terminate the ground connections at least to the external stud marked GROUND.
Connect the motor supply cable previously sized in accordance with:
- the absorbed current correspondent to the actuator nominal torque with the torque limiting
device set at 100 percent (see the test certificate attached to the actuator)
- the applicable plant and safety norms.

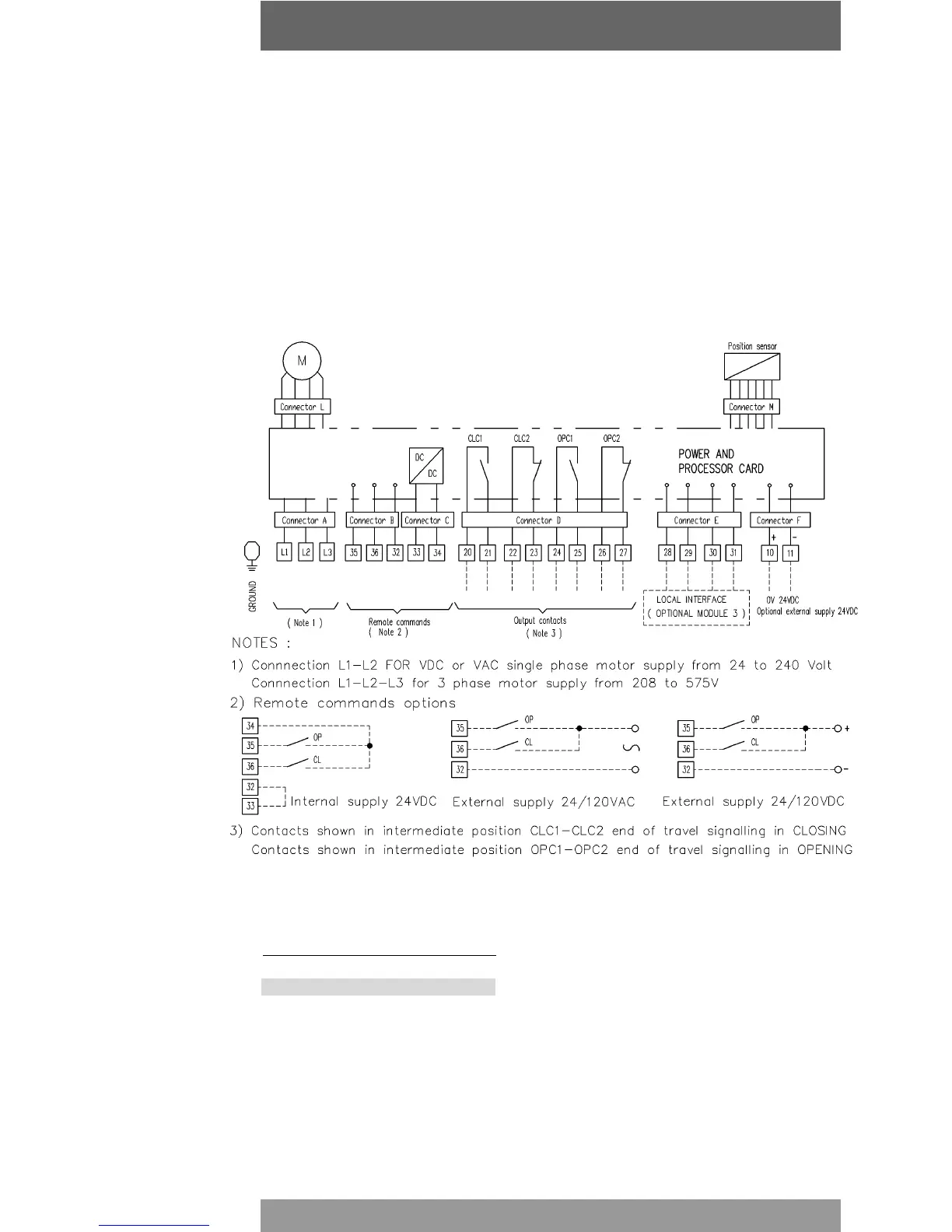

4.11 Base wiring diagram
Output contact rating
• 5A @ up to 240 VAC
• 5A @ up to 30 VDC
• 0,5A @ 120 VDC
