F02 Quarter-turn Electric Actuators
instruction and operating manual
F02 MODEL 500

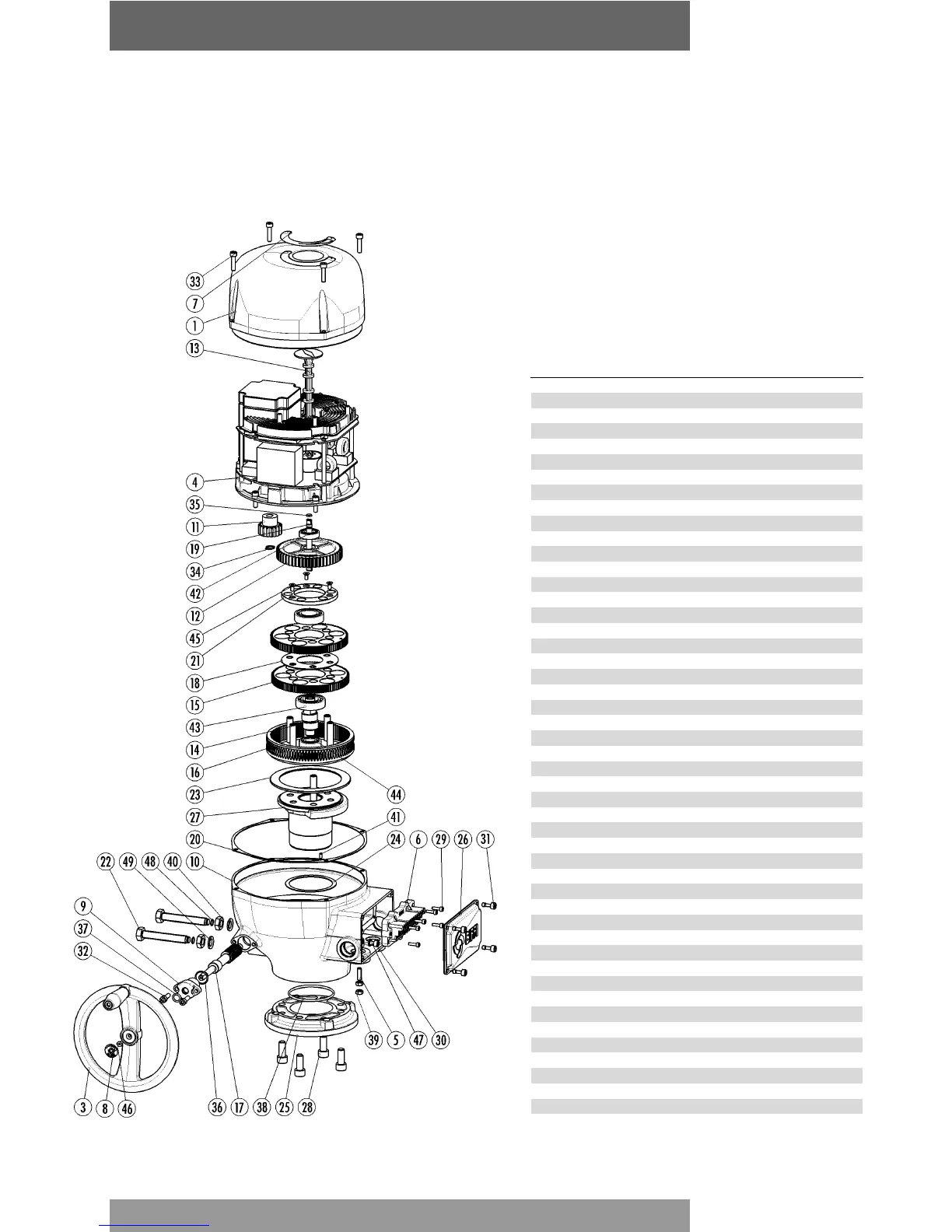

GENERAL ASSEMBLY
Pos. Description Q.ty
1 Cover assembly 1
3 Handwheel 1
4 Drive and control assembly 1
5 Earth stud 1
6 Terminal block 1
7 Position label 1
8 Plug 1
9 Worm shaft flange 1
10 Housing 1
11 Motor pinion 1
12 Wheel 1
13 Indicator 1
14 Eccentric 1
15 Planocentric gear 2
16 Fixed annulus 1
17 Manual worm shaft 1
18 Spacer 1
19 Indicator shaft 1
20 Cover gasket 1 •
21 Ring for pins allignement 1
22 Stopper 2
23 Ring 1
24 Sliding ring 1
25 Base plate ISO 5211 F10-f12 1
26 Terminal block cover 1
27 Output drive assembly 1
28 HSHC screw UNI5931- M10x25 4
29 HSHC screw UNI5931- M4x14 7
30 ESH screw UNI5931 - M6x8 1
31 Anti loosening screw M6x16 4
32 HSHC screw UNI5931- M6x20 2
33 HSHC screw UNI5931- M6x25 4
34 Snap ring for shaft d.12 1
35 O-ring DI=6.07/W=1.78 1 •
36 O-ring DI=18.77/W=1.78 1 •
37 O-ring DI=10.77/W=2.62 1 •
38 O-ring DI=69.52/W=2.62 1 •
39 Nut UNI5588-M6 20
40 Nut UNI5589-M12 2
41 Dowel pin UNI-EN 22338 M4x8 type B 1
42 Ball bearing type 16002 1
43 Ball bearing type 6005-lt 2
44 Ball bearing type 6202 1
45 HSSC screw UNI5933 M5x10 3
46 HSSC screw UNI5933 M4x10 1
47 Anti-loosening washer UNI 8842-j6 1
48 Ring RW 10 UNI7433 2
49 Seal washer 12.3 2
• Recommended
