A.7.2 Identication of Entries
The ICON3000 electric actuator as it pertains to this appendix can be equipped with up to
5 conduit entries (3 are standard; the 4th and 5th are supplied upon request).
With reference to Figure A-2, the thread form/size for each entry is as follows:
Table A-4. Identication of Entries

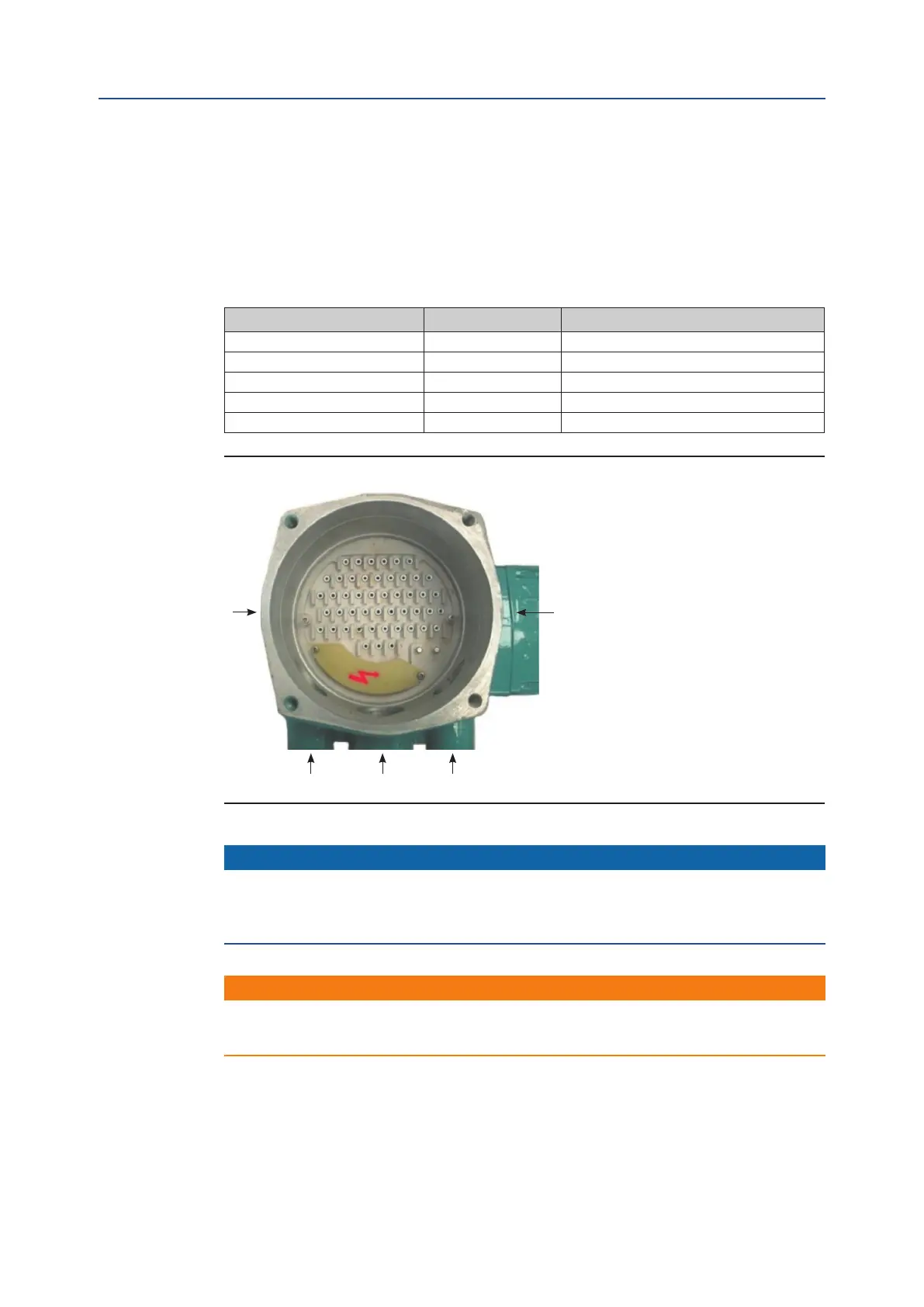

Figure A-2 Electric Actuator
Entry NPT size Metric size ISO 965 (alternative)
1 1" M32x1.5
2 1 1/2” M40x1.5
3 1" M32x1.5
4 (optional) 3/4” M25x1.5
5 (optional) 3/4” M25x1.5
4
1 2 3
5
NOTICE
When alternative entries according to ISO 965 are used, indication of the dimensions
is imprinted on the adapter bush or directly on the housing when ISO 965 entries are
obtained by machining the housing.
 WARNING
Unused entries may remain unmachined or must be plugged with a certied plug suitable
for the subject environment.
