BIFFI ICON-030 - Instructions for Proper Installation; Marking

December 2019
147
Installation, Operation and Maintenance Manual
VCIOM-08500-EN
Appendix
Appendix
D.2 Instructions for Proper Installation
 WARNING
Before installation, it is mandatory to check if the nameplate associated with the
extension for additional entry species the appropriate degree of protection and ambient
temperature limits as requested by the rules applicable to the plant/location where the
ICON3000 is installed.
Installation in environments with the presence of an explosive atmosphere not covered by the
specied grade of protection, or in environments that could reach a temperature higher than
the maximum specied on the label, will invalidate the safety warnings and the warranty.
NOTICE
Check that the label (as shown by the example Figure D-4) is xed to the unit and is complete
with all the appropriate information.
D.2.1 Marking

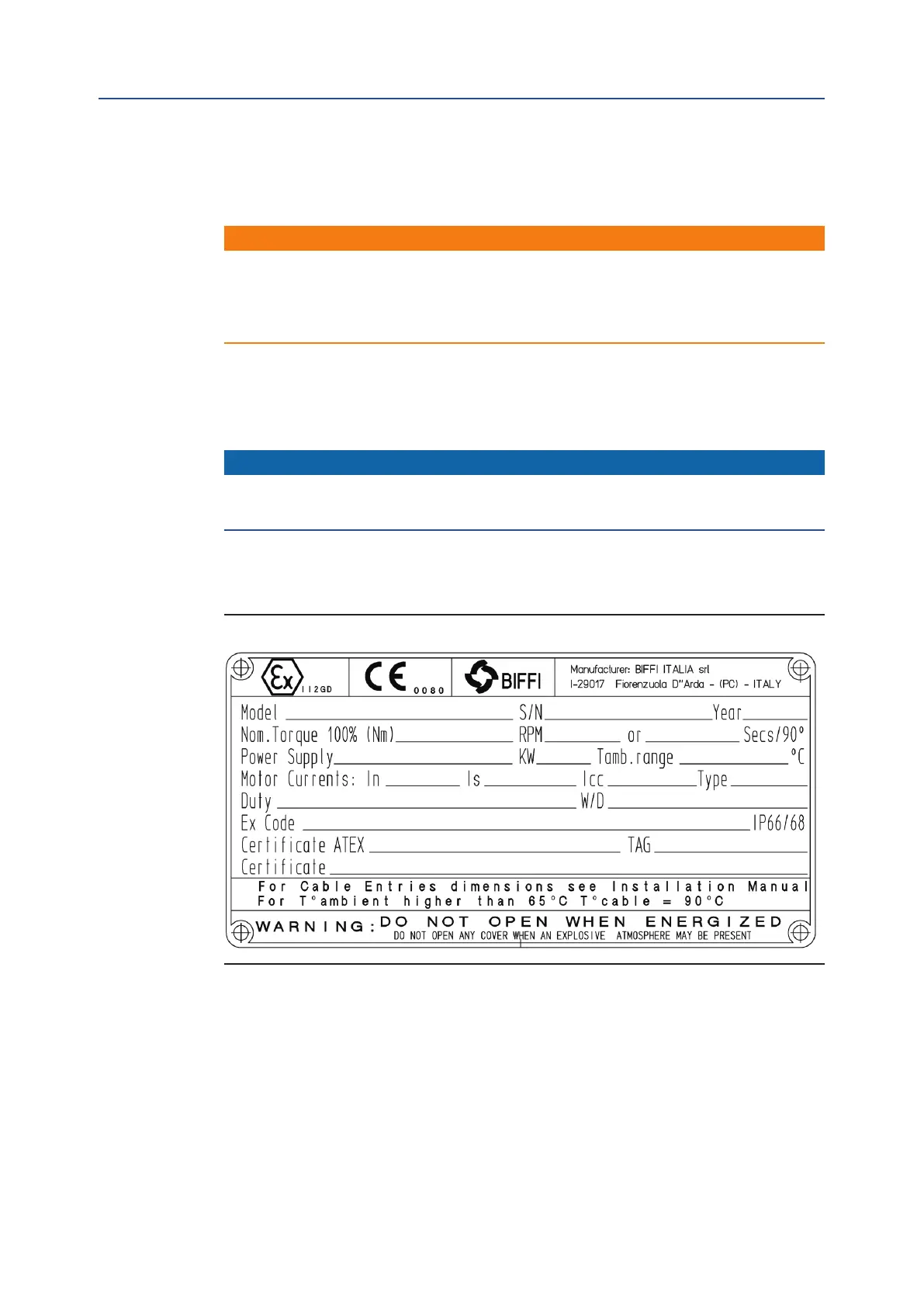

Figure D-4 Template of the label for ICON3000 / ICON3000AD / ICON3000LP
IECEx INE XX.ZZZZ = IECEx reference certicate (CoC)
XX ATEX ZZZZ = ATEX reference certicate
0080 = Notied body for ATEX quality assurance (INERIS)
II = Group II (surface industries)
2 = Category 2 apparatus
G = Explosive atmospheres caused by gas, mists, or vapors
D = Explosive atmospheres caused by gas dusts
IP66/68 = Degree of protection
