Section 3: Installation

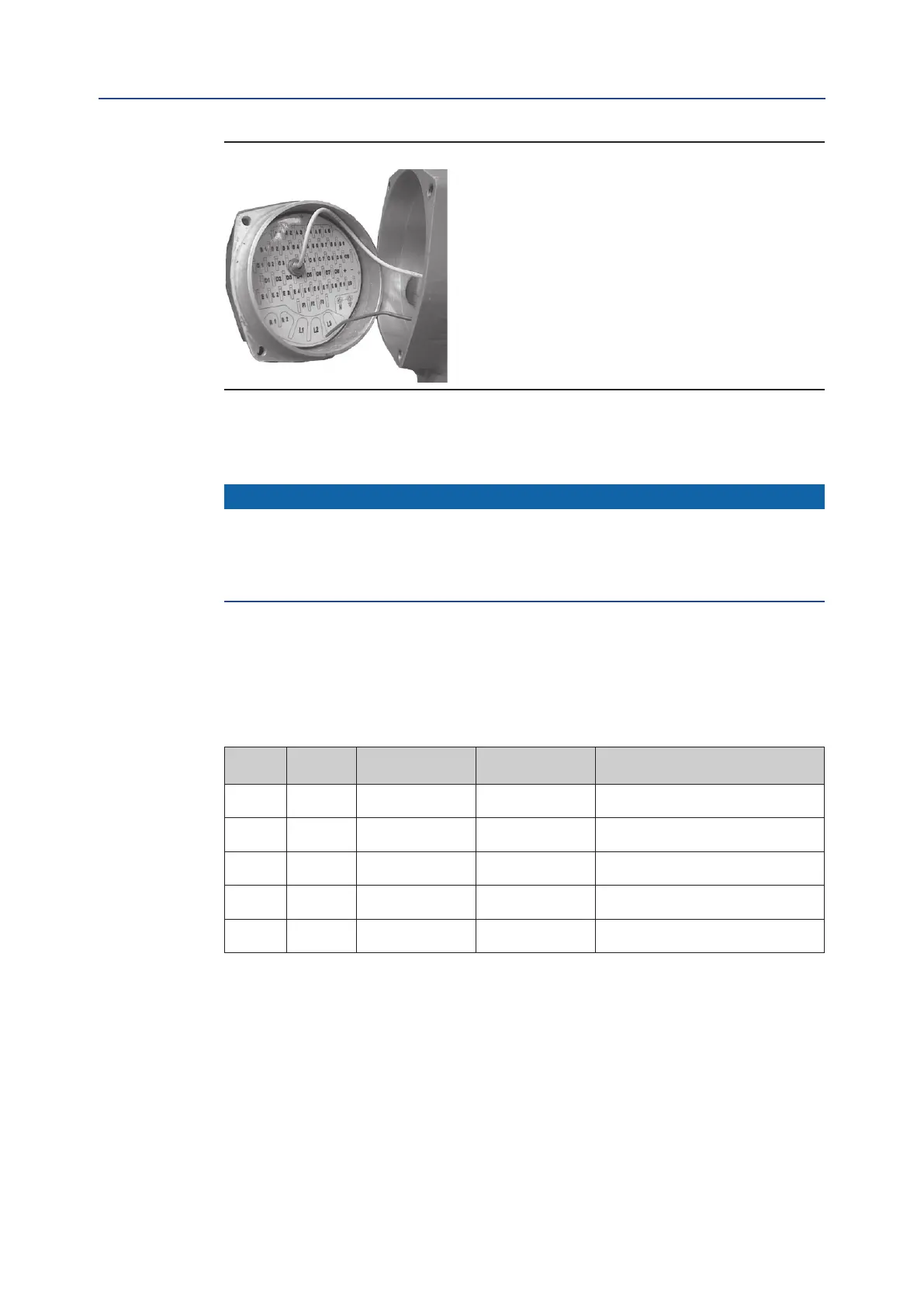

Figure 26
3.9 Instructions For Explosion-proof Enclosures
NOTICE
The Bif ICON3000 electric actuator shall be installed and maintained according to the applicable
rules regarding electrical installations in hazardous area (other than mines) classied as zone 1
(gas); for example: EN 60079-10 (hazardous area classication), EN 60079-14 (electrical
installation), EN 60079-17 (maintenance), and/or other national standards.
During the dismantling and subsequent reassembling of the explosion-proof enclosures
(covers, cable glands, joints), be careful to restore these enclosures back to their original
condition to maintain their integrity. In particular, ensure that the joint surfaces of all
enclosures are spread with a lm of recommended grease (see Section 4, Lubrication).
Table 7.
Model
Motor
cover
Terminal
enclosure cover
Local interface
cover
Material
010 M8x30 M10x30 M10x35
AISI 316/ASME B16.11 A182-F316
(yield strength ≥ 450 N/mm² (65,266 psi)
020 M8x30 M10x30 M10x35
AISI 316/ASME B16.11 A182-F316
(yield strength ≥ 450 N/mm² (65,266 psi)
030 M10x35 M10x30 M10x35
AISI 316/ASME B16.11 A182-F316
(yield strength ≥ 450 N/mm² (65,266 psi)
040 M10x35 M10x30 M10x35
AISI 316/ASME B16.11 A182-F316
(yield strength ≥ 450 N/mm² (65,266 psi)
050 M12x45 M10x30 M10x35
AISI 316/ASME B16.11 A182-F316
(yield strength ≥ 450 N/mm² (65,266 psi)
