December 2019
162
Installation, Operation and Maintenance Manual
VCIOM-08500-EN
Appendix
Appendix

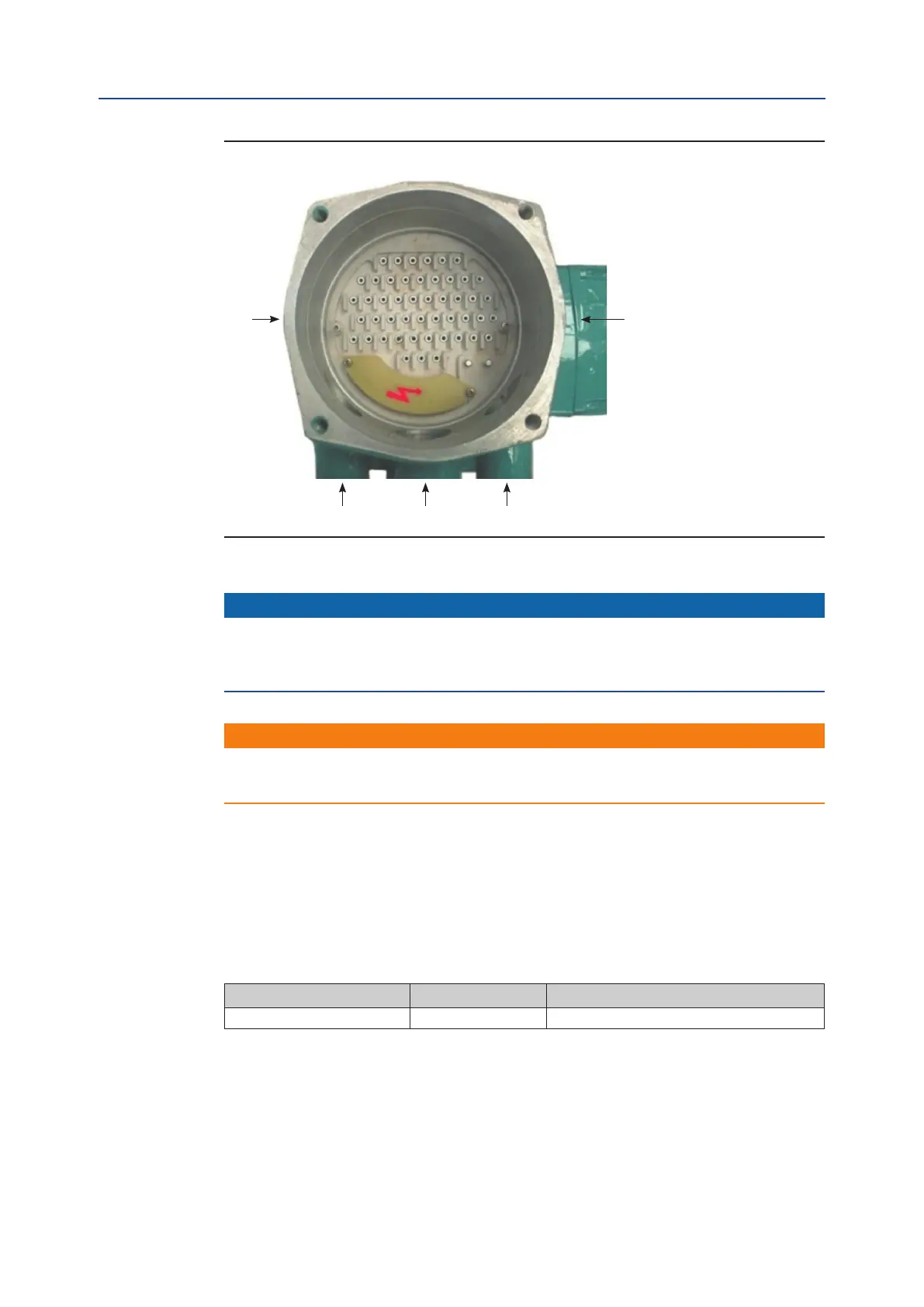

Figure E-5 Base Actuator
NOTICE
When alternative entries according to ISO 965 are used, indication of the dimensions
is imprinted on the adapter bush or directly on the housing when ISO 965 entries are
obtained by machining the housing.
WARNING
Unused entries may remain unmachined or must be plugged with a certied plug suitable
for the subject environment.
E.7.2.2 Base Actuator with Extension [A] on the Control Compartment
Extension [A] provides an additional entry for a cable or conduit connection or for
connection of an external ATEX-certied apparatus.
With reference to Figure E-6, the thread form/size for the entry is as follows:
Table E-5.
Entry Standard size Optional
6 M25x1.5 3/4" NPT
