KBF / KBF-UL + KMF (E6) 09/2021 page 119/160
19.3 Data logger kits (option)
BINDER Data Logger Kits offer an independent long-term measuring system for temperature and humidity,
available for different temperature ranges. According to the selected kit, the Data Logger can measure and
record also the ambient temperature and humidity values via a second multi-function sensor.
BINDER Data Loggers are equipped with a keyboard and a large LCD display, alarm functions and a real-
time function. Measurement data are recorded in the Data Logger and can be read out after the measure-
ment via the RS232 interface of the Data Logger. It offers a programmable measuring interval and permits
storing up to 64000 measuring values. Reading out is done with the Data Logger evaluation software. You
can give out a combined alarm and status protocol directly to a serial printer.
KBF / KBF-UL: Data Logger Kit TH 70: Multi-function sensor for chamber temperature and humidity:
Temperature range -40 °C / -40 °F up to 70 °C / 158 °F, humidity range 0% r.h. up to 100% r.h.
KBF / KBF-UL: Data Logger Kit TH 70/70: Multi-function sensor for chamber temperature and humidity:
Temperature range -40 °C / -40 °F up to 70 °C / 158 °F, humidity range 0% r.h. up to 100% r.h. Multi-
function sensor for ambient temperature and humidity: Temperature range -40 °C / -40 °F up to 70 °C / 158
°F, humidity range 0% r.h. up to 100% r.h.
KMF: Data Logger Kit TH 100: Multi-function sensor for chamber temperature and humidity: Temperature
range -40 °C / -40 °F up to +100 °C / 212 °F, humidity range 0% r.h. up to 100% r.h.
KMF: Data Logger Kit TH 100/70: Multi-function sensor for chamber temperature and humidity: Temper-
ature range -40 °C / -40 °F up to +100 °C / 212 °F, humidity range 0% r.h. up to 100% r.h. Multi-function
sensor for ambient temperature and humidity: Temperature range -40 °C / -40 °F up to 70 °C / 158 °F,
humidity range 0% r.h. up to 100% r.h.
For detailed information on installation and operation of the BINDER Data Logger, please
refer to the mounting instructions Art. No. 7001-0204 and to the original user manual of the
manufacturer, supplied with the data logger.
19.4 Analog outputs for temperature and humidity (option)
With this option the chamber is equipped with analog outputs 4-20 mA for temperature and humidity. These
outputs allow transmitting data to external data registration systems or devices.
The connection is realized as a DIN socket (3) in the right lateral control panel as follows:
PIN 1: Temperature –
PIN 2: Temperature +
PIN 3: Humidity –
PIN 4: Humidity +
Temperature range: -10 °C / 14 °F to +100 °C / 212 °F
Humidity range: 0 % r.h. to 100 % r.h.
A suitable DIN plug is enclosed.

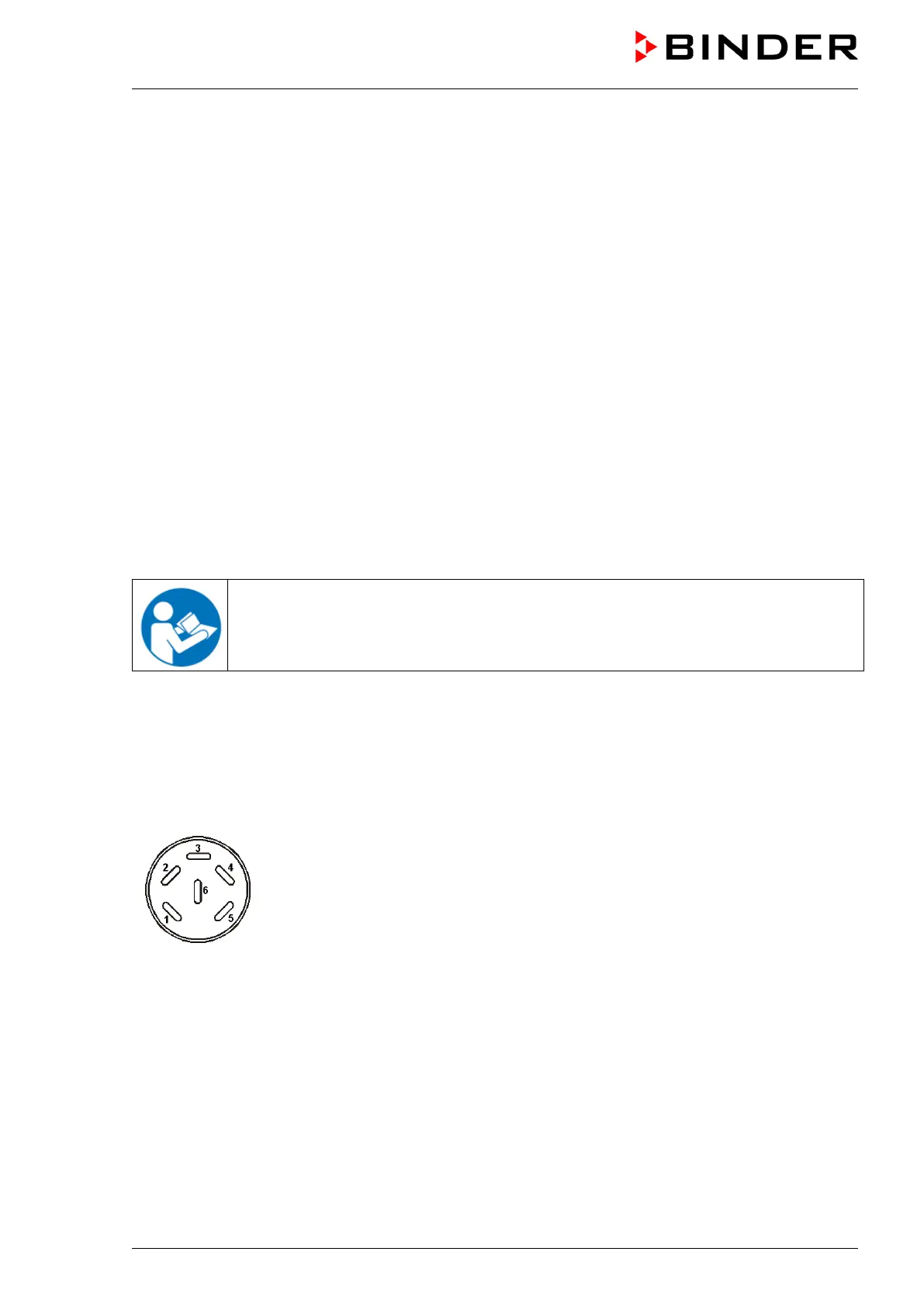

Figure 20: Pin allocation of DIN socket (3) for option analog outputs
