(3) Hose connections
Plug the freshwater hose into the hose connection (16) above the freshwater can and secure it with
a hose clamp. You can use a part of the standard supplied water hose.
Screw the hose nozzle (brass) to the free edge of the hose and screw it directly onto the freshwater
connection “IN” (13) at the rear of the chamber.
When the freshwater can is empty, the message “Freshwater supply” will be displayed on the controller
(chap. 11.1.3), the buzzer sounds, and the humidification module turns off. After acknowledging the alarm,
the humidification module tries to fill up and start operating.
To guarantee humidification during 24 hours even at high humidity set-points with manual
water supply, we recommend filling the freshwater can (option) at the end of each day.
19.7.2 Mounting the wastewater can
(1) Fixing (if required)
Hang the can with its holding device on its 4 carriers at the free space next to the freshwater can.
(2) Hose connections
Plug the wastewater hose to the hose connection (17) of the wastewater can and secure it with a
hose clamp. You can use a part of the standard supplied water hose.

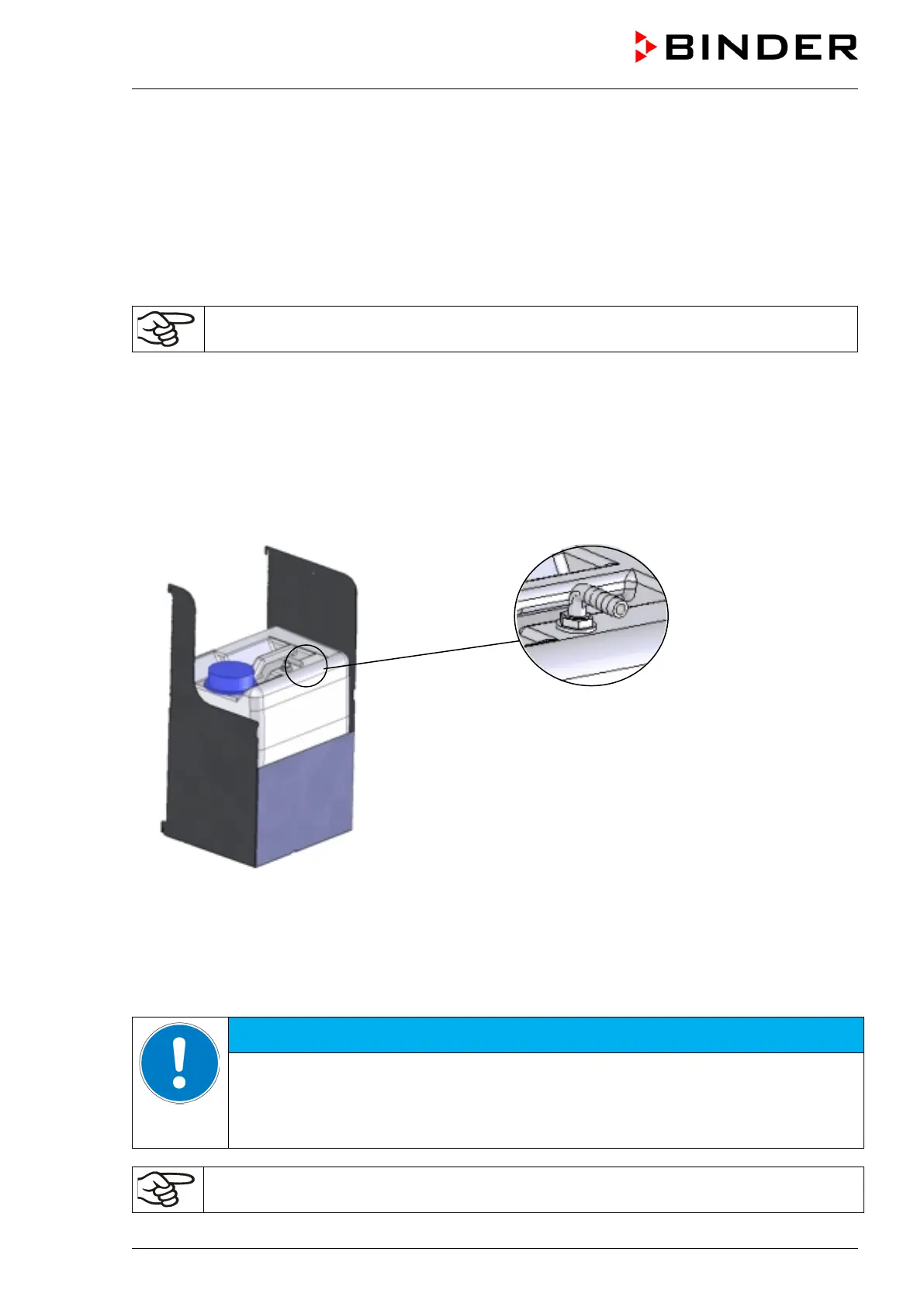

Hose connection of the wastewater can (17)
Figure 25: Wastewater can (option)
Plug the free hose edge to the wastewater connection “OUT” (14) at the rear of the chamber and
secure it with a hose clamp.
Disconnect the hose for emptying the wastewater can. Then you can remove the wastewater can together
with its holding device for emptying.
NOTICE
Danger of overflow of the wastewater can.
Damage to the surroundings of the chamber.
Regularly check the filling level of the wastewater can.
Always empty the wastewater can in a timely manner before it is full.
Bringing a source of humidity into the inner chamber may increase wastewater production.
Regularly check the filling level of the wastewater can.
