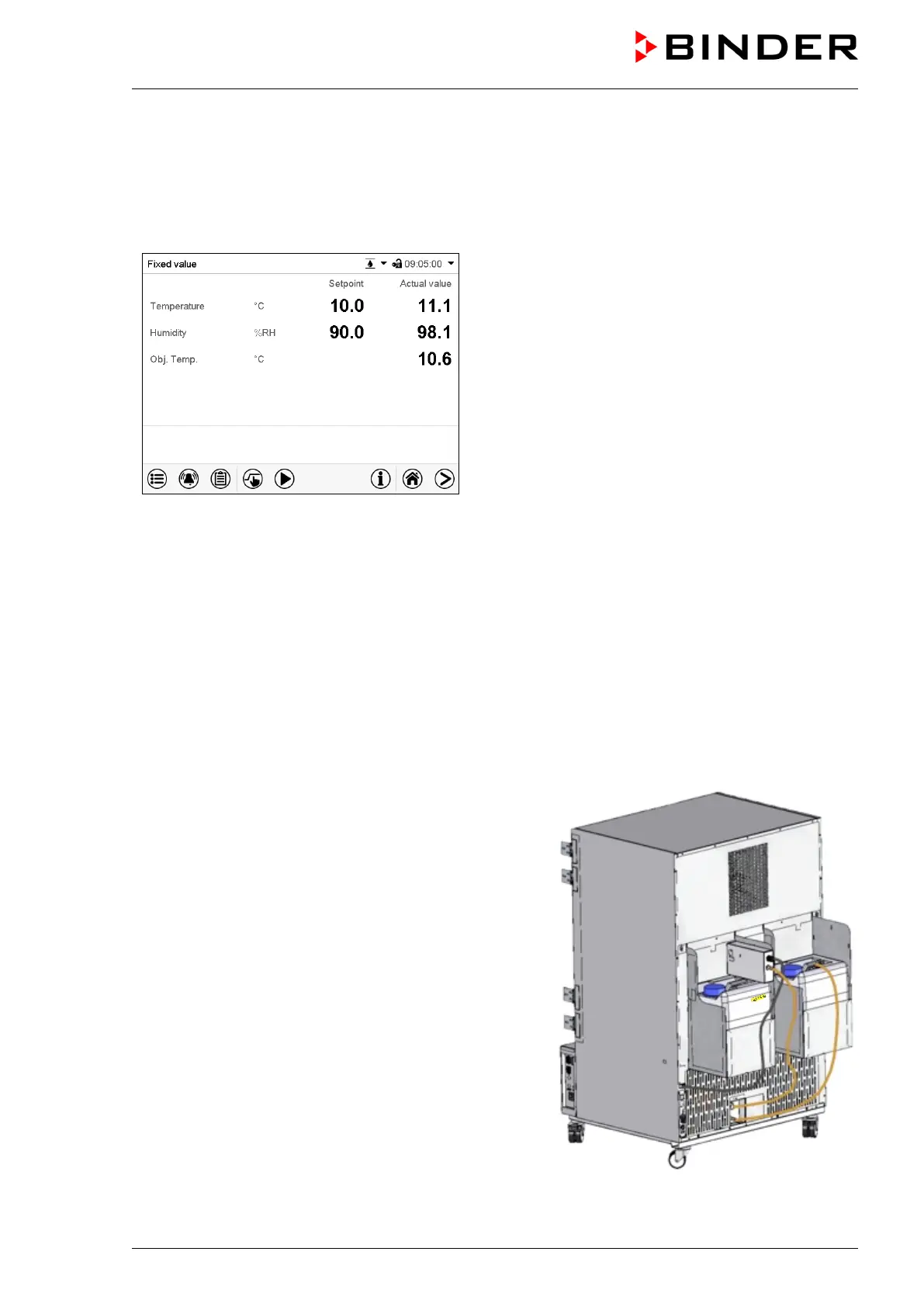

KBF / KBF-UL + KMF (E6) 09/2021 page 121/160
19.6 Object temperature display with flexible Pt 100 temperature sensor (option)
The object temperature display enables the determination of the actual temperature of the loading material
during the whole process. The object temperature is measured via a flexible Pt100 temperature sensor and
can be viewed on the controller display. You can immerse the sensor top protective tube of the flexible Pt
100 into liquid substances.
Normal display with object temperature display
(sample values)
The object temperature data are put out together with the data of the temperature controller and can be
documented by the APT-COM™ 4 Multi Management Software (option, chap. 19.1) developed by BINDER.
Technical data of the Pt100 sensor:
• Three-wire technique
• Class B (DIN EN 60751)
• Temperature range up to 320 °C / 608°F
• Stainless steel protective tube with a length of 45 mm / 1.78 in, material no. 1.4501
19.7 External freshwater and wastewater cans (option)
If no suitable in-
house water connection is available, you
can manually supply water by filling the optional external
freshwater can. There is an additional external water can
for the wastewater. Volume: 20 liters / 0.71 cu.ft.
The cans are placed in holding devices. You can affix
them directly at the rear of the chamber
next to the chamber.
Figure 22: Rear chamber view with installed external wa-
ter cans (option)
