Binder VD 53 - Connections at the Rear of the Chamber

VD (E2.1) 07/2017 page 15/96
2.4 Connections at the rear of the chamber
(10) (11) (12) (13) (14) (15) (16) (9)

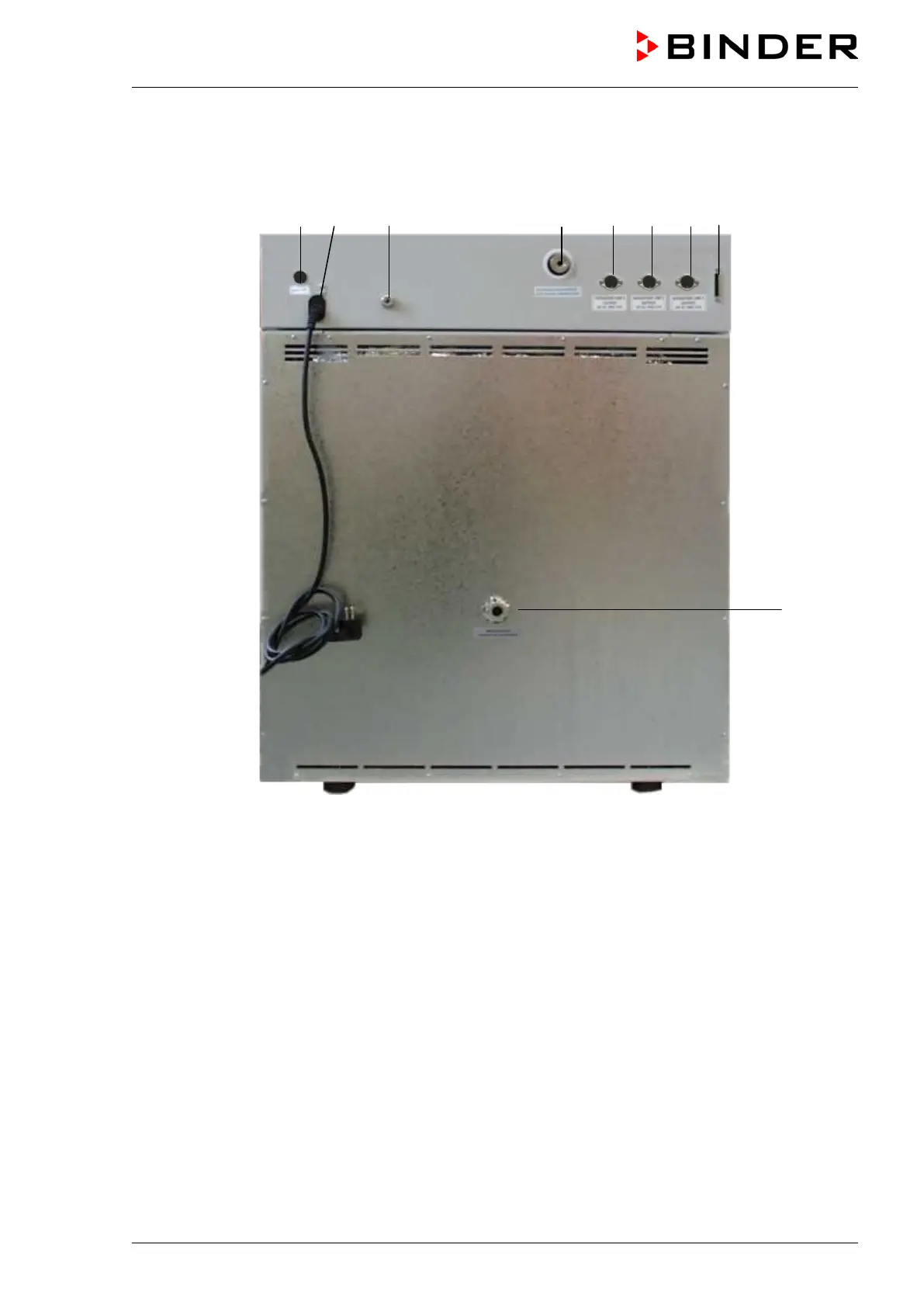

Figure 6: Rear of VD
(9) RS 422 serial interface for computer communication
(10) Miniature fuse
(11) Power connection line
(12) Inert gas connection, adapter with hose olive ∅ 8 mm / 0.31 in
(VD23: also fresh air inlet)
(13) Vacuum connection with small flange DN16
(14) DIN socket (option) for option “object temperature display”
(15) DIN socket (operation line 2) (option) for option “program controlled venting”
(16) DIN socket (operation line 1) (option) for option “vacuum module with pump”
(17) Measuring connection with small flange DN16
(17)
