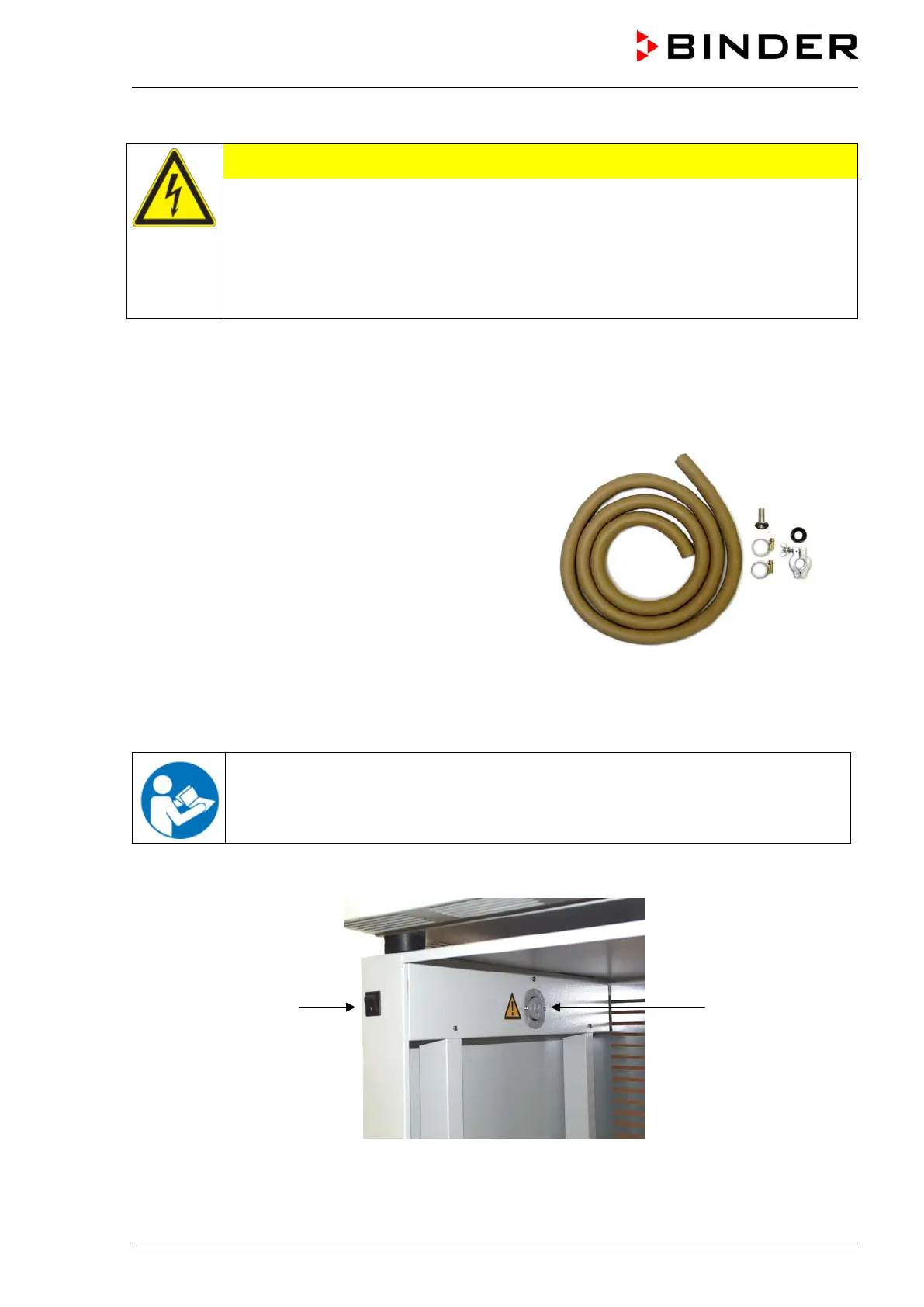

VD (E2.1) 07/2017 page 57/96
Maximum loading capacity of the switching contacts: 0.4 Amp.
CAUTION
Overloading the switching contacts.
Damage to the switching contacts and connection sockets.
∅ DO NOT exceed the maximum switching load of 0.4 Amp.
∅ DO NOT connect any device with a higher load.
ONLY connect devices with a nominal tension of 24 V DC.
16. Options
16.1 Connection kit VD (option)
The VD connection kit VD (Art. no. 8012-0146)
consists of:
• Aluminum straining ring DN10/16
• Outer centering ring DN10/16
• Small flange with hose tulles DN16/8
• 2.5 m / 98.4 in caoutchouc hose 6/12 mm
• 2 hose clamps
Figure 16: VD connection kit VD
16.2 Vacuum module empty (without pump) (option)
The mounting instructions Art. no. 7001-0137 supplied with the vacuum module describe
how to mount the VD vacuum drying oven onto the vacuum module and installing the
suction line into the vacuum module.
A switch (18) is located at the front of the vacuum module for switching a vacuum pump via the socket
(19) permanently fitted in the vacuum module.
Figure 17: Vacuum module with the switch and socket for the vacuum pump
(18) Switch for the vacuum pump
(19) Socket for the vacuum pump
