VD (E2.1) 07/2017 page 59/96
16.3 Vacuum module with chemical membrane pump VP 1.1 or VP 2.1 (option)
The mounting instructions Art. no. 7001-0137 supplied with the vacuum module describe
how to mount the VD vacuum drying oven onto the vacuum module and installing the
suction line into the vacuum module.
(16)
(20)
(21)
(22)
(15) DIN socket (operation line 2) for option
program controlled venting
(16) DIN socket (operation line 1) for option
vacuum module with pump
(20)
DIN socket at the vacuum module for
option vacuum module with pump
(21) Power supply at vacuum module
(22) Fuse

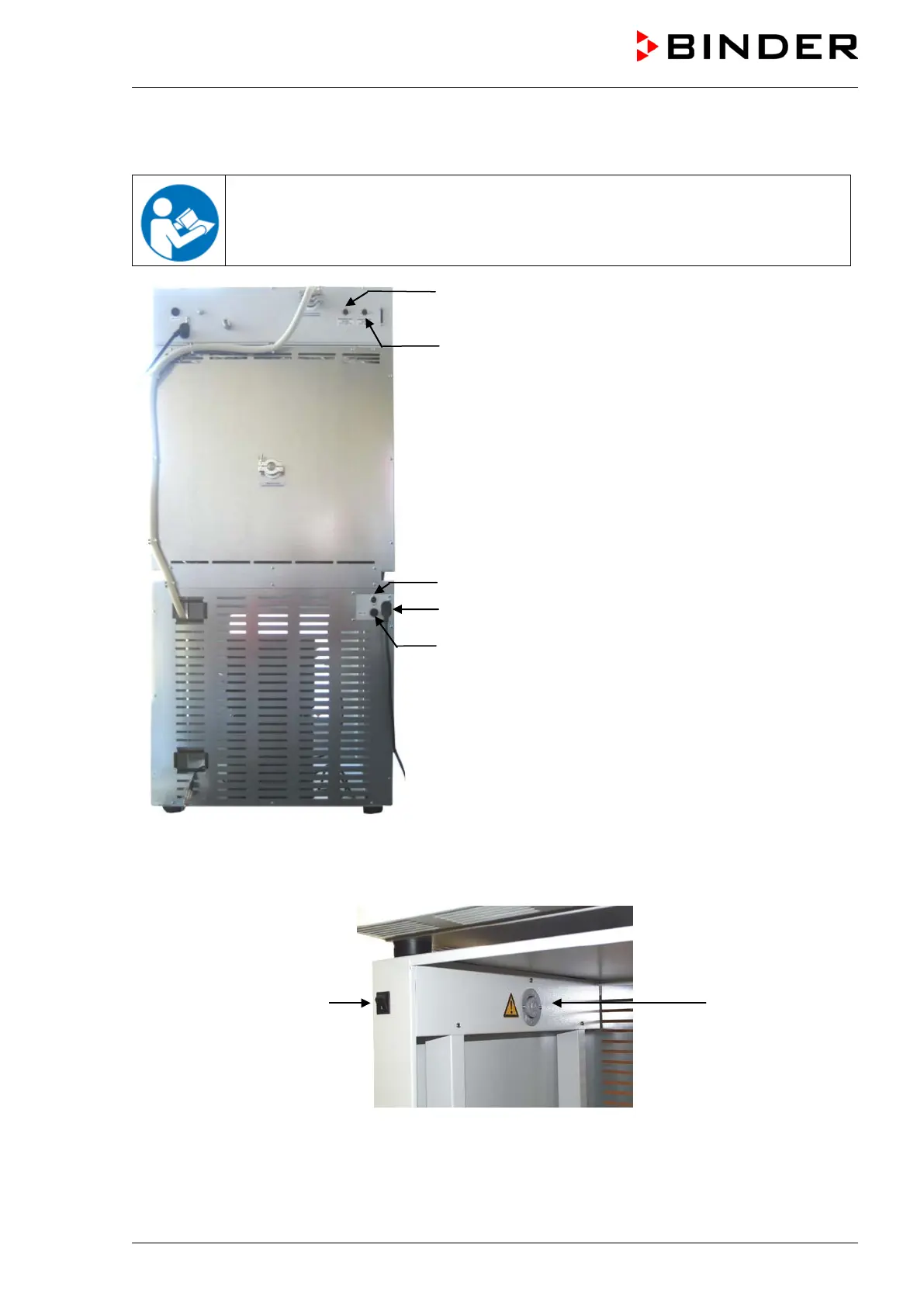

Figure 19: VD 53 with option “Vacuum module
with chemical membrane pump”, mounted
A switch (18) is located at the front of the vacuum module for switching the vacuum pump via the socket
(19) permanently fitted in the vacuum module.
Figure 20: Vacuum module with switch and socket for vacuum pump
(18) Switch for vacuum pump
(19) Socket for vacuum pump
