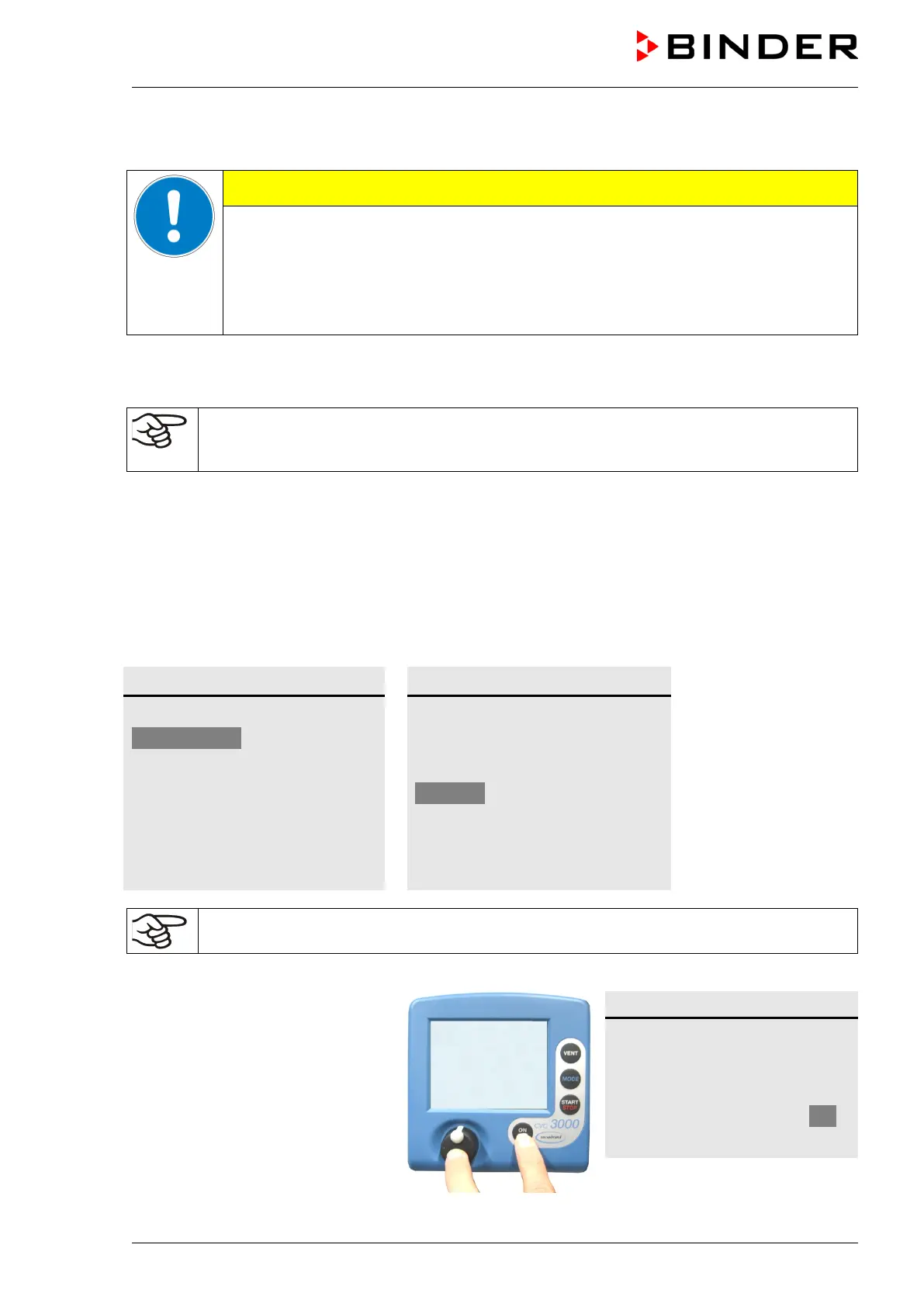

VD (E2.1) 07/2017 page 62/96
Do not exceed the permitted gas inlet temperature. An excessive gas inlet temperature may reduce the
pump’s lifetime.
CAUTION
Exceeding the gas inlet temperature.
Damage to the vacuum pump.
∅ Do NOT exceed the set-point temperature of the permitted gas temperature.
With higher set-point temperature, take appropriate measures to cool down the sucked-
in gas before its entry to the vacuum pump
Programming of descendant pressure cycles as well as documentation of pressure data are possible via
the RS 232 serial interface of the vacuum controller CVC 3000 by use of the BINDER communication
software APT-COM™ DataControlSystem (option, chap. 16.8).
In combination with the option object temperature measurement a T-formed connection tube
adapter (small flange DN16 (Art. No. 6009-0060) NOT included) is necessary to connect the
pressure sensor of the vacuum controller to the measuring access port.
Settings of the vacuum controller for control via APT-COM™:
Following settings are necessary to set the vacuum controller to remote control via its RS232 interface
and to enable the venting valve:
Setting for remote control:
• With the MODE key select the menu “Configuration”.
• Select the menu point “RS – 232” with the selection knob and set the setting “Remote” to “On”.
• Set the Baud rate to 9600.
Configuration RS - 232
Adjustment 936 mbar
RS – 232 . . .
Sensors . . .
Display . . .
Autostart Off
Defaults Cancel
- - - - - - Back - - - - - -
Baud 9600
Parity 8 - N - 1
Handshake Xon - Xoff
Remote On
- - - - - - Back - - - - - -
The vacuum controller can no longer be operated manually in this mode.
Resetting to manual operation:
Turn off the pump unit at its main
power switch. Then turn it on again
and within 1 second
simultaneously
and the ON/OFF key.
OR
Turn off the pump unit at ON/OFF
key. Then turn it on again and within
1 second press the selection knob.
Baud 9600
Parity 8 - N - 1
Handshake Xon - Xoff
Remote Off
- - - - - - Back - - - - - -
