- ‘6CH+1(ST)’: 10-second ECG will be recorded as I, II, III, aVR, aVL and aVF for the
first 4 seconds and V1, V2, V3, V4, V5 and V6 for the next 4 seconds. 1
channel of rhythm will be recorded for 10 seconds at the bottom. The
amplitude of the measured ST wave is printed as an ST map. It is printed at
25mm/sec regardless of output speed
The set value will be displayed on the screen, and when you choose ‘3CH+1’, 3
Channels + 1 Rhythm Report will be shown at the top of the printing form, ‘6CH+1’
for 6 Channels + 1 Rhythm Report,‘12CH’ for 12 Channels Rhythm Report, ‘3CH+3’ for
3 Channels + 3 Rhythm Report will be shown.

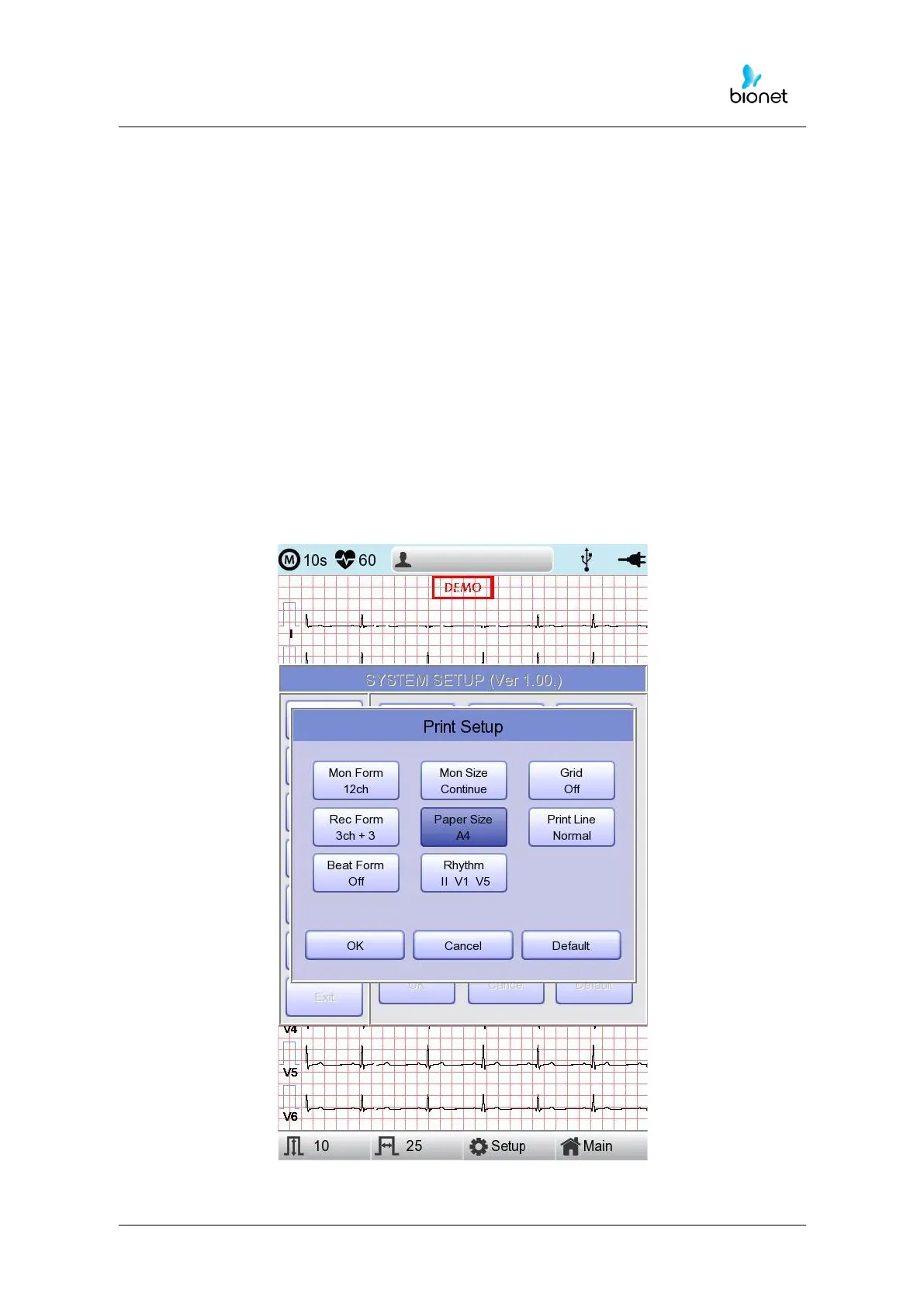

[Paper Size]
You can set up the paper size. When you click the ‘Paper Size’ menu, ‘A4’ will be
selected and when clicking it again, ‘Letter’ will be selected. Default is set as ‘A4’.
- ‘A4’: to output at 297mm for A4 Size printout.
- 'Letter': to output at 279 mm for Letter Size printout.
