Chapter1 Motherboard Description
1-9

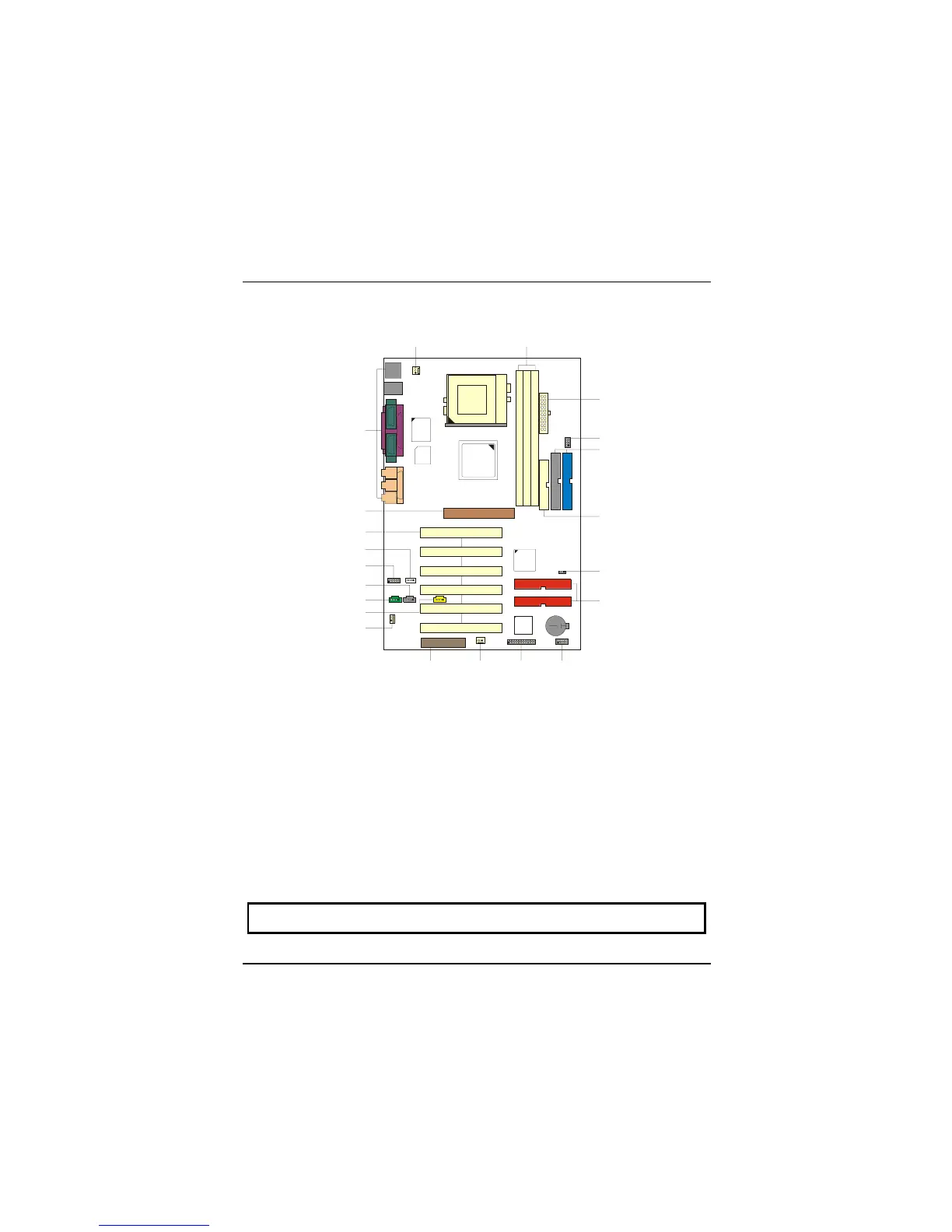

1.2.3 Quick Reference
A. Back Panel Connertors L. Front Panel Connector (JPANEL1)
B. AGP Slot (AGP1) M. Front USB Header (JUSB2)
C. PCI Slots (PCI1-6) N. RAID Connector (*RAID1-2)
D. CD-ROM Audio Header (JCDIN2) O. Clear CMOS Jumper (JCMOS1)
E. Front Audio Header (JAUDIO1) P. FDD Connector (FDD1)
F. CD-ROM Audio Header (JCDIN1) Q. IDE Connectors (IDE1-2)
G. Telephony Audio Header (JTAD1) R. DIMM Power Connector
H. Auxiliary Audio Header (*JAUX1) (JDIMMPWR1)
I. Wake-On-LAN Header (JWOL1) S. ATX Power Connector (JATXPWR1)
J. CNR Slot (CNR1) T. DIMM Sockets (DIMM1-3)
K. System FAN Header (JSFAN1) U. CPU FAN Header (JCFAN1)
NOTE: The “*“mark represent the function is optional.
A
B
C
D
E
F
G
H
I
J
KLM
N
O
P
Q
R
S
TU
To Next Page
