Chapter 3 Trouble Shooting
3-29
3.3.10 Set Transfer Mode
The following steps shall be taken to set transfer mode of hard disk:
1. Select the hard disk in the disk tree.”.
2. Click Mode icon on the tool bar.

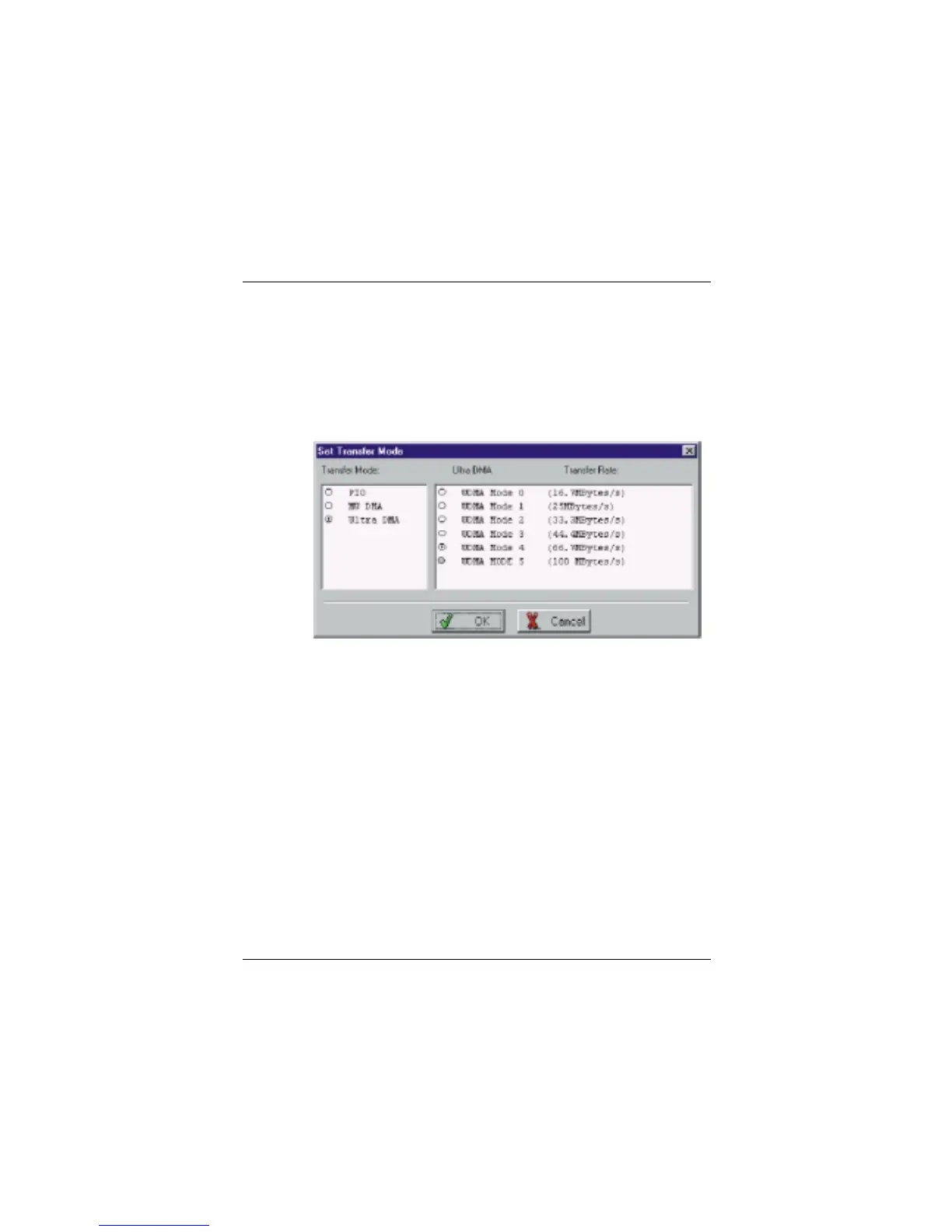

3. In the popup Set Transfer Mode window select the mode to be set.
4. Click OK button to finish or click Cancel button to cancel .If Cancel
button is clicked, the system will remain unchanged.
5. The setting will take effect only after the restart of computer.
Suggestion:
1. BIOS and driver of RAID Adapter can automatically detect the optimum
transfer mode supported by the corresponding hard disk. Usually no need
to change the transfer mode.
2. If the option box of transfer mode is gray, it means such mode is not
supported by this hard disk and can not be set.
