Chapter 2 BIOS Setup
2-14
2.5 Integrated Peripherals

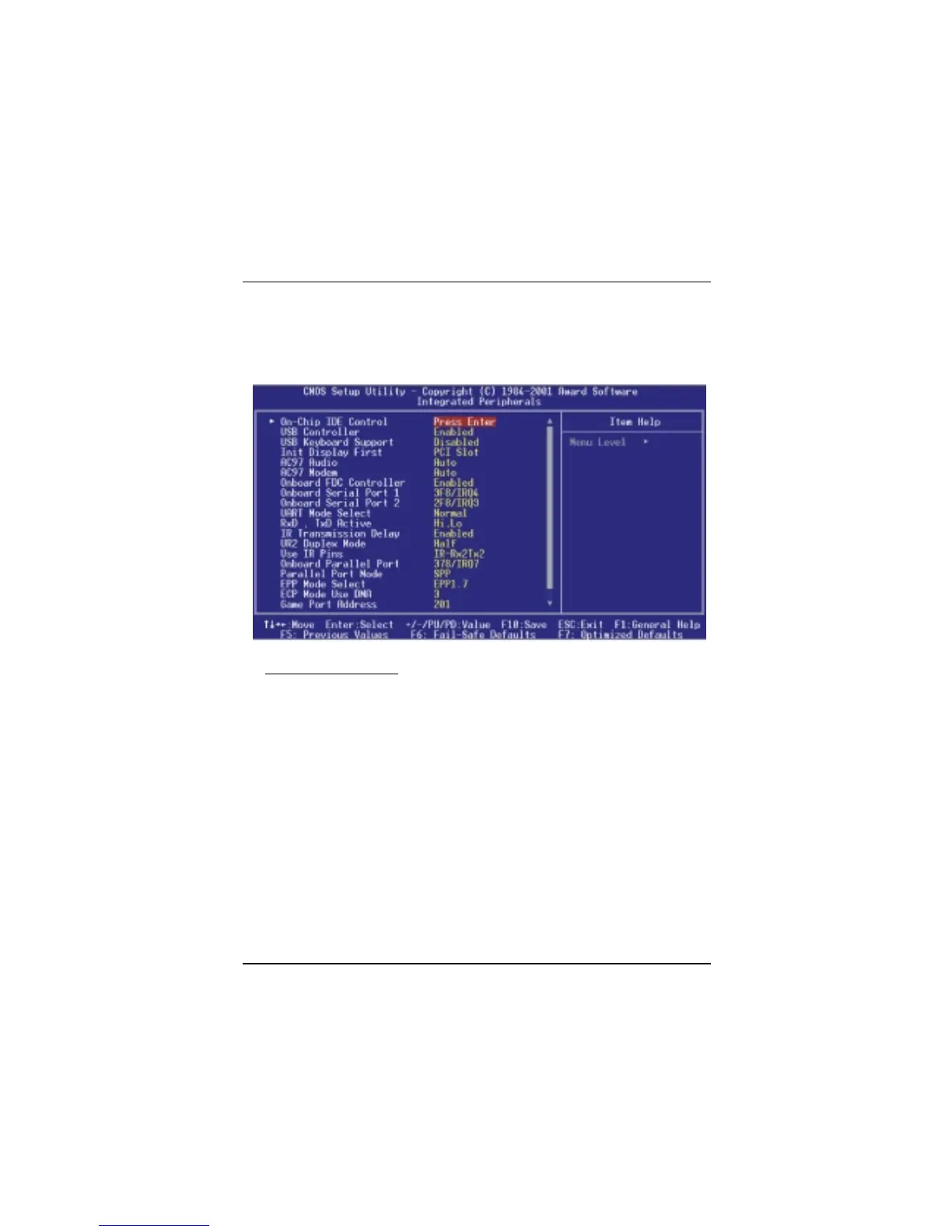

Figure 5. Integrated Peripherals
On-Chip IDE Control
The chipset contains a PCI IDE interface with support for two IDE channels.
Select “Enabled” to activate the first and / or second IDE interface. Select
“Disabled” to deactivate an interface, if you install a primary and / or secondary
add-in IDE interface. If you highlight the literal “Press Enter” next to the “Onchip
IDE Control” label and then press the enter key, it will take you a submenu with
the following options:
On-Chip Primary /Secondary PCI IDE
The integrated peripheral controller contains an IDE interface with
support for two IDE channels. Select Enabled to activate each channel
separately.
The Choices: Enabled (default), Disabled.
IDE Primary / Secondary Master / Slave PIO
The IDE PIO (Programmed Input / Output) fields let you set a PIO
mode (0-4) for each of the IDE devices that the onboard IDE interface
supports. Modes 0 through 4 provide successively increased
