Chapter 3 Trouble Shooting
3-28
3.3.9 Remove Disk Array
The following steps shall be taken to remove disk array.
1. Select the disk array to be deleted in the disk tree.
2. Click Remove icon on the tool bar.
3. In the popup dialog box, select Yes to confirm the remove operation,
select No to cancel the remove operation.

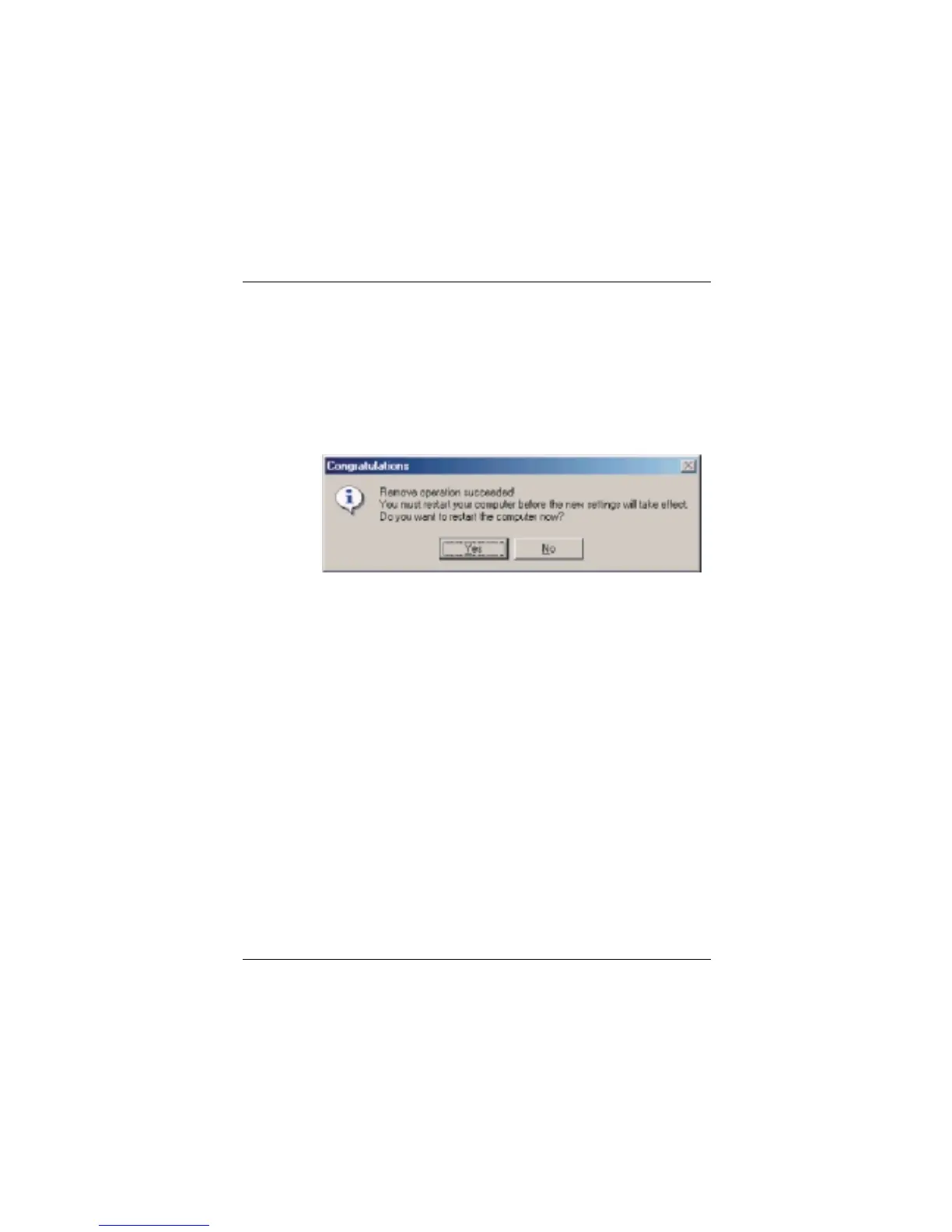

4. After the remove operation is complete, shut down all other programs.
Then click Yes to restart the computer, or select No to restart the
computer later.
Note:
1. Remove mirror array operation will generate two physical disks
with the identical data on each.
2. Remove 0+1 array operation will generate two stripe arrays with
the identical data on each.
Warning:
1. Remove stripe array operation will lead to the data on the striping
disks all destroyed.
2. Remove span array operation will lead to the data on the first disk
reserved while the data on other disks will be all destroyed.
