1.7.4 Game (Joystick/MIDI) Port Connector:
JGAME1
This connector allows you to connect a joystick or game pad for playing computer
games. Also, you may play or edit professional music by connecting MIDI
devices.
1.7.5 Audio Port Connectors: JSPKR1/JLIN1/JMIC1
Speaker Out is used to connect speakers or headphones for audio output.
Line In can be connected to the external CD player, Tape player or other audio
devices for audio input.
Mic In is used to connect a microphone, which allows you to input sounds and
voices.

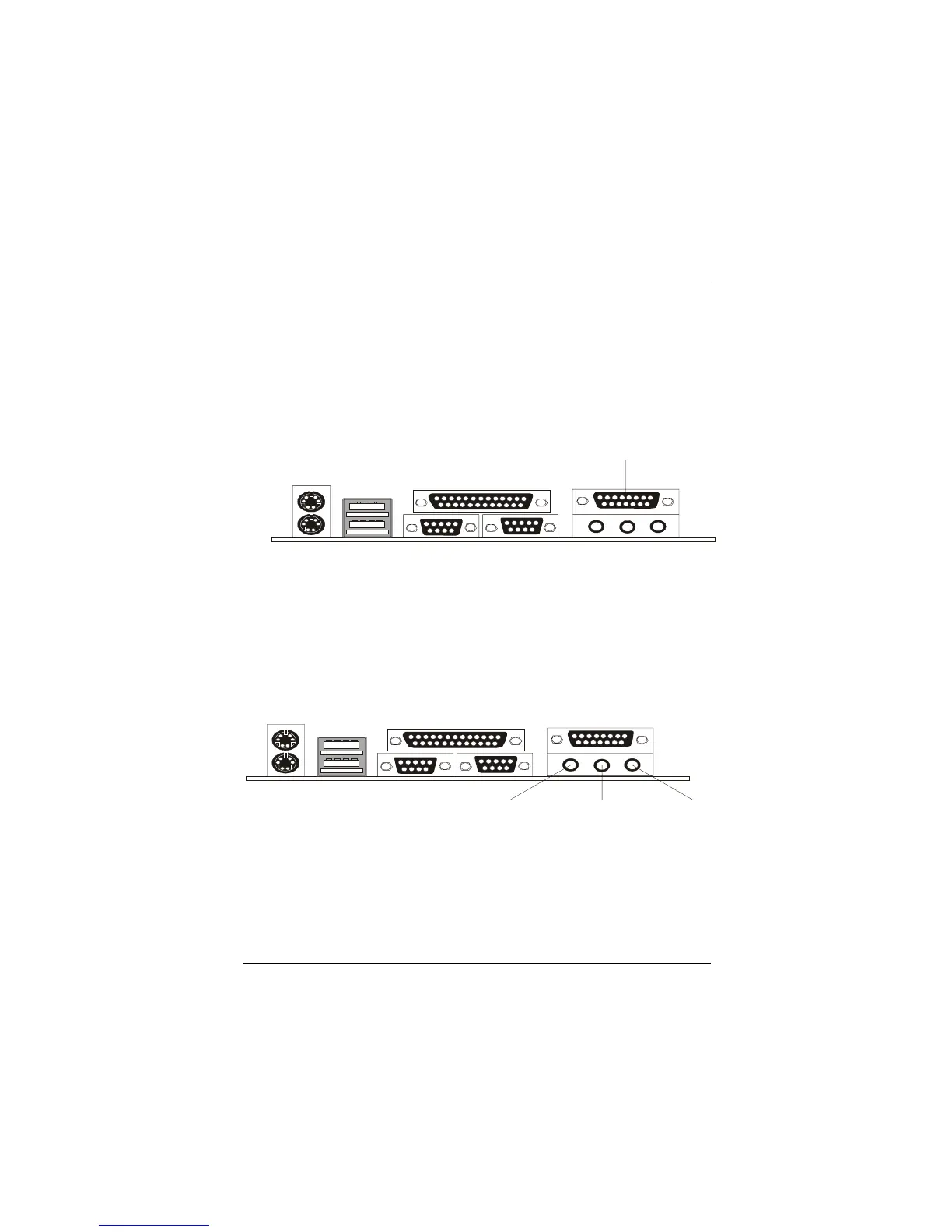

Game/Joystick/MIDI
Speaker Out Line In
Mic In
