Chapter1 Motherboard Description
1-26
1.7.3.2 Parallel Interface Port: JPRNT1
Unlike the serial port, parallel interface ports have been standardized and should
not present any difficulty interfacing peripherals to your system. Sometimes called
a centronics port, the parallel port is almost exclusively used with printers. The

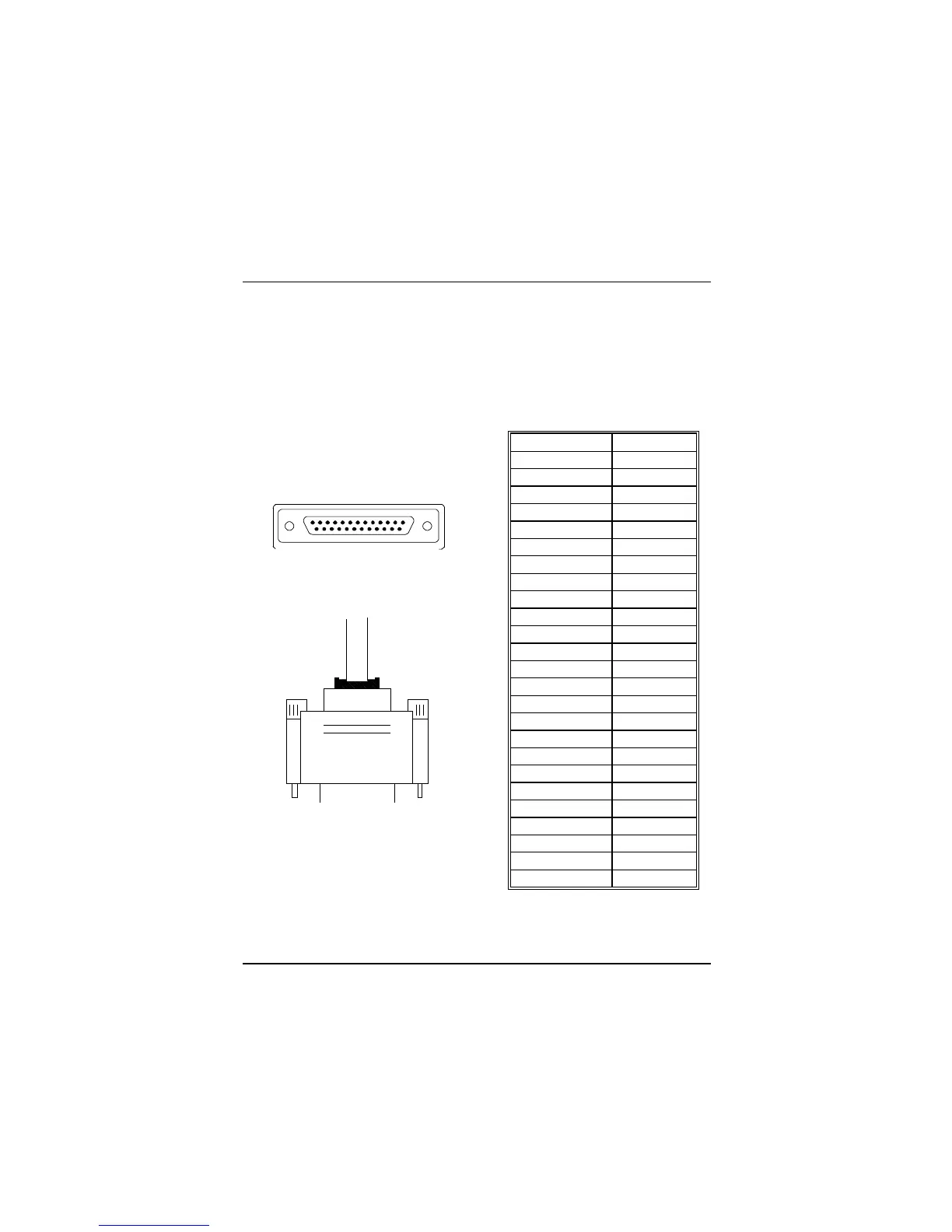

parallel port on you system has a 25-pin, DB25 connector (see picture below).
The pin-out for the parallel port are shown in the table below.
Signal Pin
-Strobe 1
Data 0 2
Data 1 3
Data 2 4
Data 3 5
Data 4 6
Data 5 7
Data 6 8
Data 7 9
-Ack 10
Busy 11
Paper Empty 12
+Select 13
-Auto FDXT 14
-Error 15
-Init 16
-SLCTN 17
Ground 18
Ground 19
Ground 20
Ground 21
Ground 22
Ground 23
Ground 24
Ground 25
