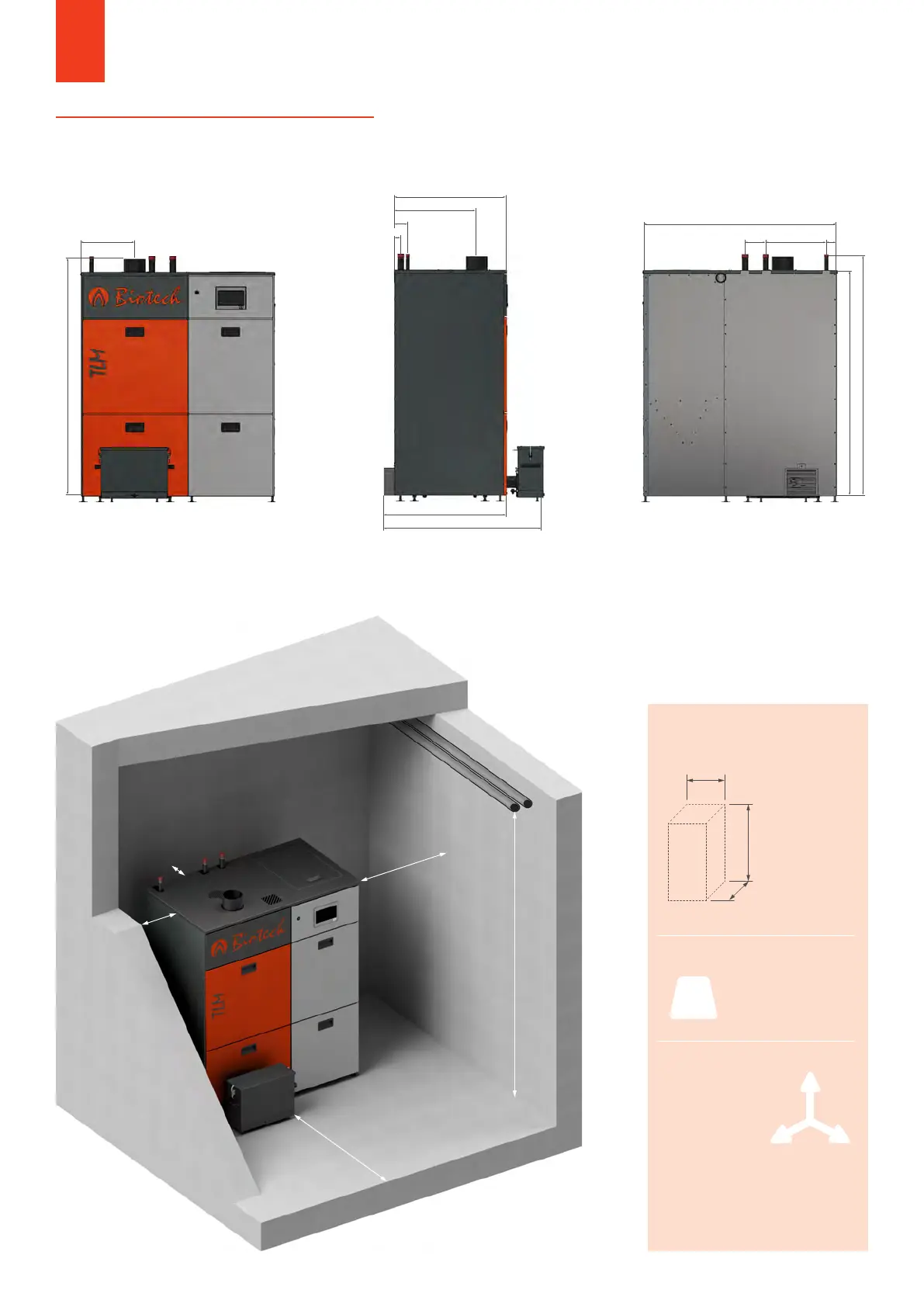

5.2 TLMPRO MBW
667
488
79
730
943
37
1435
125 362 62
1341
1155
1420
323
4
3
2
5
1
PLANING FOLDER PELLET BOILER
KG
TLM-Pro MBW
Pellet boiler
Insert dimensions
boiler (min.)
A: 610 mm
B: 1450 mm
C: 870 mm
Insert dimensions
container (min.)
A: 620 mm
B: 1350 mm
C: 670 mm
Boiler 220 kg
Container 59 kg
Cladding 64 kg
Ash box 7 kg
All 350 kg
*) recommendation 250 mm, otherwise
increased maintenance eort (costs)
MINIMUM DISTANCE
MASONRY
1: 1000 mm
2: 400-900 mm
3: 100-300 mm *
4: 200 mm
5: 2000 mm
