25
Storage room
Heating room
Chimney (e.g. Ø130 mm)
Return air
Suction hose
PLANING FOLDER PELLET BOILER

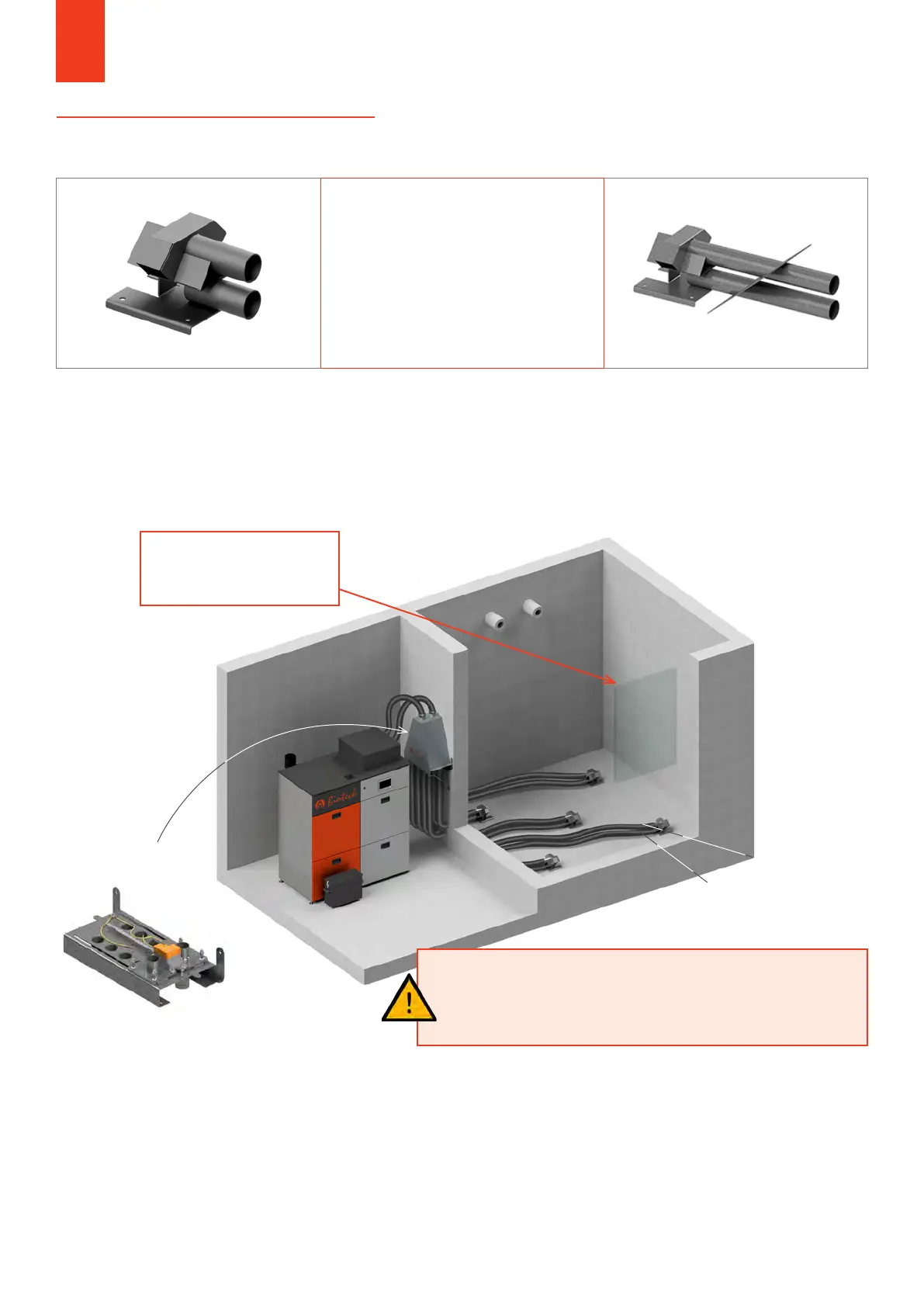

7.3 SUCTION POINT
Suction points fixed to the floor can be used!
SUCTION POINT FOR FLOOR MOUNTING SUCTION POINT FOR SLOPING FLOOR
ATTENTION!
Distance impact mat wall
min. 300 mm!
Make sure that the suction points are aligned centrally in the room.
In connection with suction points, the use of a hose diverter is a prerequisite!
Switching unit
3-fold / 5-fold
NOTE:
The installation of an inclined floor
is strongly recommended. Without
an inclined floor, complete storage
space discharge is not possible. With
increasing operating time, the slope
angle becomes steeper and steeper
(increase in dust content). See fig.
below.
ATTENTION:
To ensure that the storage room can be completely emptied,
slide slopes with a minimum slope of 45° are recommended
to ensure that the pellets slide down safely.
