Biotech TLM-Pro - PZ 90;100 RL Dimensions

19
PZ 90/100 RL
Pellet boiler
Insert dimensions
boiler (min.)
A: 850 mm ¹
B: 1992 mm ²
C: 1280 mm
Insert dimensions
container (min.)
A: 740 mm
B: 2030 mm ²
C: 1260 mm
Weight 1160 kg
(1153 kg)*
1) When dismantling the console / motor Ash removal
2) exclusive adjustable feet (50 to 80 mm)
KG
*) with one suction turbine
MINIMUM DISTANCE
MASONRY
1: 500 mm
2: 750 mm
3: 1200 mm
4: 700 mm
5: 2500 mm
A
B
C

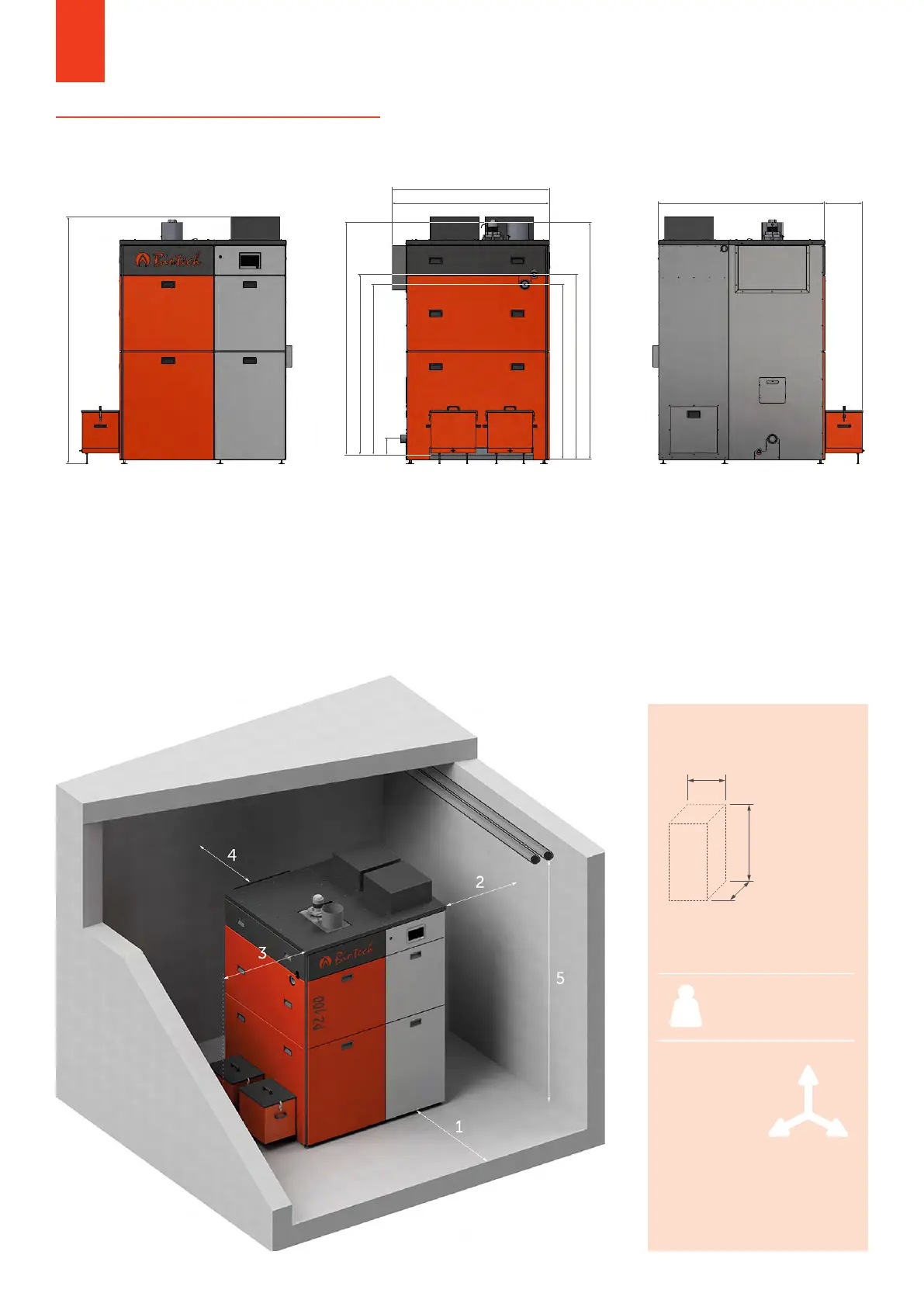

PLANING FOLDER PELLET BOILER
PZ 100PZ 100
2068
1339
1221
140
1458
1491
1545
1578
1988
2020
1420 325
5.10 PZ 90/100 RL
