Biotech TLM-Pro - PZ 80 RL Dimensions

18
PLANING FOLDER PELLET BOILER
5.9 PZ 80 RL
PZ 80PZ 80
1820
140
1210
1246
1297
1333
1733
1769
1339
1420 324
1221
PZ 80 RL
Pellet boiler

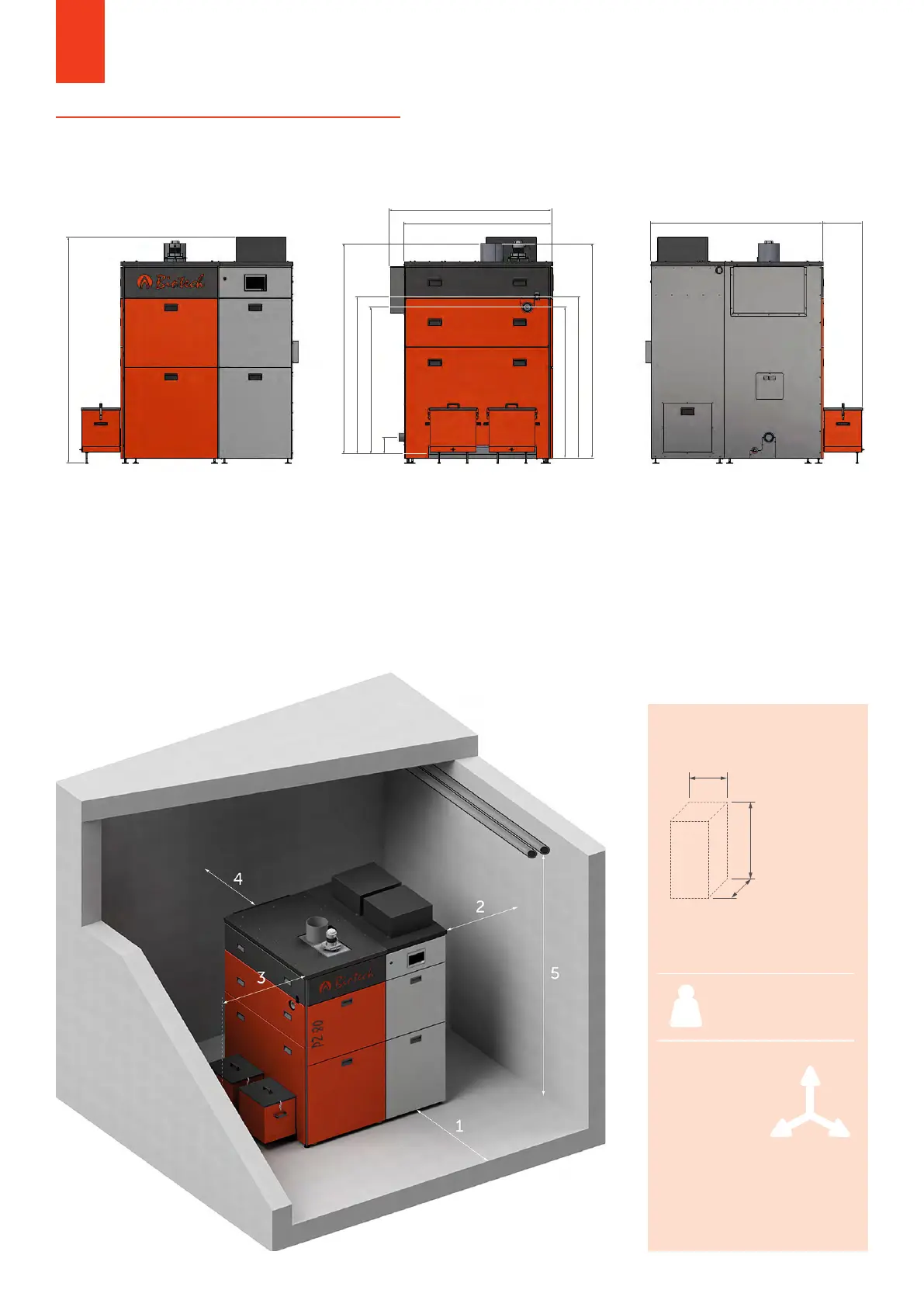

Insert dimensions
boiler (min.)
A: 850 mm ¹
B: 1805 mm ²
C: 1280 mm
Insert dimensions
container (min.)
A: 740 mm
B: 1800 mm ²
C: 1260 mm
Weight 930 kg
1) When dismantling the console / motor Ash removal
2) exclusive adjustable feet (50 to 80 mm)
KG
MINIMUM DISTANCE
MASONRY
1: 500 mm
2: 750 mm
3: 1200 mm
4: 700 mm
5: 2300 mm
