Biotech TLM-Pro - PZ 32;35 PRO MBW Dimensions

15
1594
1605
1324
353
259
173
489
1305
339
1341
730
943
1158
667
945

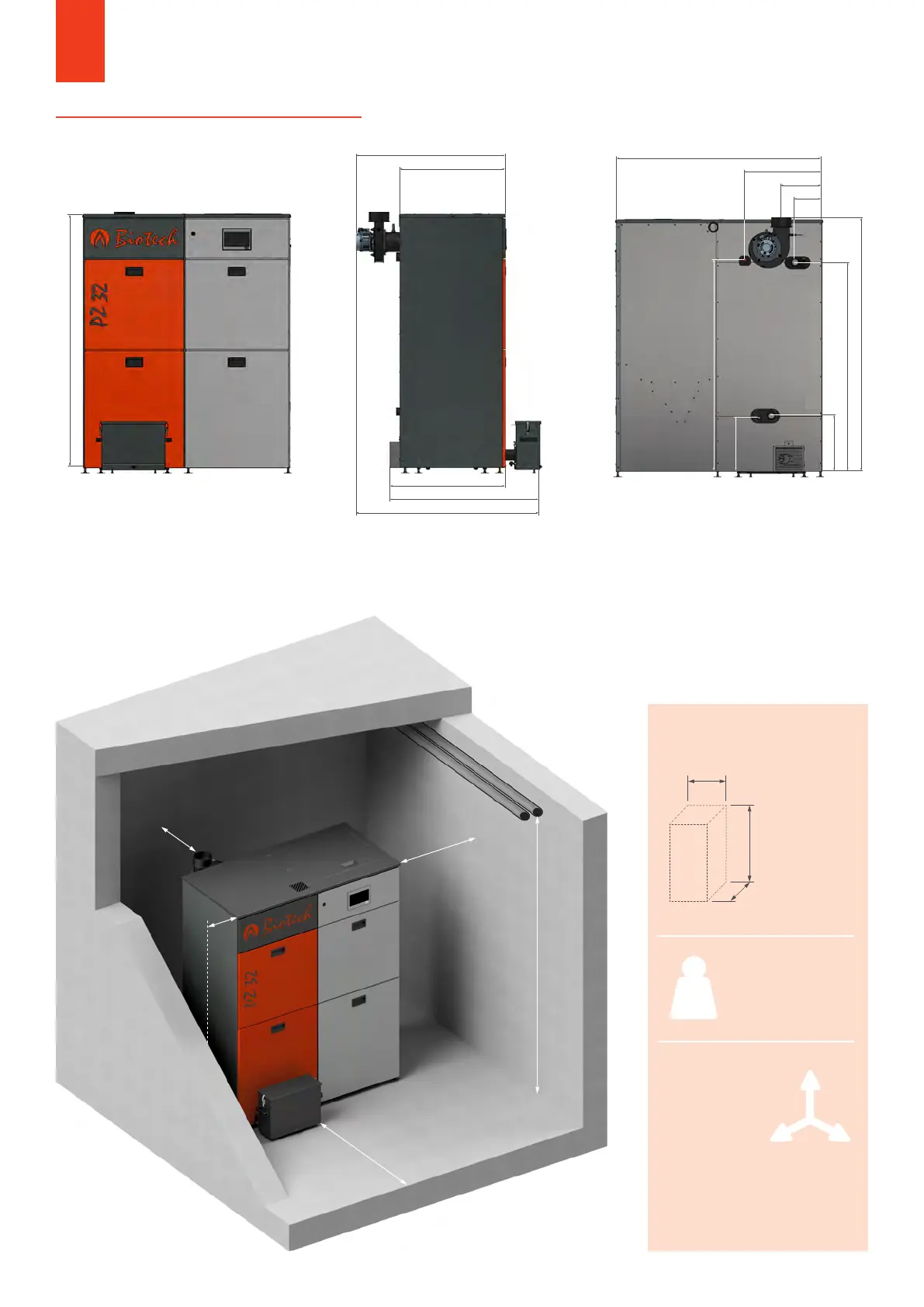

PZ 32/35 Pro MBW
Pellet boiler
Insert dimensions
boiler (min.)
A: 610 mm
B: 1620 mm
C: 920 mm
Insert dimensions
container (min.)
A: 740 mm
B: 1630 mm
C: 670 mm
Boiler 280 kg
Container 69 kg
Cladding 70 kg
Ash box 7 kg
All 426 kg
*) recommendation 250 mm, otherwise
increased maintenance eort (costs)
MINIMUM DISTANCE
MASONRY
1: 1000 mm
2: 400-900 mm
3: 100-300 mm *
4: 500-900 mm
5: 2200 mm
KG
A
B
C
4
3
2
1
5
PLANING FOLDER PELLET BOILER
5.6 PZ 32/35 PRO MBW
