Biotech TLM-Pro - PZ 25 RL Dimensions

12
5.3 PZ 25 RL
235
173
1544
1398
1080
353
1344
489
1305
1091
345
870
730
943
1084
PZ 25 RL
Pellet boiler

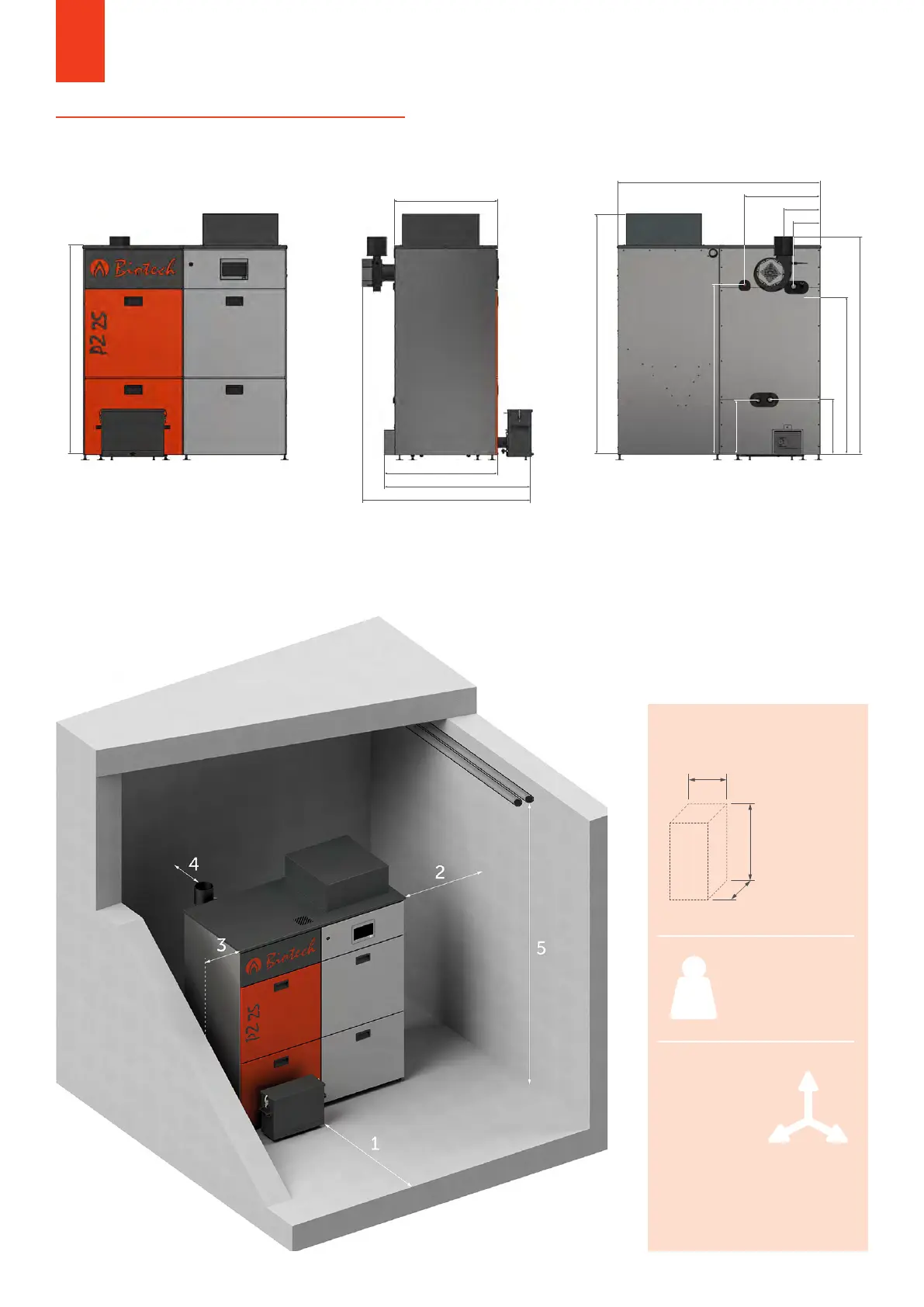

Insert dimensions
boiler (min.)
A: 610 mm
B: 1400 mm
C: 720 mm
Insert dimensions
container (min.)
A: 740 mm
B: 1650 mm
C: 670 mm
Boiler 218 kg
Container 69 kg
Cladding 69 kg
Ash box 7 kg
All 376 kg
KG
*) Recommendation min. 250 mm, other-
wise increased maintenance eort (costs)
MINIMUM DISTANCE
MASONRY
1: 1000 mm
2: 400-900 mm
3: 100-300 mm *
4: 500-900 mm
5: 2200 mm
A
B
C
PLANING FOLDER PELLET BOILER
