124

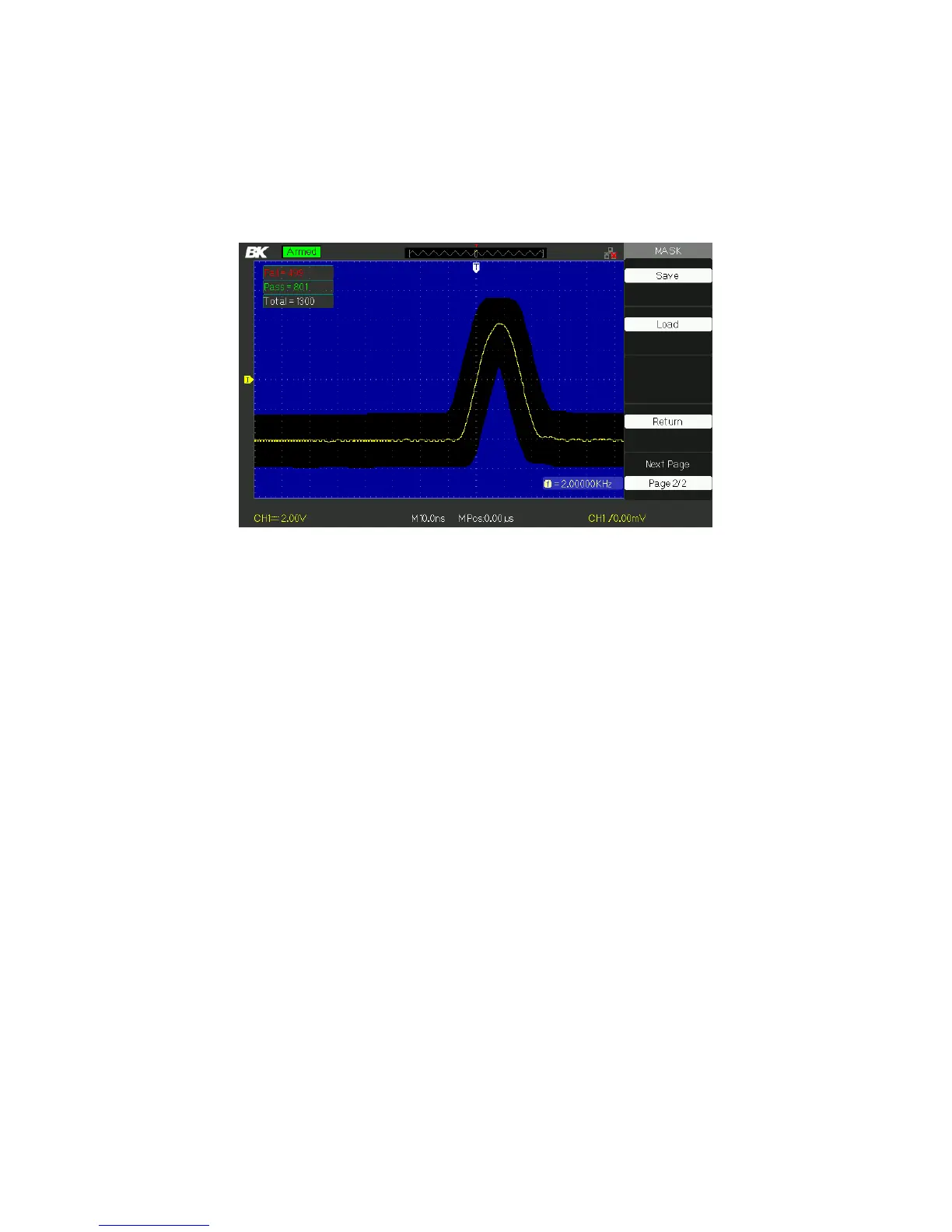

Figure 3.66 – Mask Menu Screen 2
RUN Pass/Fail test, please follow next page:
1. Press UTILITY button to enter the “Utility menu”.
2. Press the “Next Page – Page 1/4” option button.
3. Press the “Next Page – Page 2/4” option button to enter
the third page of “Utility menu”
4. Press the “Pass/Fail” option button to enter the
“Pass/Fail” function menu.
5. Press the “Enable Test” option button to select “On”.
6. Press the “Source” option button to select input signal
channel.
7. Press the “Next Page – Page 1/2”option button to enter
the second page of the “Pass/Fail menu”.
8. Press the “Mask Setting” option button to enter the first
page of “Mask menu”.
9. Press the “X Mask” button; turn the “Universal” knob to
adjust the horizontal clearance.
10. Press the “Y Mask” button; turn the “Universal” knob to
adjust the vertical clearance.
11. Press the “Create Mask” button to create mask and you
also can enter the next page of “Mask menu” to recall
the stored mask.
