BK Precision 2190E - Horizontal System; Horizontal Controls and Knob Functions

45
3.10 Horizontal System

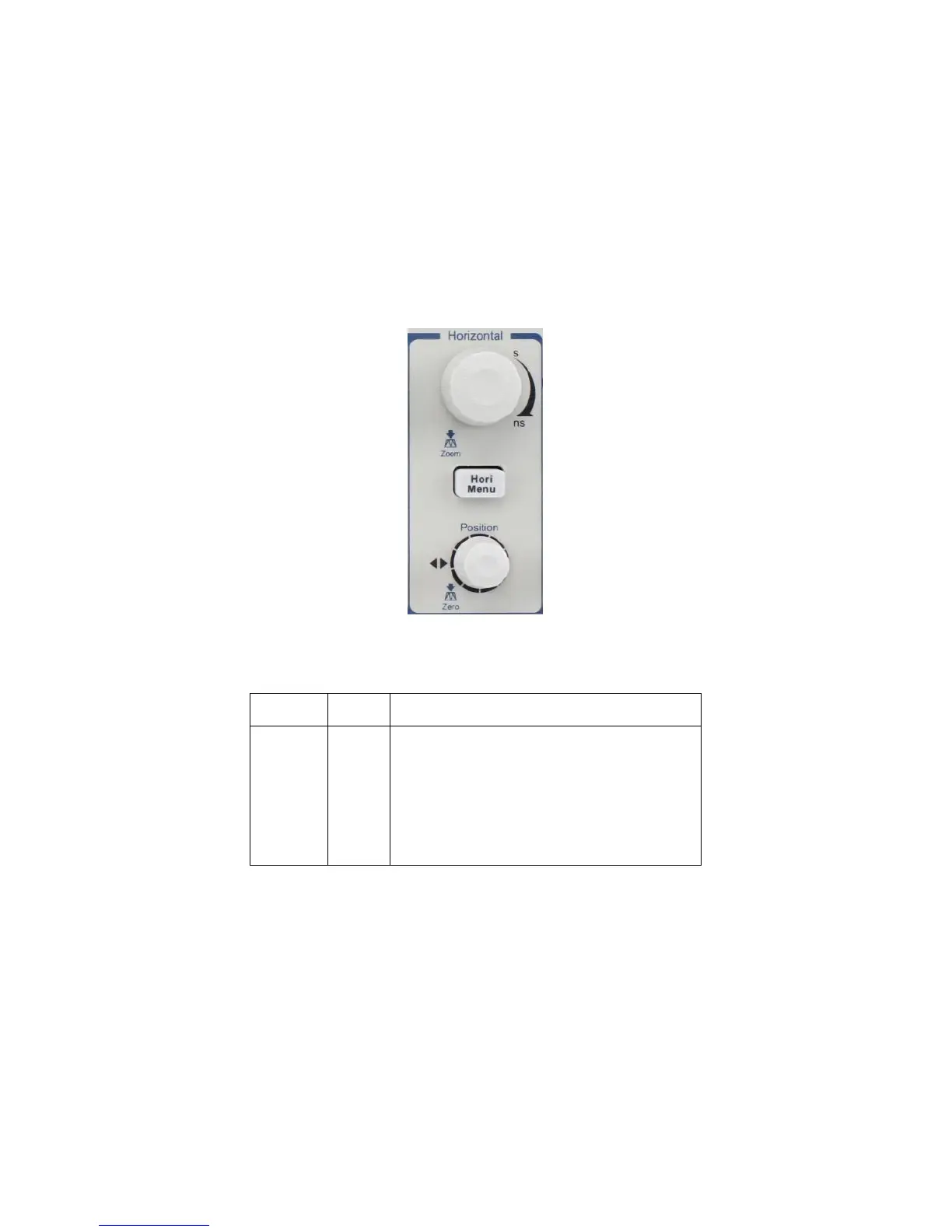

Shown below are two knobs and one button in the HORIZONTAL area.
Figure 3.18 – Horizontal Controls
Table 3.15 – Horizontal System Function Menu
Option
Setting
Description
Delayed
On
Off
Turn on this function for main time base
waveform to display on the top half screen
and window time base waveform to display
on the below half screen at the same time.
Turn off this function to only display main
time base waveform on the screen.
Horizontal Control Knob
You can use the horizontal controls to change the horizontal scale and
position of waveforms. The horizontal position readout shows the time
represented by the center of the screen, using the time of the trigger as
