138
6. Press the “CurB” option button and turn the universal
knob to place the cursor B on the lowest peak of the
ring.
You can see the following measurements on the top of the
left screen:
The delta voltage (peak-to-peak voltage of the
ringing)
The voltage at Cursor A.
The voltage at Cursor B.

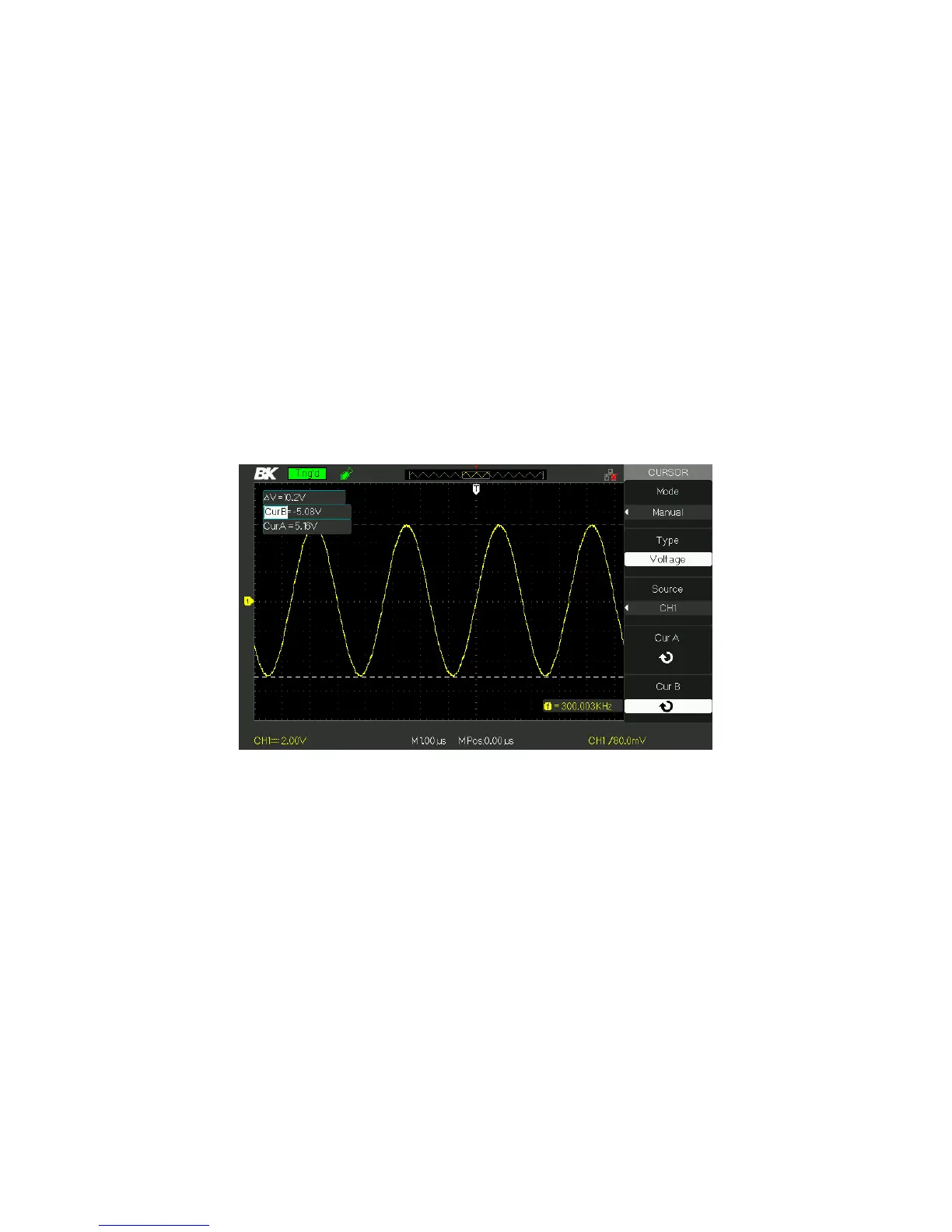

Figure 4.2 – Taking Cursor Measurements (Voltage)
4.3 Capturing a Single-Shot Signal
To capture a single event, you need to gather some knowledge of the
signal in order to correctly set up the trigger level and slope. If you are not
sure about the instance of the signal, you can observe it through auto or
normal trigger mode to ensure the trigger level and slope will capture the
signal.
