3. Press the “Type” option button and select “Time”.
4. Press the “Source” option button and select“CH1”.
5. Press the “CurA” button and turn the universal knob to
place the cursor A on one peak of the ring.
6. Press the “Cur B” button and turn the universal knob to
place the cursor B on the nearest peak of the ring.
You can see the delta time and frequency (the measured ring
frequency) on the top left of the screen.

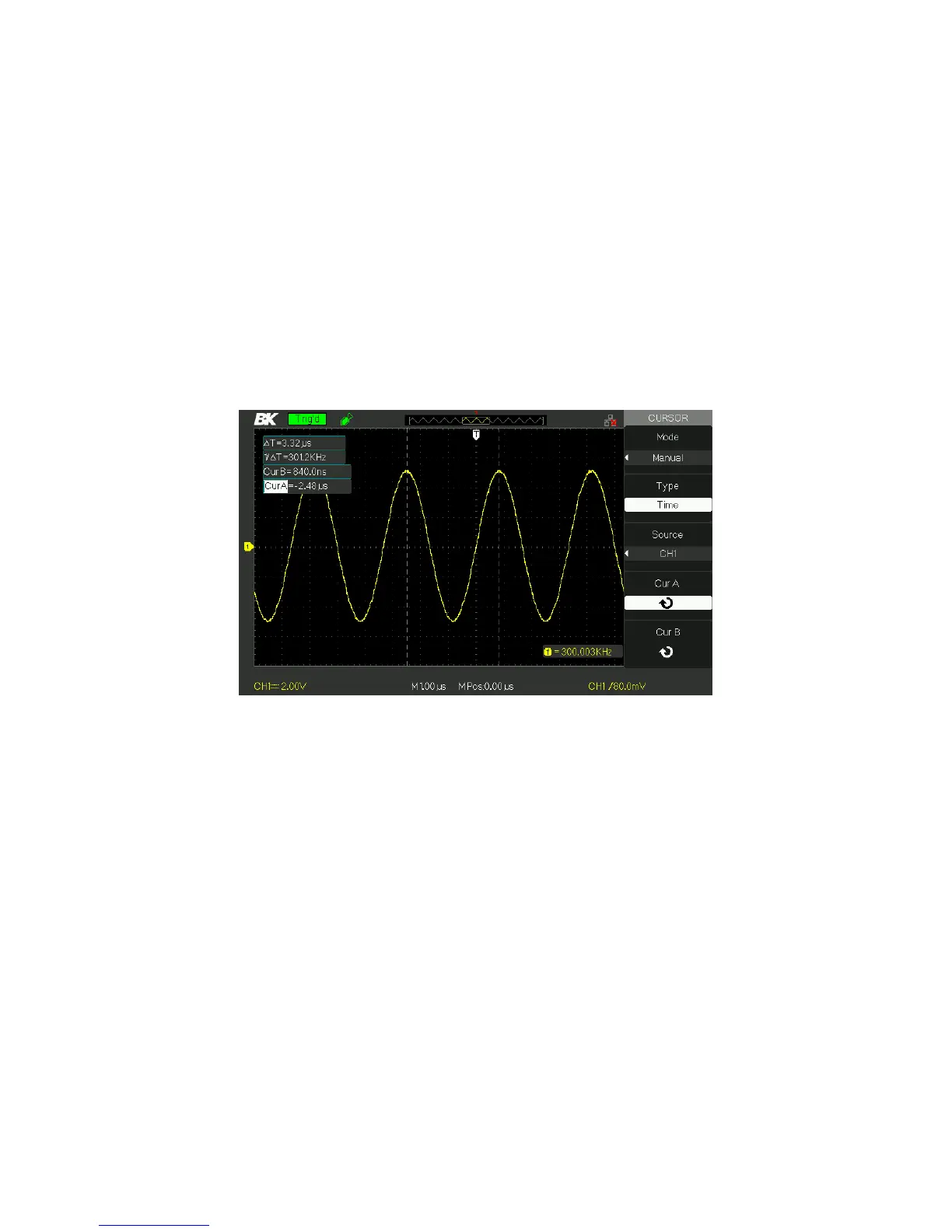

Figure 4.1 – Taking Cursor Measurements (Time)
 Measuring Ring Amplitude
To measure the amplitude, follow these steps:
1. Press the “CURSORS” button to see the Cursor Menu.
2. Press the “Mode” button to select “Manual”.
3. Press the “Type” option button and select “Voltage”.
4. Press the “Source” option button and select “CH1”.
5. Press the “CurA” option button and turn the universal
knob to place the cursor A on the highest peak of the
ring.
