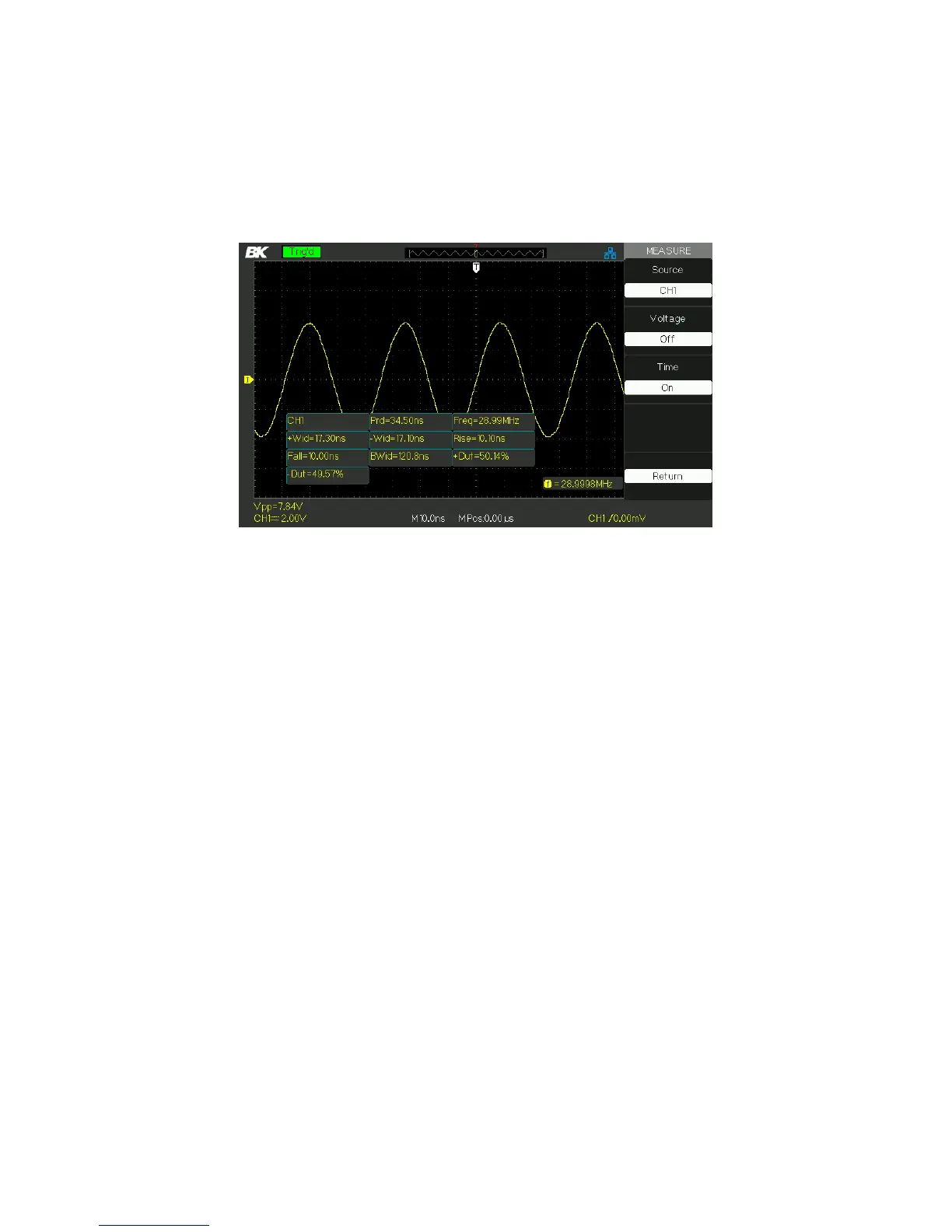

Figure 3.42 – Measuring All Time Parameters
3.15 Storage System
As shown below, the “SAVE/RECALL” button enters the “Storage System
Function Menu”.
The oscilloscope can save and recall up to 20 instrument settings and 10
waveforms in internal memory. There is a USB Host interface on the front
panel of the oscilloscope where you can save setup data, waveform data,
waveform display image, and CSV file to a USB flash drive. Setup data and
waveform data that are saved to a USB flash drive can be recalled on the
oscilloscope. For picture data and CSV file, a computer must be used to
view them.
Using SAVE/RECALL Screen
The SAVE ALL screen is divided into functions based on Directory
or Files.
Directory shows option buttons for New Directory, Delete Folder,
and Load.
