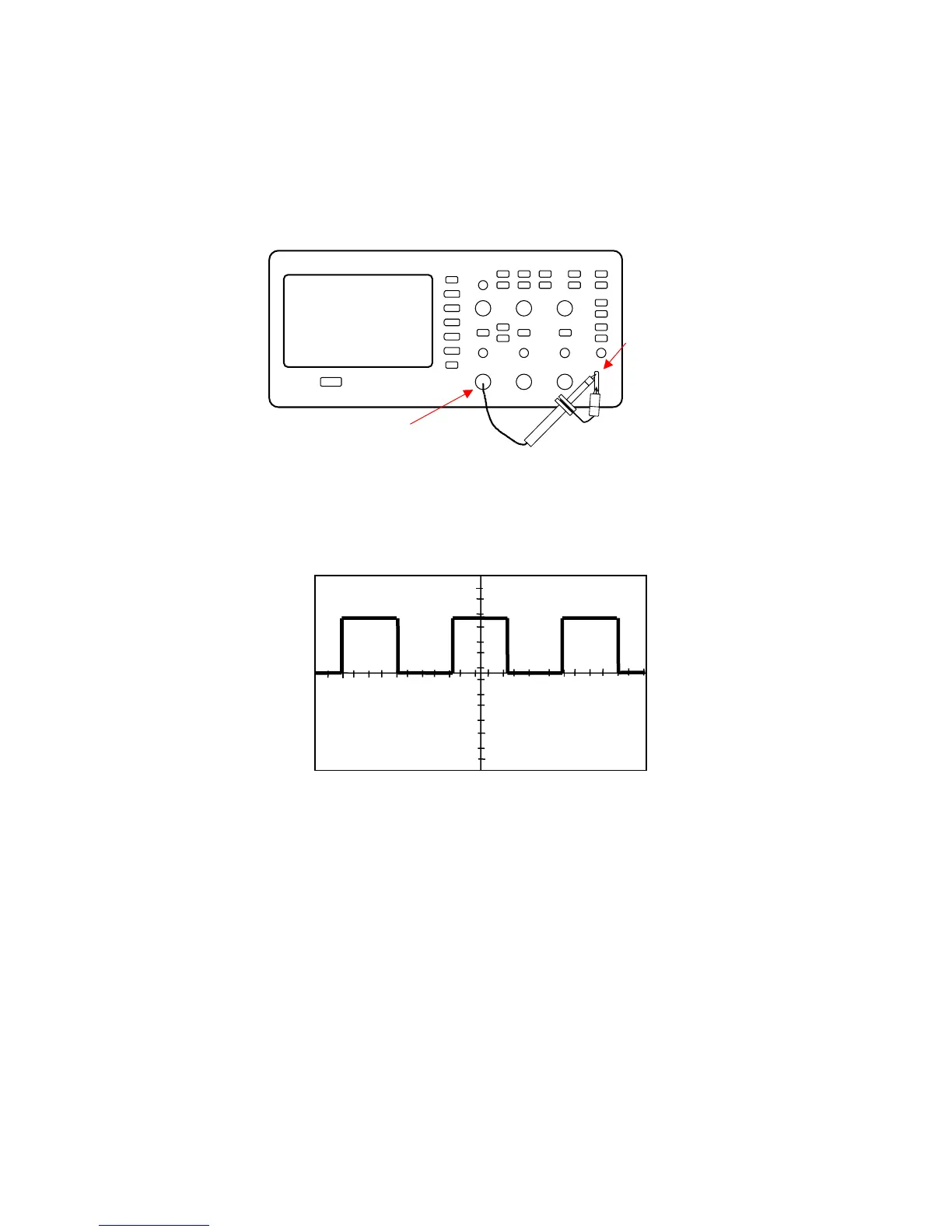

Figure 2.3 – Probe Compensation
3. Press “AUTO” to show the 1 kHz frequency and about 3V peak-
peak square wave in couple seconds.
Figure 2.4 – 3 Vpp Square Wave
4. Press “CH1” two times to turn off channel 1, Press“CH2” to
change screen into channel 2, reset the channel 2 as step 2 and
step 3.
