Overview
13

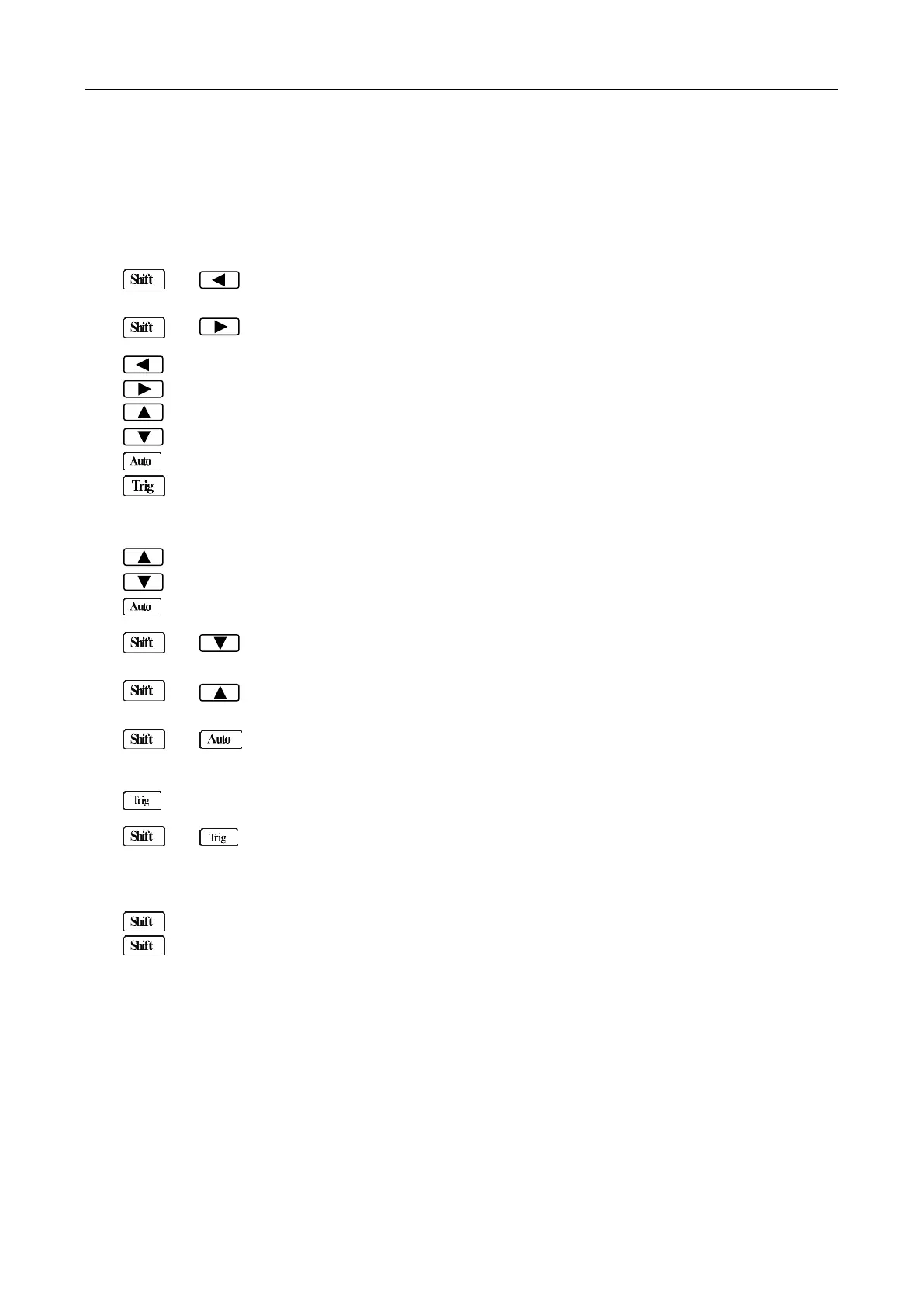

1. Measurement function keys
Select measurement function: DC voltage and current, AC voltage and current, 2-wire and 4-wire
resistance, frequency, period, continuity and diode test.
2. Math function keys
Select math function: mX+b, %, dB, dBm and Rel.
3. Menu operation keys
→ Open/Close menu
→ Recall the menu performed last
Move through selections within menu level, sub-menu level or parameter level
Move through selections within menu level, sub-menu level or parameter level.
Move up a level.
Move down a level.
(ENTER) Save the changes made on “parameter” level, and return to the “sub-menu” level.
(ESC) Cancel the changes made on “parameter” level, and return to the “sub-menu”
level.
4. Range and measurement speed keys
Select a higher range and disable auto ranging.
Select a lower range and disable auto ranging.
Toggle between auto ranging and manual ranging.
→ Set measurement speed to Fast.
→ Set measurement speed to Medium.
→ Set measurement speed to Slow.
5. Trig/Hold Key
Trigger a measurement from the front panel.
→ Hold a stable reading on the display when selected numbers of samples are
within the selected tolerance.
6. Shift/Local keys
Used to access shifted keys (labels are in blue).
(LOCAL) Exit remote operation and set back to local operation.
