Note: Source current flows from the INPUT HI to INPUT LO terminals

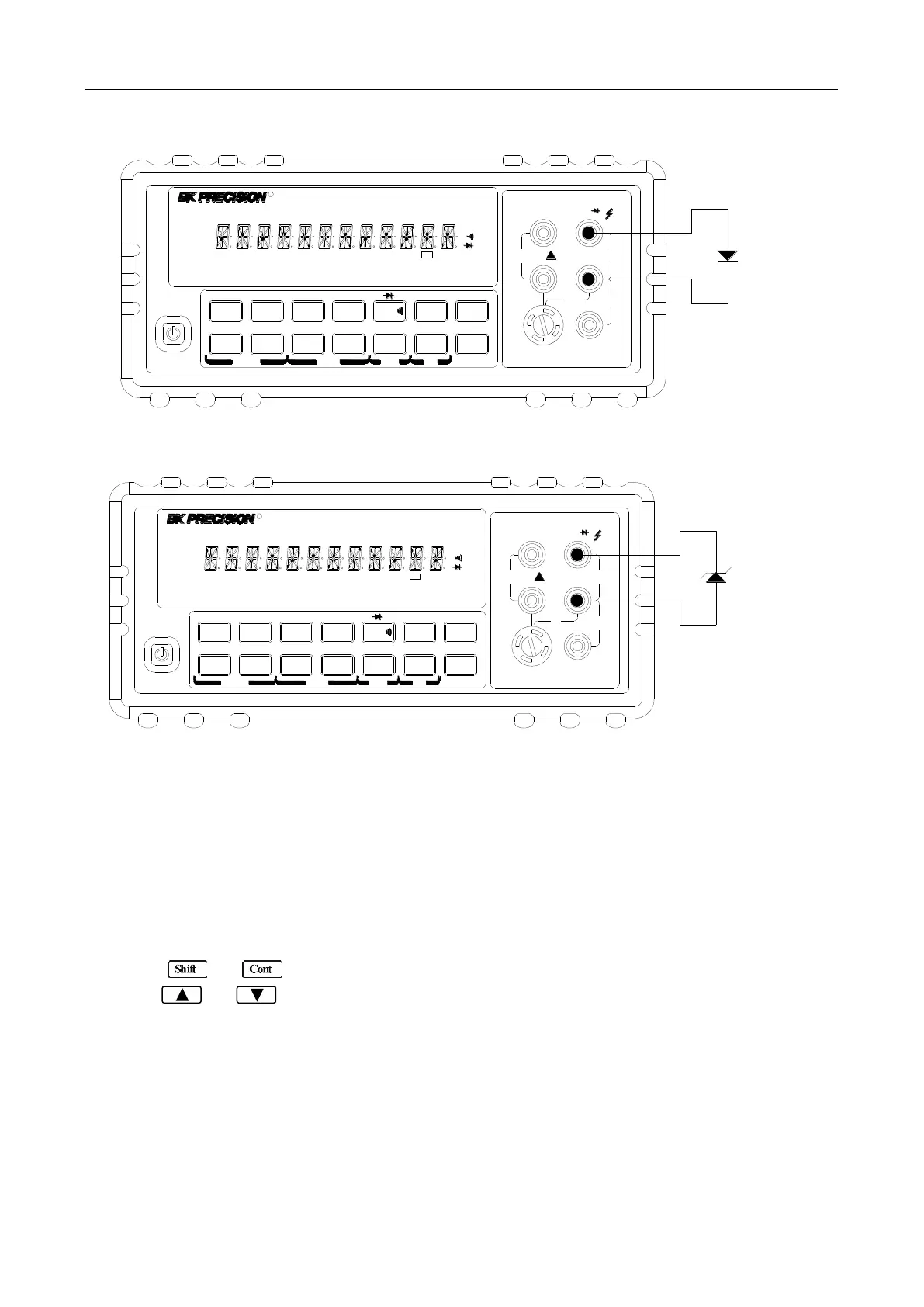

Figure 3-6 Diode Measurement
3.7.2 Current Range
You can set the test current range from the front panel. The choices are 1 mA, 100 μA, and 10 μA. The
factory default current range is 1 mA. To set the test current, follow the steps below:
1. Press → for diode measurement function
2. Using and keys to scroll through the three test current selections.
The diode test function measures voltage on the 3V range for the 1 mA test current and the 10 V range
for the 100 μA and 10 μA ranges. If a reading is more than 10V, the multimeter will display the
“OVR.FLW” message.
