BK Precision 9130B

7
1.7 Keypad Overview

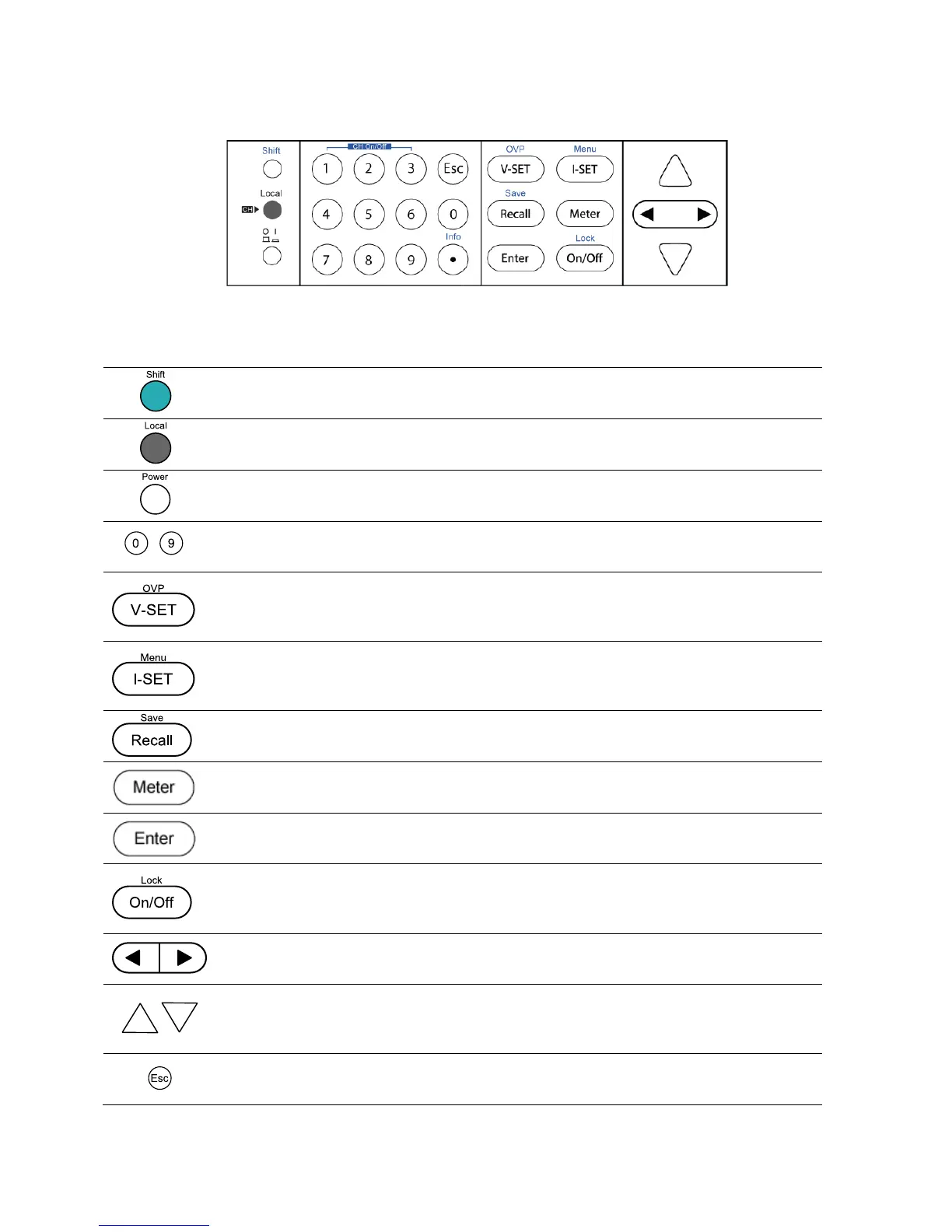

Figure 3 - Keypad
Keypad Description
Shift key
Enables access to secondary functions (Labeled in blue)
Local key
Sets the instrument back to local mode.
Power key
Power on the instrument.
~
Numeric keypad
Enters numeric values for various parameters.
V-set / OVP button
Configures output voltage or sets the overvoltage protection point for the
power supply.
I-set / Menu button
Configures output current or allows access to the power supply menu
settings.
Recall / Save button
Saves and recalls instrument settings.
Meter
Switches from set value display to measured output value display.
Enter
Confirms setting
Output / Lock button
Controls output On/Off state of the power supply or used to lock the front
panel buttons.
Left/Right arrow keys
Adjusts cursor position or select menu items.
Up/Down arrow keys
Used to select menu items or increase/decrease output voltage or current
values.
Esc key
Cancel and return to previous menu.
