31
by the wire connections in the rear panel as shown below.

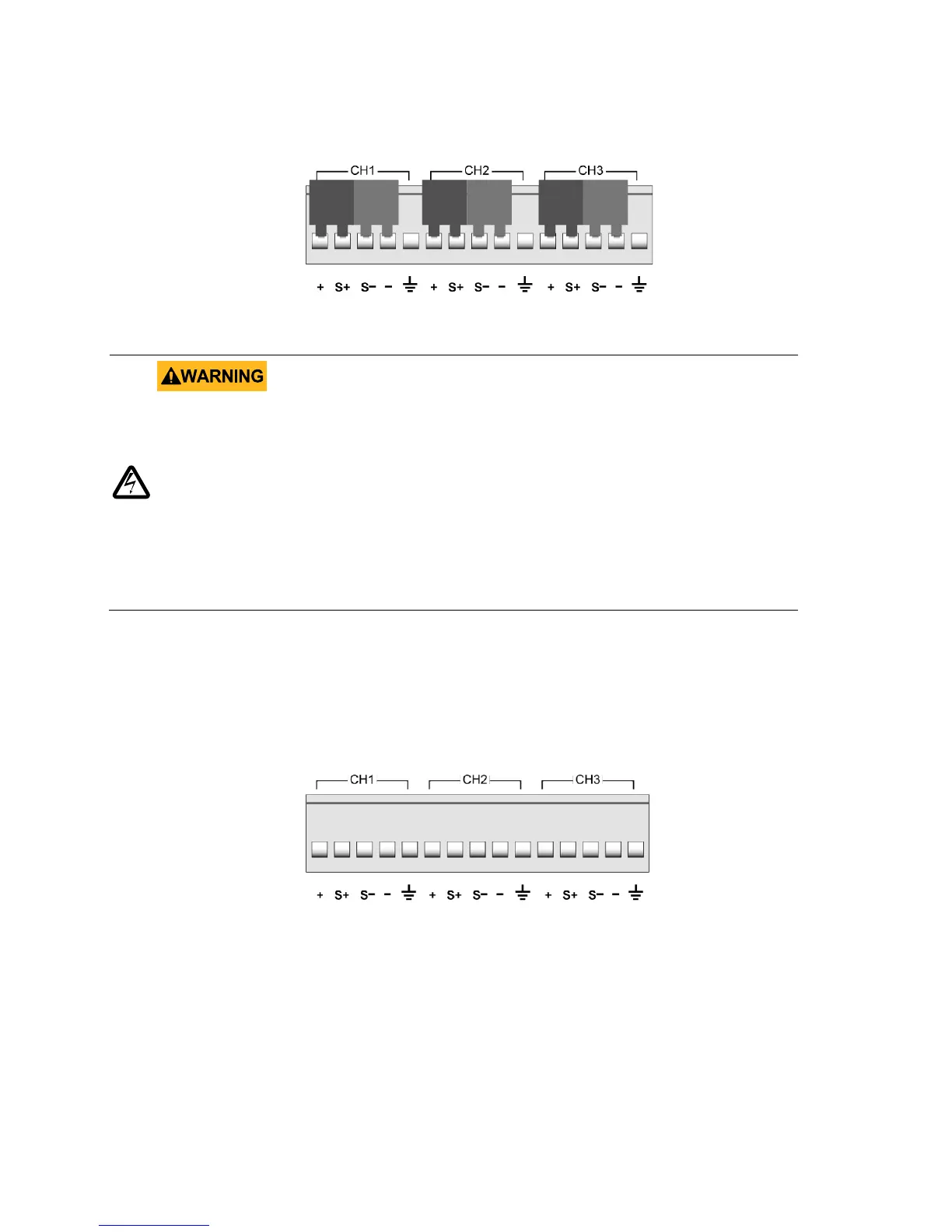

Figure 15 - Jumpers installed for local sense
DO NOT disconnect the jumpers if remote sense is not used. Doing so will cause
erratic behavior and may damage the power supply under certain conditions.
Never connect any power source into any of the terminals at any time during
operation.
When output is enabled, DO NOT use your hands to touch the terminals or the
screws that are designed to tighten wires to the terminals. Doing so may create a
shock hazard under high voltage output conditions.
Remote Sense
To enable remote sense, follow the steps below for each channel:
1. Power OFF the supply and disconnect all loads and cables connected to it.
2. Use a small flat blade screwdriver to loosen and remove the jumper wires as shown
below.
Figure 16 - Sense jumpers removed
1. Connect wires to the DUT as illustrated in Figure 20. Make the connections between +
and S+ and S- and – for each channel that will be using remote sense. The S+ and S-
wires should be twisted as illustrated to minimize noise.
