Chapter 3: Installation
724-746-5500 | blackbox.com
Page 13
3.1.2 Using the VESA Mounting Bracket
The optional mounting bracket conforms to the VESA mounting standard and so can be used to mount a ServSwitch Agility unit
directly to the rear of most video display units. The bracket can also be fixed directly to a wall or other solid surface using appro-
priate screws or bolts.

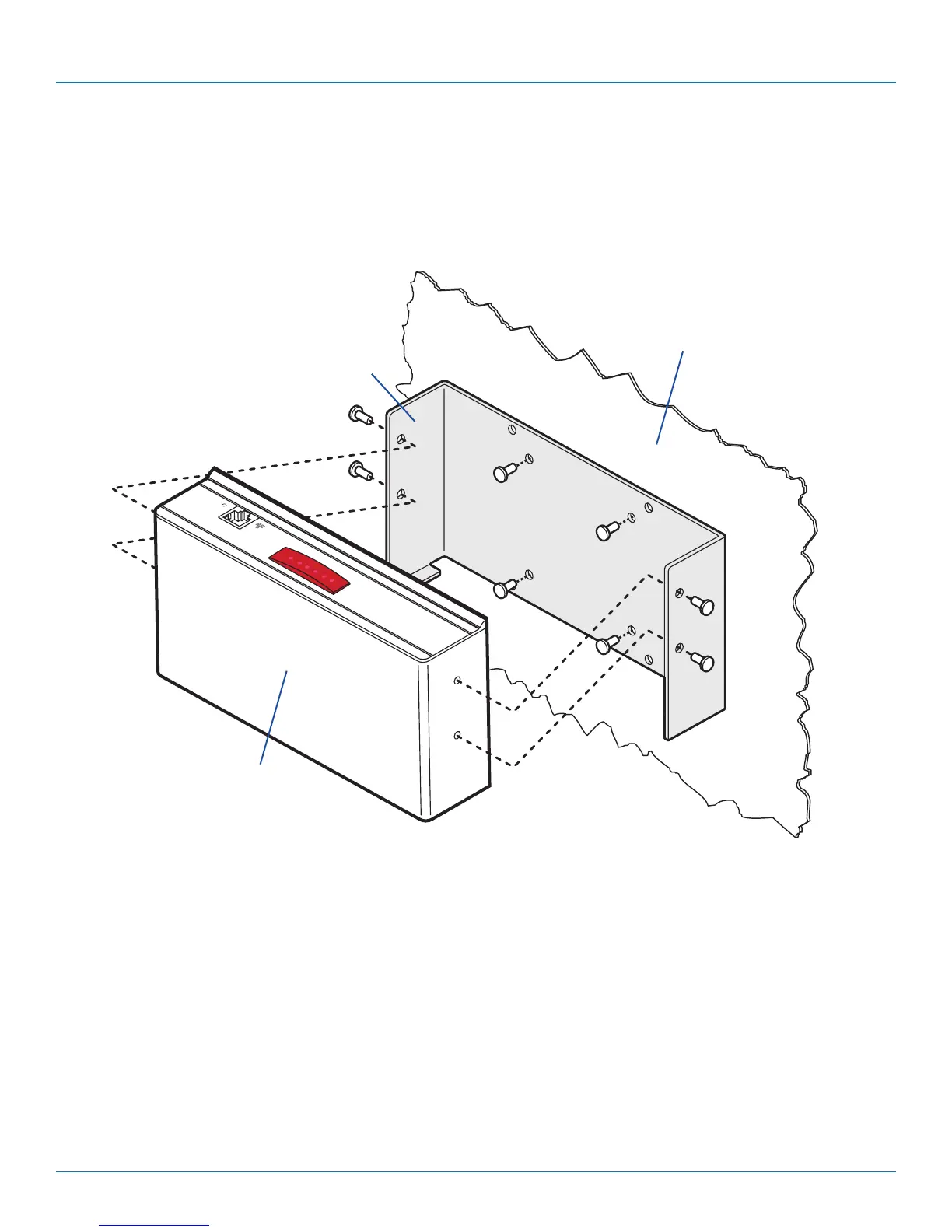

1 Orientate the bracket against the rear of the video display so that its small folded-in tabs are lowermost:
NET SER AUD USB DVI PWR
Rear panel of video display
ServSwitch
Agility unit
VESA mount-
ing bracket
2 Attach the bracket to the video display using four screws of a size appropriate to the threaded holes within the video display
panel - do not overtighten.
3 Place the ServSwitch Agility unit into the bracket with its base facing towards the video display and the front panel of the
ServSwitch Agility unit facing upwards.
4 Secure the ServSwitch Agility unit to the bracket using the four supplied screws - do not overtighten.
