Black Box ACR1012A-T

ServSwitch Agility Dual with VNC
724-746-5500 | blackbox.com
Page 12
AUX
LINE IN/
LINE OUT
SER CONSOLE
MIC IN
1
2
INDOOR
USE ONLY
OPTIONS
LINE IN/
LINE O
DVI-D
1 2
USER CO
5V
2.5A
MIC IN
3. Installation
3.1 Mounting
There are three main mounting methods:
•Viathe(4)suppliedself-adhesiverubberfeet
•Viaoptionalrackmountbrackets
• ViatheoptionalVESAmountingbracket

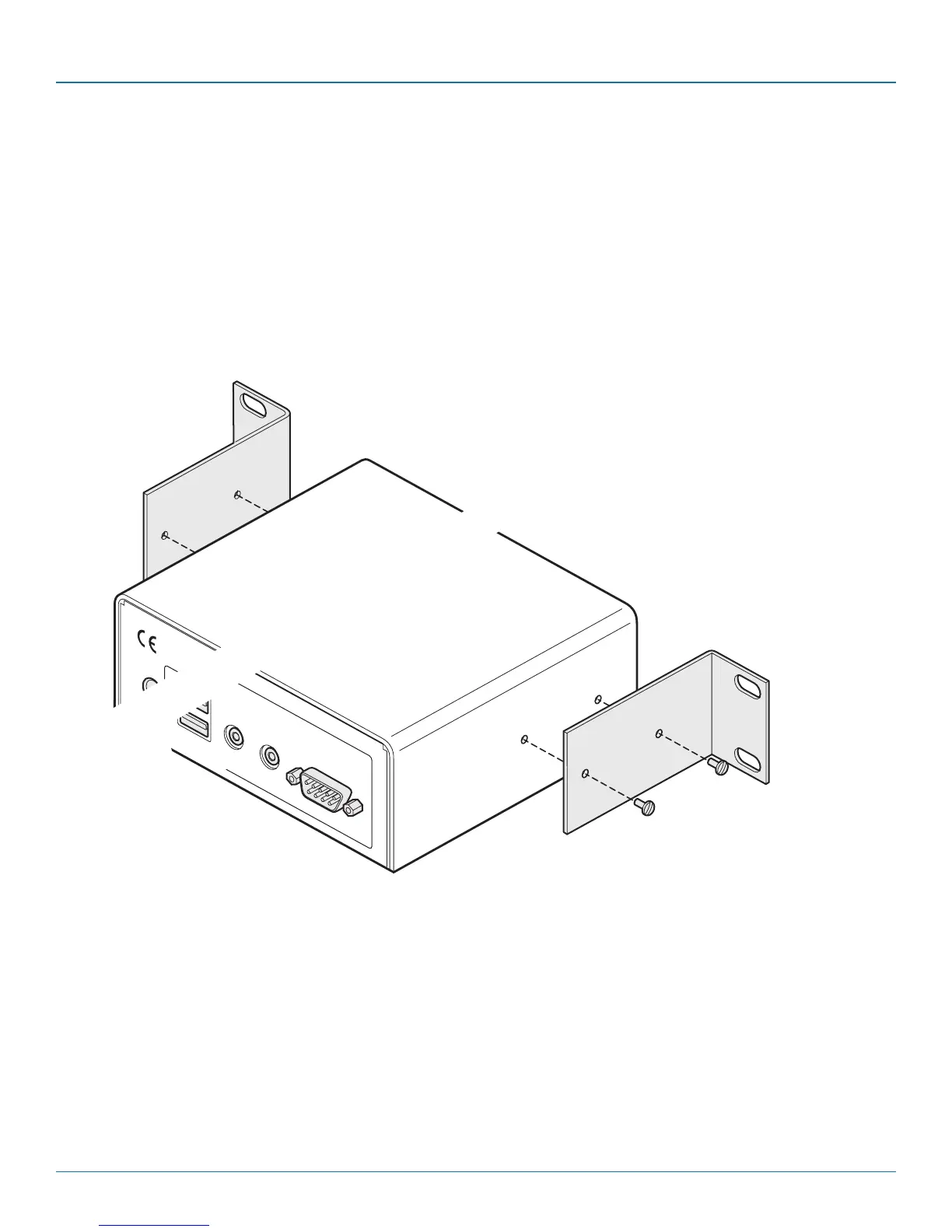

3.1.1 Rack Brackets
The optional brackets (plus four screws), enable the unit to be secured within a standard rack slot:
NOTE: The ServSwitch Agility Dual with VNC unit and its power supply generate heat when in operation and will become warm
to the touch. Do not enclose them or place them in locations where air cannot circulate to cool the equipment. Do not operate
the equipment in ambient temperatures exceeding 104° F (40° C). Do not place the products in contact with equipment whose
surface temperature exceeds 104° F (40° C).
