3.2.2 Local video link(s)
ServSwitch Agility Dual with VNC units can simultaneously support up to two Single Link high resolution video displays at pixel
clocks up to 165MHz; or can alternatively support a single Dual Link very high Resolution video display at pixel clocks up to
330MHz (equating to an example display mode of 2560 x 1600 at 60 Hz refresh). Use either a standard DVI-D cable (or
optionally a Dual Link DVI-D cable) to connect the primary video port of the computer system to the DVI-D-1 connector of
the ServSwitch Agility Dual with VNC. For dual link connections, a similar dual link cable must also be used at the remote unit.
Note: When using one very high resolution DVI-D dual link display, use a DVI-D Dual Link cable to connect the primary video port
of the computer system to the DVI-D-1 connector of the ServSwitch Agility Dual with VNC. A dual link cable must also be used at
the RX unit.
1 Wherever possible, ensure that power is disconnected from the ServSwitch Agility Dual with VNC and the host computer.

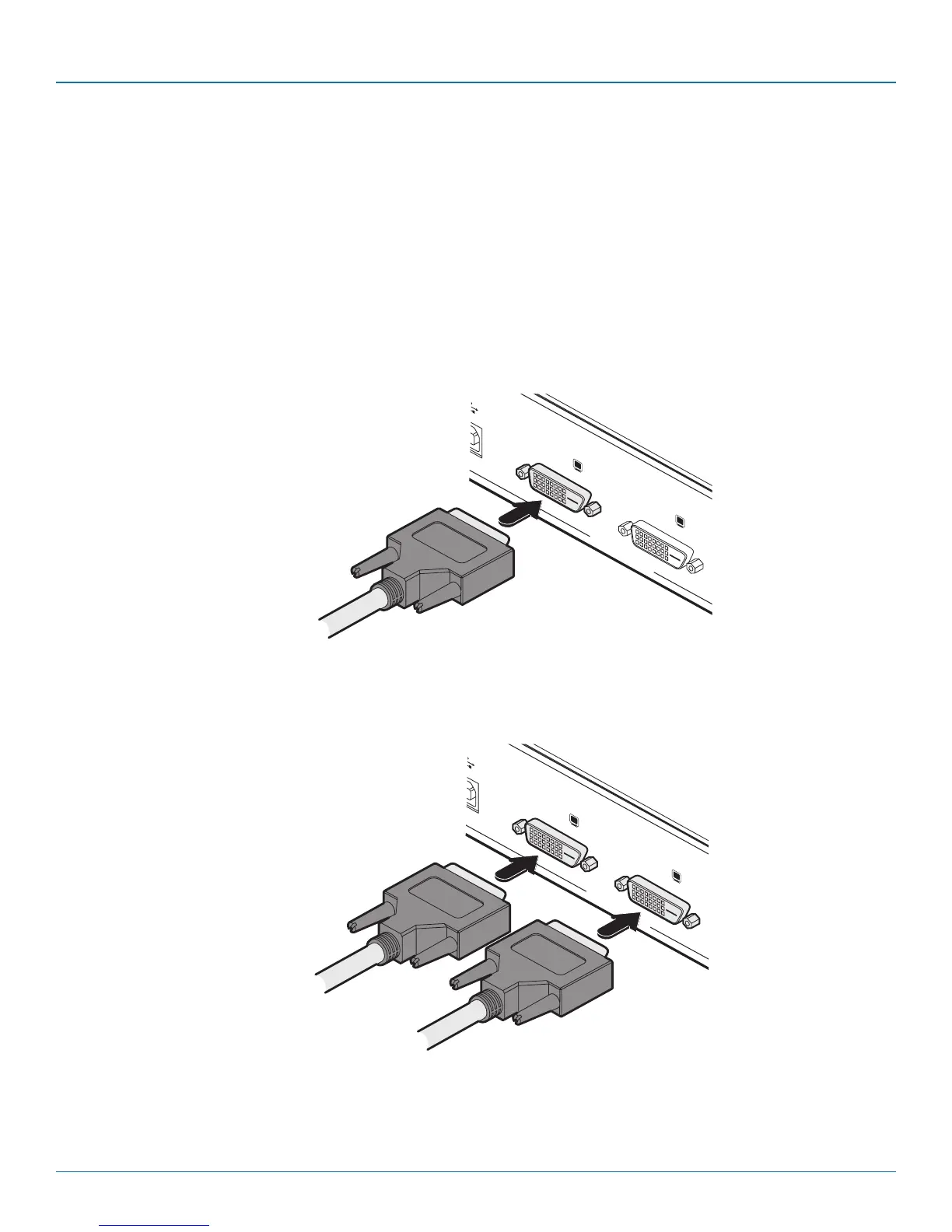

2 Connect a standard or dual DVI-D link cable to the DVI-D-1 socket on the Local unit rear panel:
3 Connect the plug at the other end of the cable to the corresponding video output socket of the host computer.
4 If a secondary DVI-D link is required, repeat steps 2 and 3 for the DVI-D-2 socket:
To Next Page
