ServSwitch Agility Dual with VNC
724-746-5500 | blackbox.com
Page 20
3.2.7 High speed links
ServSwitch Agility Dual (and Dual with VNC) units can be either connected directly to each other or via a high speed network.
The connections can be copper-based Gigabit Ethernet as well as Fibre Channel over Ethernet (FCoE). These can be used in paral-
lel to provide up to 2 Gigabit connections speeds.
A single System port (Gigabit Ethernet) is provided as standard on the right side of the front panel. Additionally, the Teaming port,
located just to the left, allows you to insert either an optional Fibre Channel SFP module or Active Copper SFP module. The cho-
sen module can then allow either a fibre optic or additional Gigabit Ethernet link to be used in parallel with the fixed System
(Gigabit Ethernet) port.
3.2.7.1 Using the Teaming port

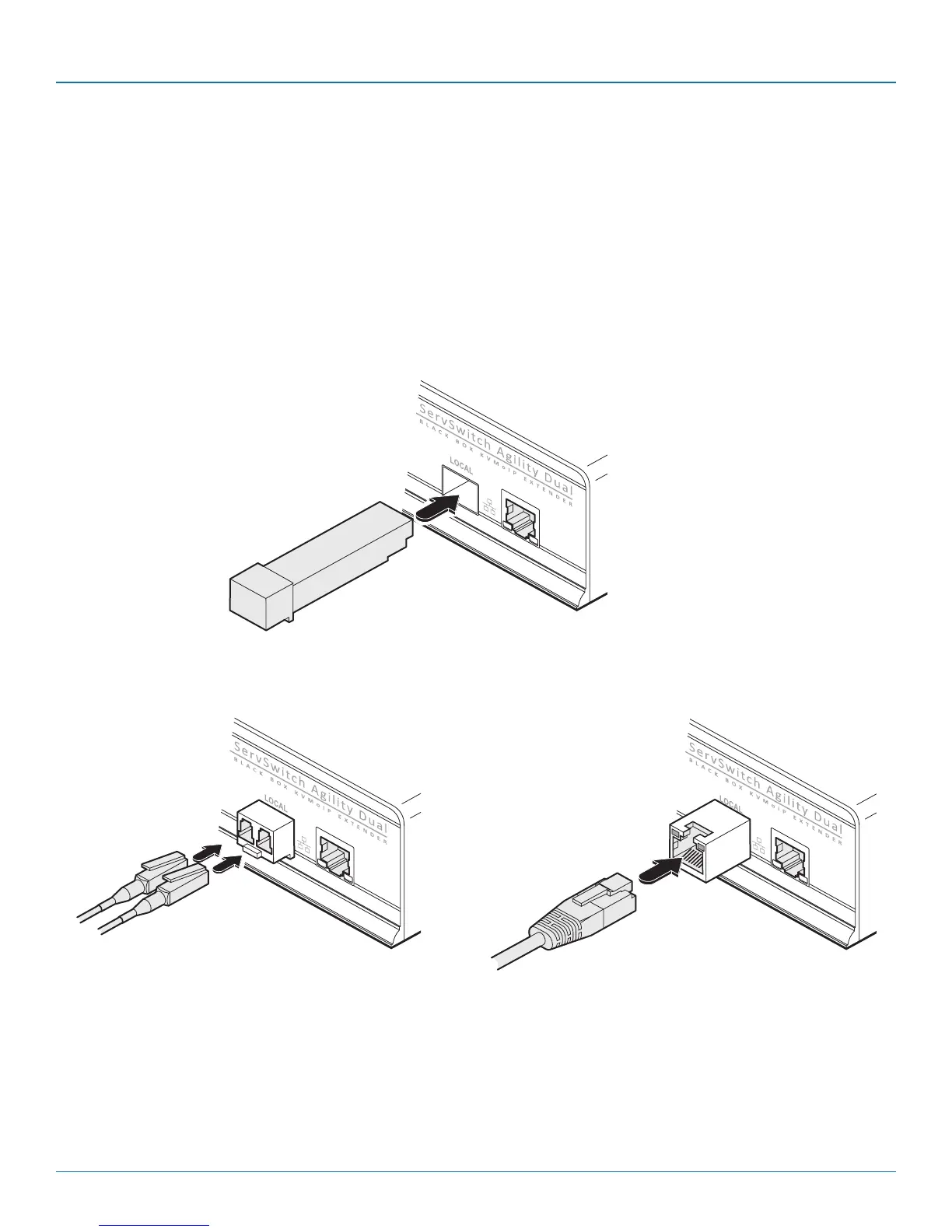

1 Insert an appropriate optional SFP module into the aperture on the front panel:
2 Make your connection(s) between the chosen SFP module and either the other Agility Dual unit or a suitable network switch:
Connect the transmit and receive
fibre optic links to the sockets on
the Fibre Channel SFP module.
Then close the latch over the link
connectors to lock them into place.
Transmit and
receive fibre links
Optional Fibre Channel or
Active Copper SFP module
Connect a CAT 5, 5e, 6, or 7 cable
to the socket on the Active Copper
SFP module.
or
To Next Page
