Chapter 5: Operation
724-746-5500 | blackbox.com
Page 45
5. Operation
In operation, many ServSwitch Agility installations require no intervention once configured. The local transmitter and remote
receiver units take care of all connection control behind the scenes so that you can continue to work unhindered.
5.1 Front Panel Indicators

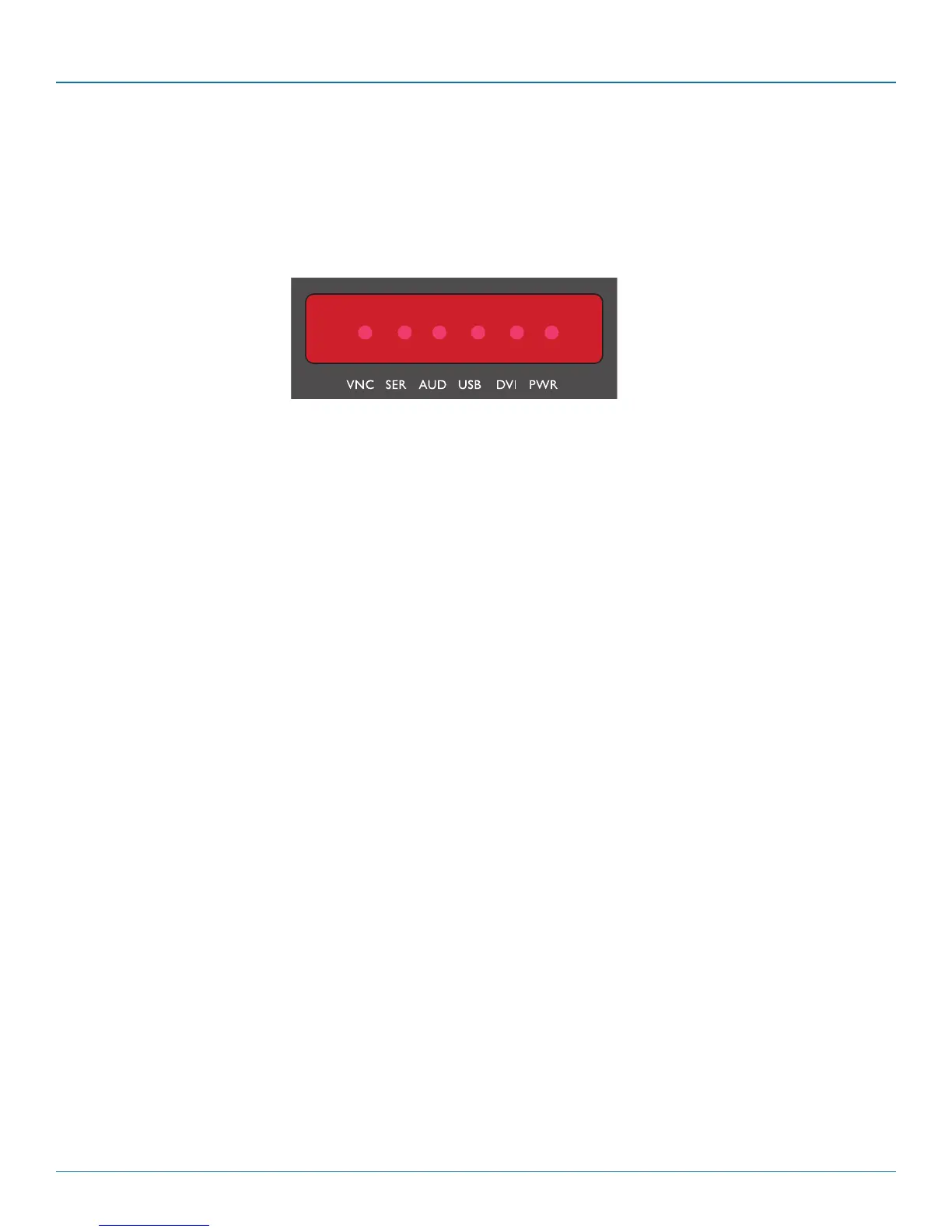

The six front panel indicators on the ServSwitch Agility Dual with VNC unit provide a useful guide to operation.
These six indicators clearly show the key aspects of operation:
• VNCOn when a remote VNC connection is in progress.
• SEROnwhentheAUX(serial)portisenabledandactive.
• AUDOnwhenaudioisenabledandactive.
• USBOnwhenUSBisenabledandactive.
• DVIOnwheneitherorbothDVIvideochannelsareenabled.
• PWRPowerindicator.
