ServSwitch Agility Dual with VNC
724-746-5500 | blackbox.com
Page 14
3.2 Connections
Installation involves linking the ServSwitch Agility Dual with VNC local transmitter unit to various ports on the host computer,
while a ServSwitch Agility or Agility Dual remote receiver unit is attached to your peripherals.
3.2.1 VNC network link
The ServSwitch Agility Dual with VNC contains a VNC server that allows you to transmit a low-bandwidth version of the video
output across standard networks to authorized remote viewers.
The VNC link can either be made over the same network as the main System Ethernet port output or via a separate one. In either
case, a separate VNC network port is located on the left side of the Agility Dual with VNC front panel for the purpose.

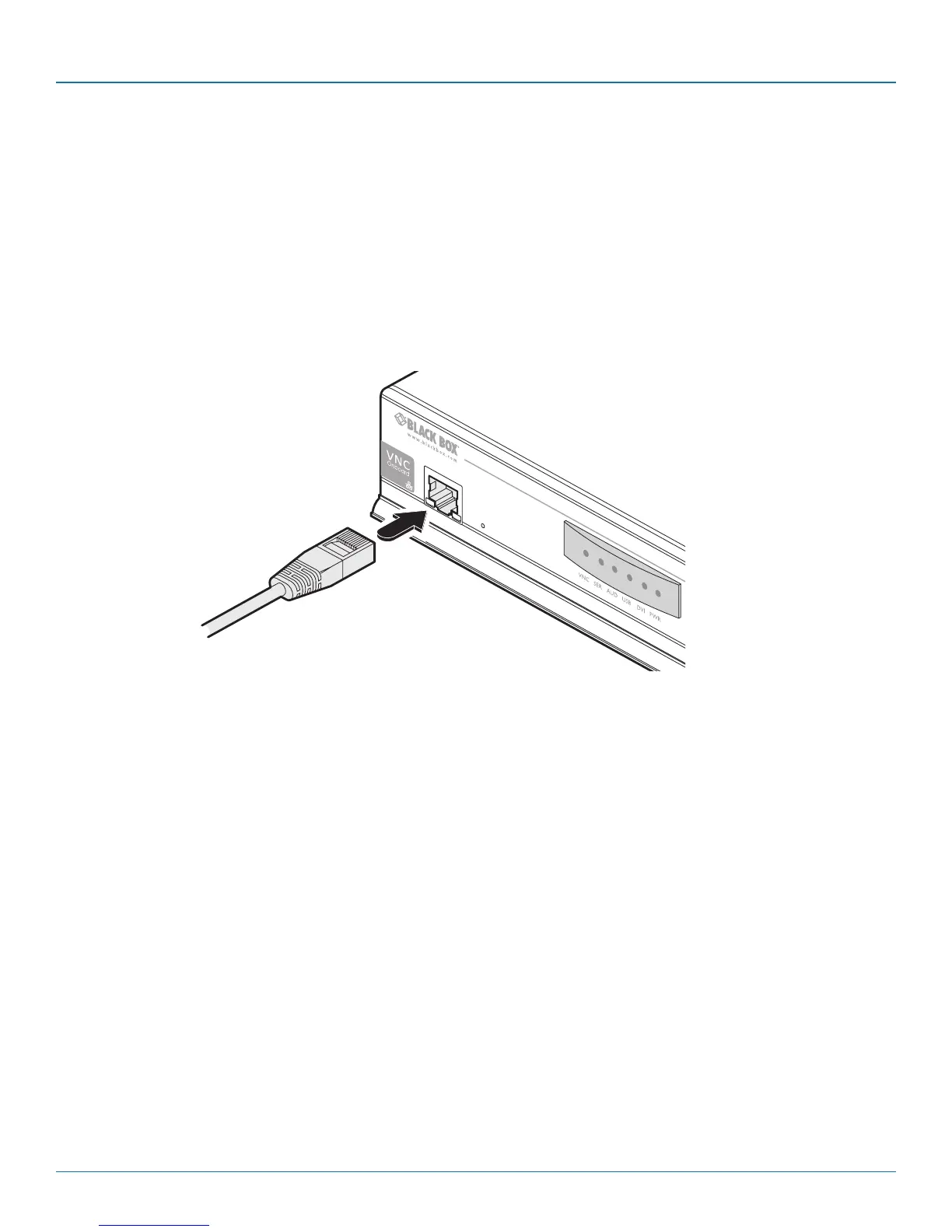

1 Connect a CAT 5, 5e, 6, or 7 cable to the VNC socket on the left side of the front panel:
2 Connect the other end of the cable to an Ethernet switch.
