Chapter 4: Configuration
You can access the menu in two ways: OSD or Java.

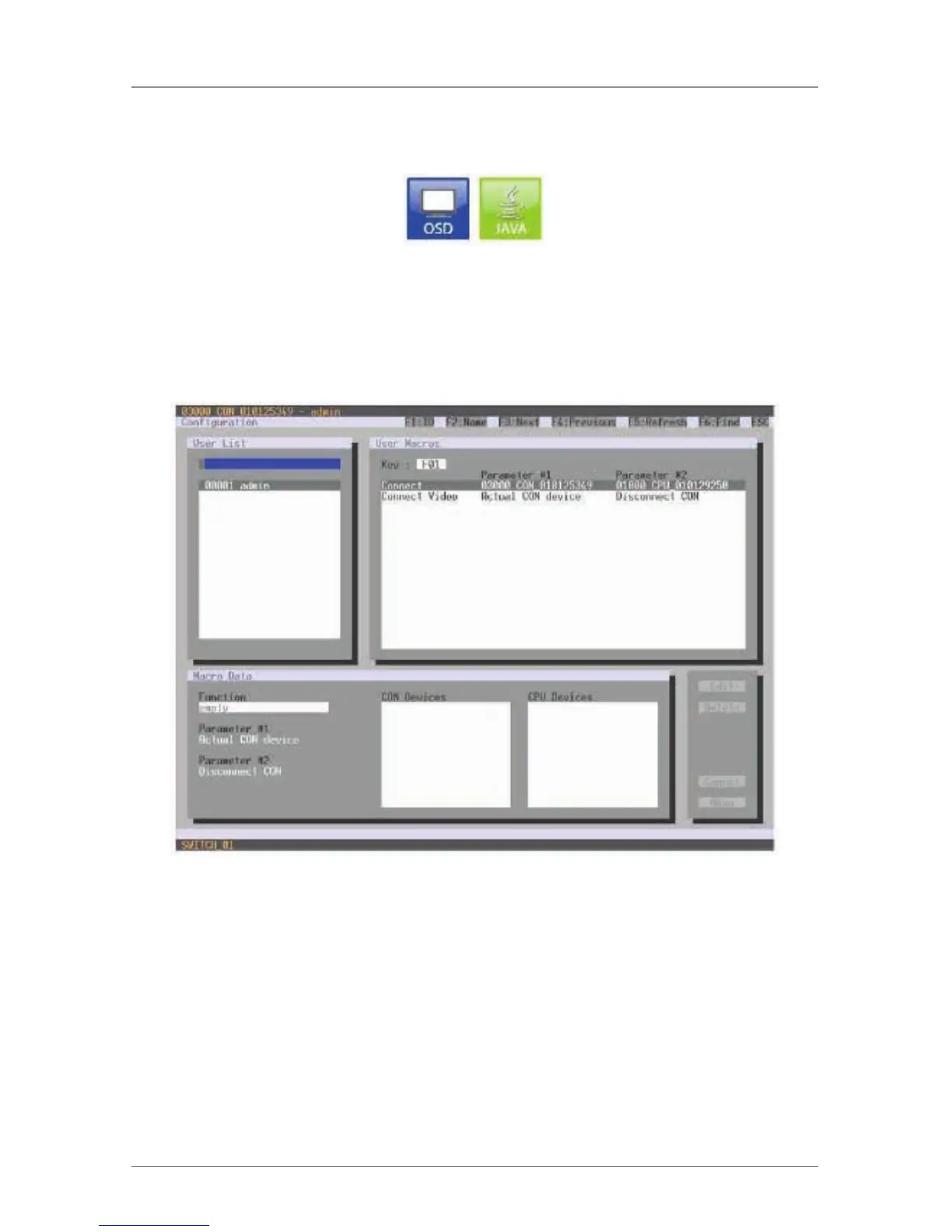

Figure 4-40. OSD and Java icons.
OSD
Select the user that you want to create a user macro for from the “Configuration
> User Macros” in the main menu.
Figure 4-41. Menu Configuration - User Macros.
To create a macro for the selected user, proceed as follows:
1. Select the key for which a macro has to be created. Choose from 1–16.
2. Select the respective place on the list (1–16) of the key that has to be set with a
macro key.
3. Select the marked place on the list a macro command in the “Macro Data”
field.
