Chapter 2: Overview
2.5.15 ServSwitch DKM FX Compact 80-Port (ACXC80)

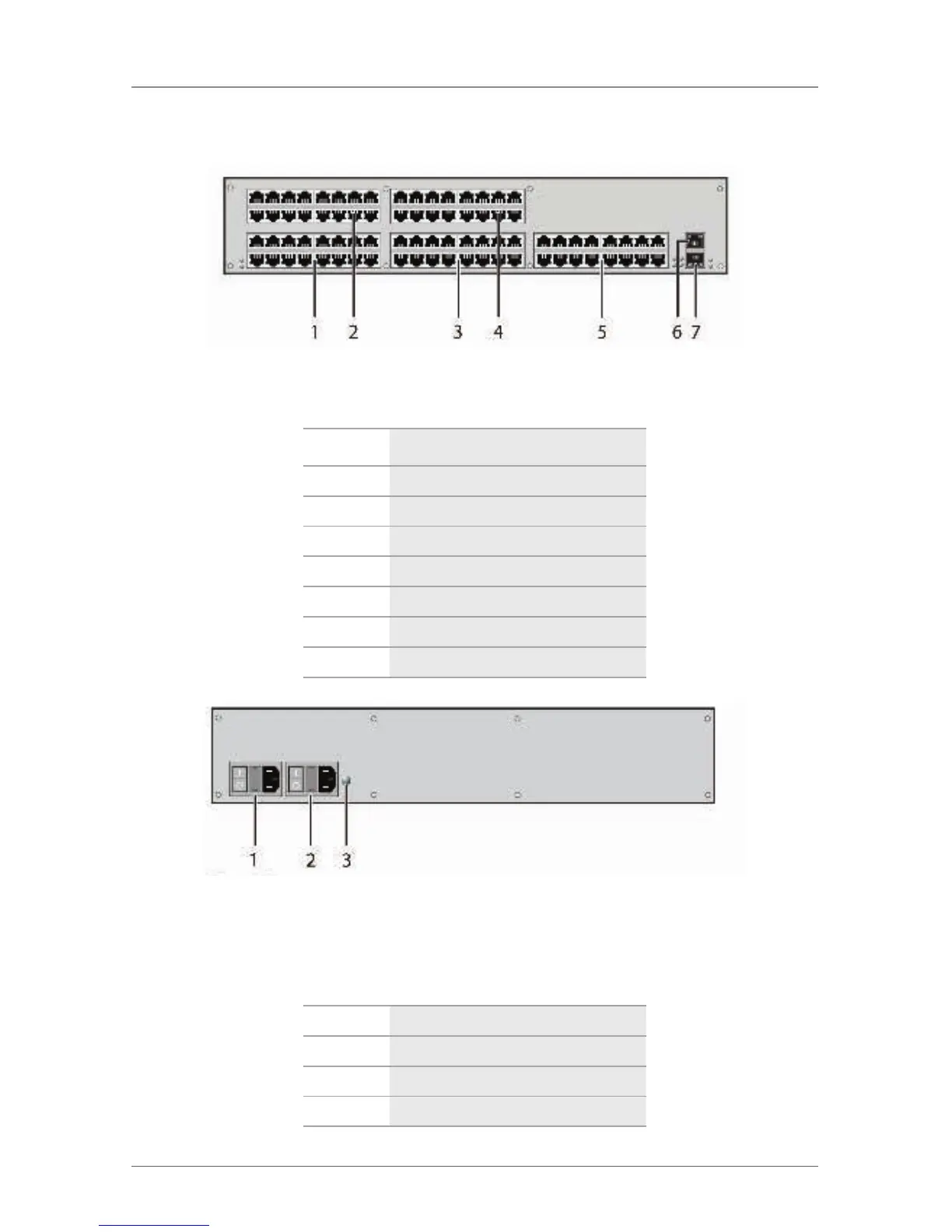

Figure 2-24. Front view, ACXC80.
Table 2-26. ACXC80 components.
Number Component
1 I/O ports 1–16 (CATx)
2 I/O ports 49–64 (CATx)
3 I/O ports 17–32 (CATx)
4 I/O ports 65–80 (CATx)
5 I/O ports 33–48 (CATx)
6 Serial connection (RJ-45)
7 Network connection (RJ-45)
Figure 2-25. Back view, ACXC80.
Table 2-27. ACXC80 back-panel components.
Number Component
1 Power supply unit 1
2 Power supply unit 2
3 Grounding
