Chapter 2: Overview

2.5.3 ServSwitch DKM FX 160-Port (ACX160)

1 2 3 4 5 6 8 7

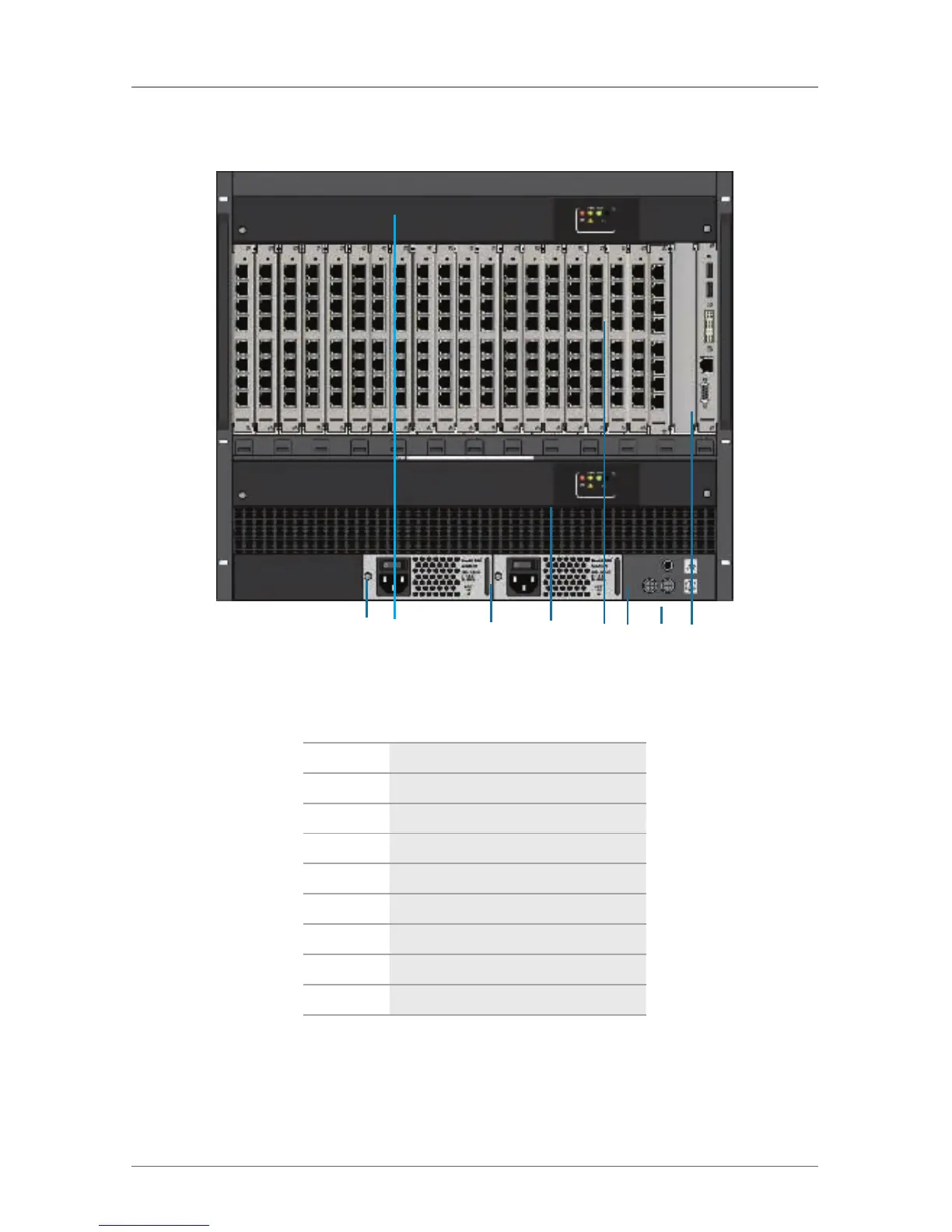

Figure 2-4. Front view, ACX160.

Table 2-6. ACX160 components.

Number Component

1 Slot for Power Supply Unit 1

2 Slot for Fan Tray 1

3 Slot for Power Supply Unit 2

4 Slot for Fan Tray 2

5 Slot for I/O Boards 1–36

6 Slot for Power Supply Unit 3

7 Slot for CPU board

8 Grounding
