Chapter 2: Overview
2.5.11 ServSwitch DKM FX Compact 48-Port (ACXC48)
1 2 3 4 5

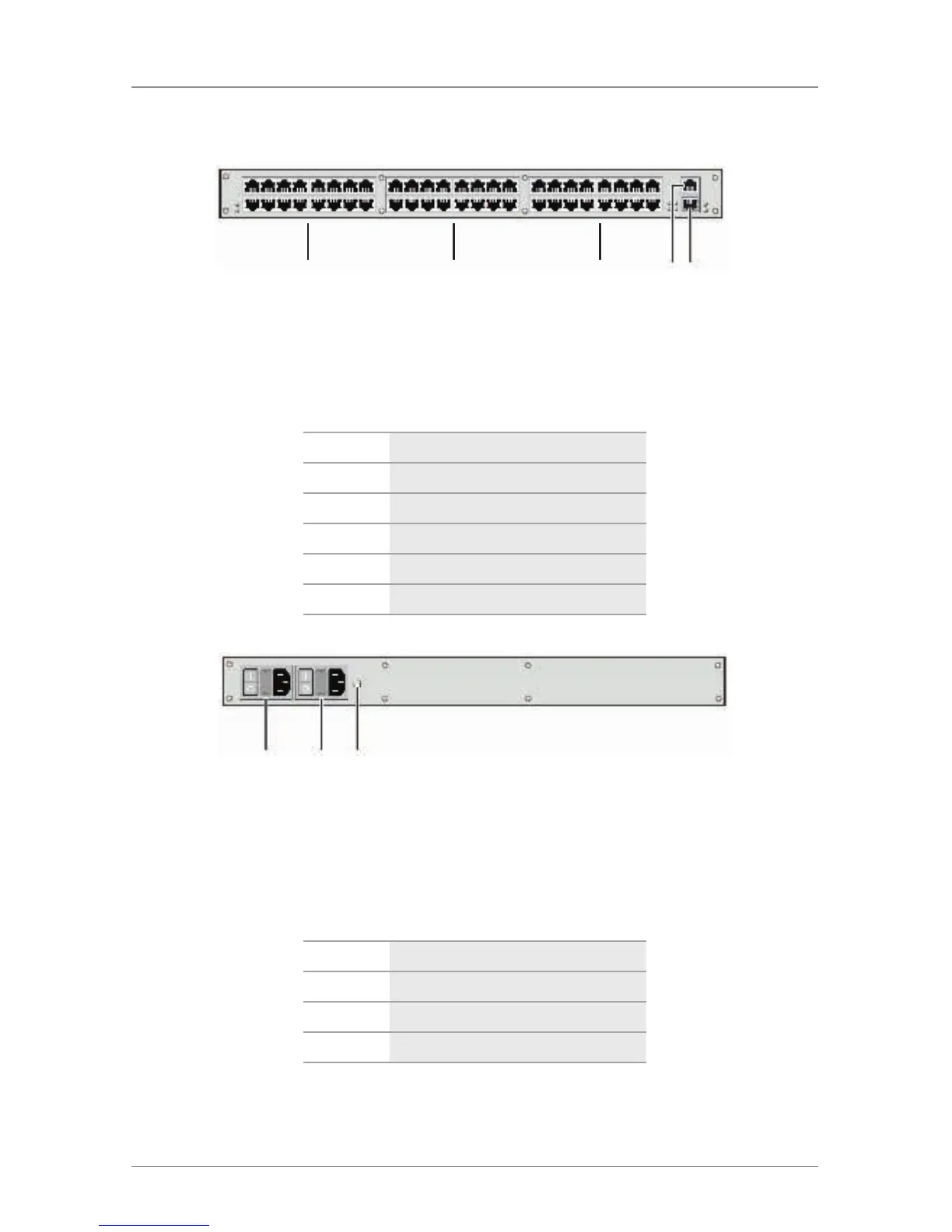

Figure 2-16. Front view, ACXC48.
Table 2-18. ACXC48 front-panel
components.
Number Component
1 I/O ports 1–16 (CATx)
2 I/O ports 17–32 (CATx)
3 I/O ports 33–48 (CATx)
4 Serial connection (RJ-45)
5 Network connection (RJ-45)
1 2 3
Figure 2-17. Back view, ACXC48.
Table 2-19. ACXC48 back-panel
components.
Number Component
1 Power supply unit 1
2 Power supply unit 2
3 Grounding
