Page 169
724-746-5500 | blackbox.com
Chapter 4: Configuration
General Preparation
1. Define a Master Matrix. All further matrices will be configured as Sub Matrices
in the configuration process.
2. Ensure that the Tie Lines will only be connected after finishing the configuration.
OSD
• Select Configuration > EXT Units in the main menu of the master matrix.

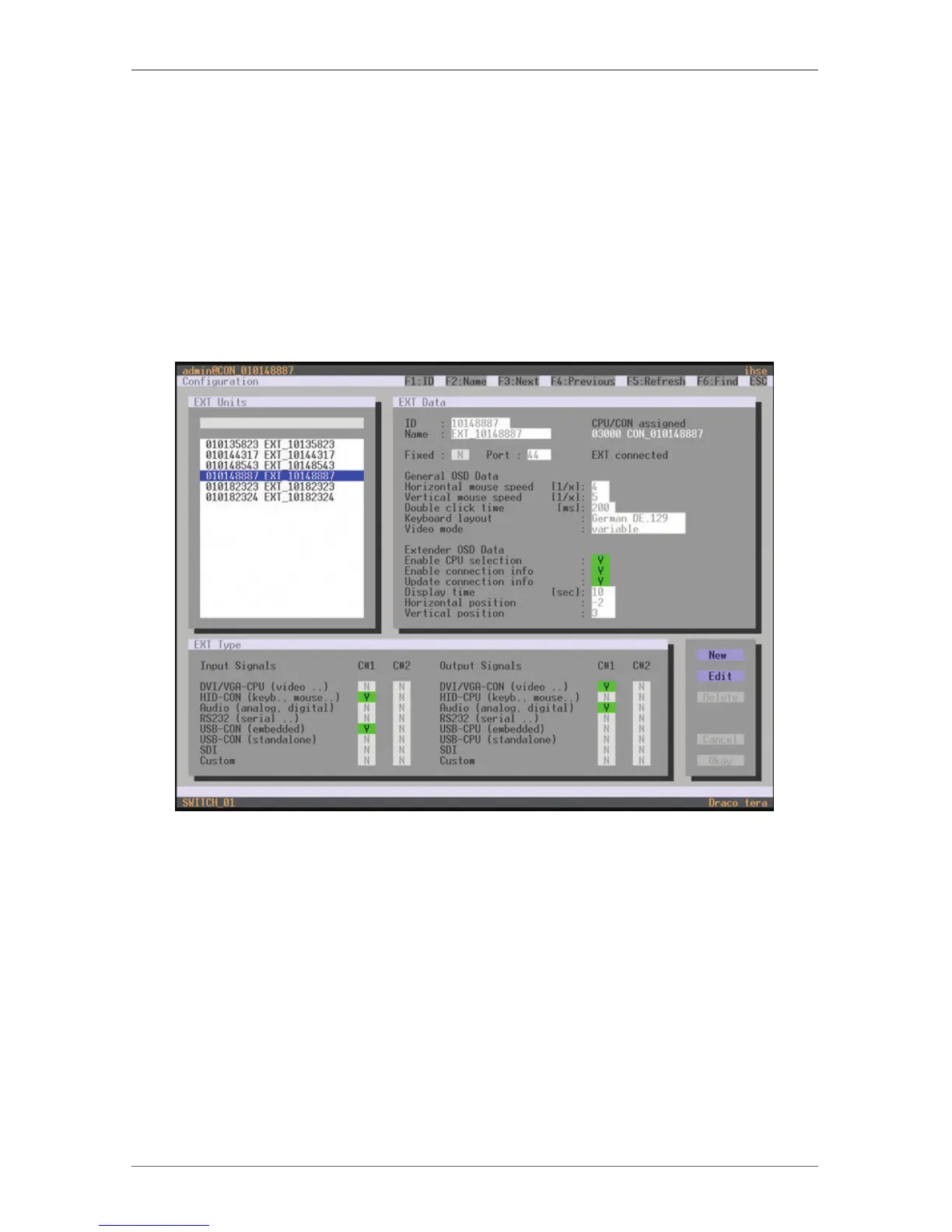

Figure 4-86. Menu configuration—EXT units.
1. Press the “New” button. A new Extender Unit will be created that is needed
for the connection of Tie Lines.
2. Enter an appropriate extender name into the Name field.
3. Enter a port number into the Port field according to the required connection of
the Tie Line.
4. If the Tie Line should be directed from the Sub to the Master, set the Master/
Slave CON option to Y (C#1) in the Input Signals column. If the Tie Line should
be directed from the Sub to the Master, set the Master/Slave CPU option to Y
(C#1) in the Output Signals column.
