Chapter 5: Operation

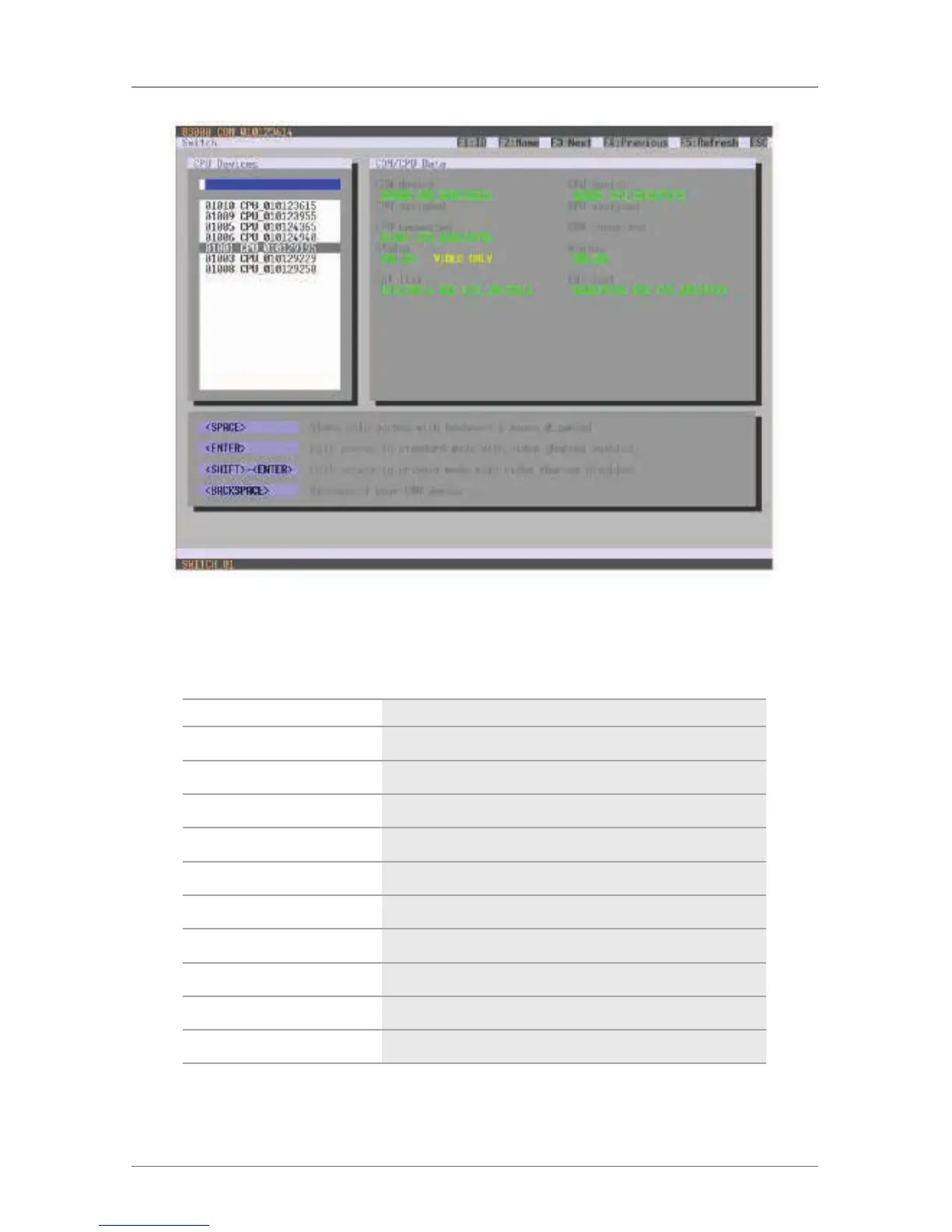

Figure 5-2. Menu Switch screen.
The following information is shown in this menu:
Table 5-1 Menu switch.
Field Description
CON device Assigned physical extender unit (CON unit)
CON assigned Virtual CON device that is assigned to the real CON device
CPU connected Currently connected CPU device
CON status Current connection status (CON device)
EXT list LIst of all available physical extender units (CON units)
CPU device Assigned physical extender unit (CPU unit)
CPU assigned Real CPU device that is assigned to a virtual CPU device
CON connected Currenlty connected CON device
CPU status Current connection status (CPU device)
EXT list List of all available extender units (CPU units)
